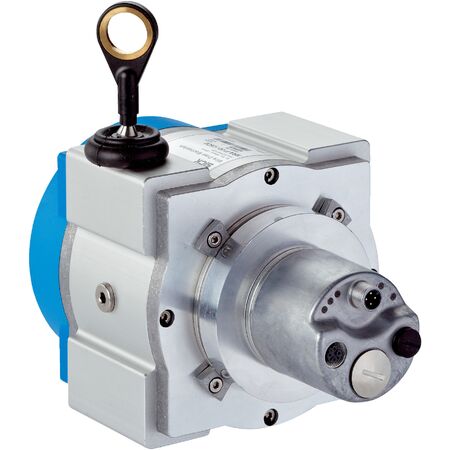

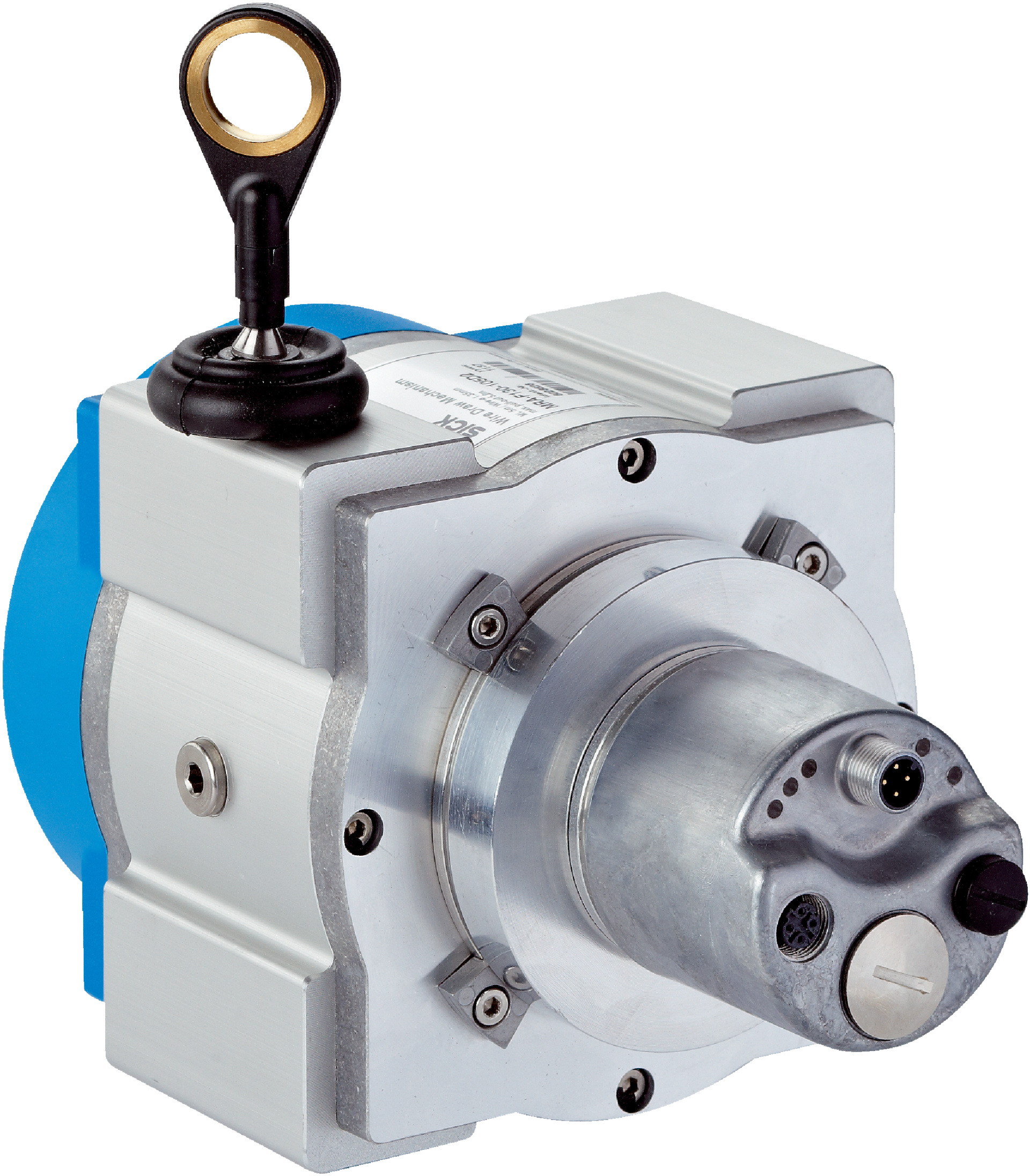

Wire Draw Encoder BTF13-N1BM0599 | 0.001 mm Resolution | 5 m Measurement Range | PROFINET Communication | by SICK
The Wire Draw Encoder BTF13-N1BM0599 offers precise linear measurement with a remarkable resolution of 0.001 mm and a measurement range of up to 5 meters. Designed for industrial automation, this encoder features high repeatability and linearity, making it ideal for safety monitoring and position feedback in manufacturing processes. With robust IP64/IP67 protection and a long life wire draw mechanism, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.001 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: PROFINET
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector 1x M12 4-pin axial, Female connector 2x M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 15 N to 20 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 70 m/s²
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 3 kg
Key Features
- Absolute encoder with high resolution of 0.001 mm
- Measurement range up to 5 meters
- High repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFINET communication interface
- Robust aluminum and plastic housing with IP64/IP67 protection
- Spring return force between 15 N and 20 N
- Operating temperature range from –30 °C to +70 °C
- Long life wire draw mechanism with approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with PROFINET communication and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise linear measurement
- Safety-related monitoring in machinery
- Position feedback in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-N1BM0599 wire draw sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
