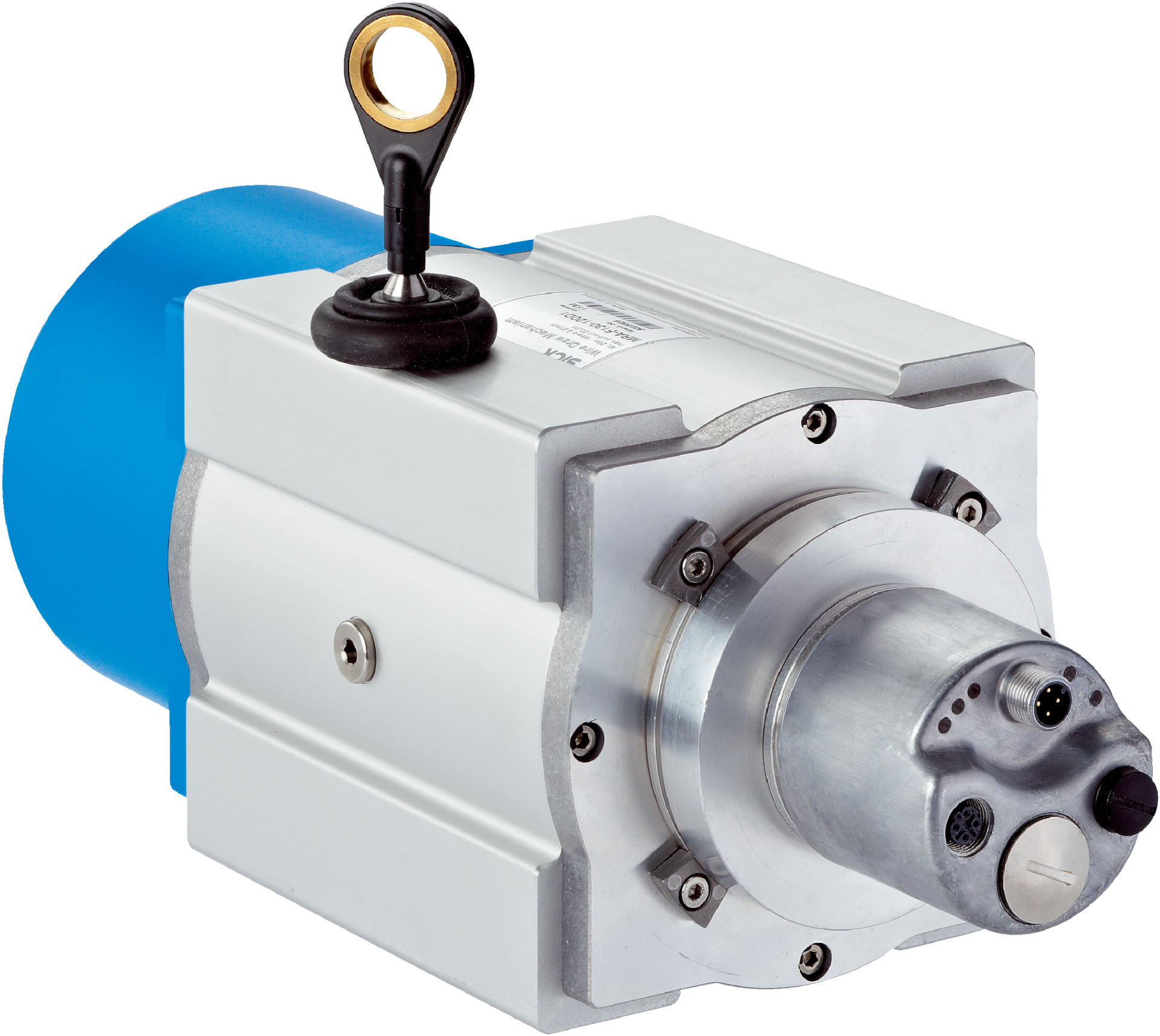

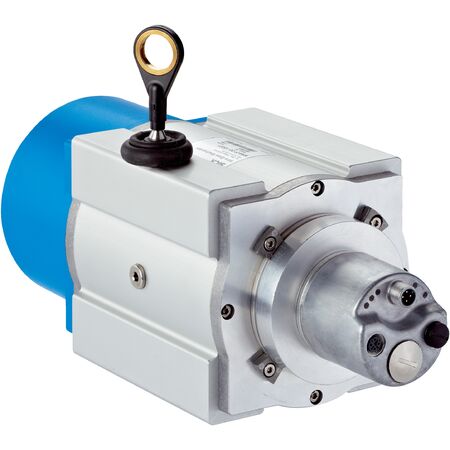

Wire Draw Encoder BTF13-N1BM2099 | PROFINET Communication | 20m Measurement Range | 0.001mm Resolution | by SICK
The Wire Draw Encoder BTF13-N1BM2099 is designed for precise length measurement in industrial automation, featuring a measurement range of up to 20 meters and a high resolution of 0.001 mm. With PROFINET communication and robust IP64/IP67 protection, it ensures reliable performance in safety-critical applications, making it ideal for process control systems and environments requiring high reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 20 m
- Resolution: 0.001 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: PROFINET
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded 1.4401 stainless steel V4A
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 30 m/s²
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30°C to +70°C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.2 kg
Key Features
- Absolute encoder with PROFINET communication interface
- High measurement range up to 20 meters
- High resolution of 0.001 mm with excellent repeatability and linearity
- Robust aluminum and plastic housing with IP64/IP67 protection
- Spring return force between 10 N and 20 N
- Long wire draw mechanism life of approximately 1,000,000 cycles
- Operating temperature range from -30°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation equipment and PROFINET network setup to ensure safety and optimal performance.
Applications
- Industrial automation for precise length measurement
- Process control systems requiring absolute encoder feedback
- Safety-related applications with high reliability requirements
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 3 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BTF13-N1BM2099 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
