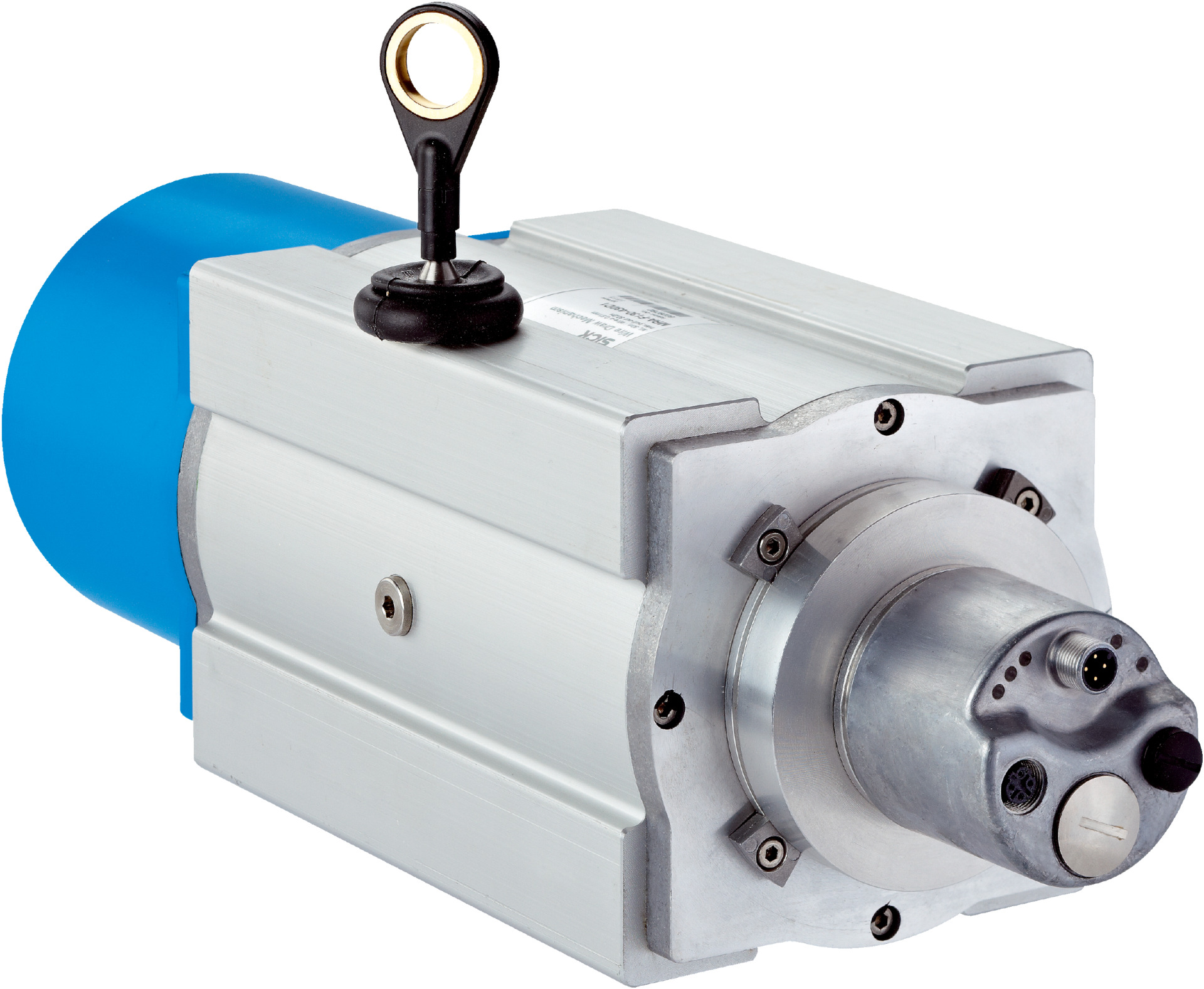

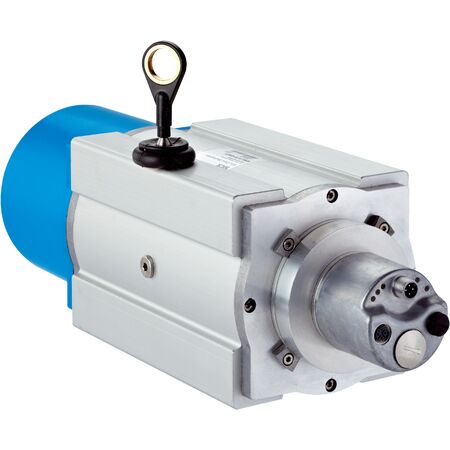

Wire Draw Encoder BTF13-N1BM3099 | 30m Measurement Range | 0.001mm Resolution | PROFINET Interface | by SICK
The Wire Draw Encoder BTF13-N1BM3099 offers a measurement range of up to 30 meters with an impressive resolution of 0.001 mm, making it ideal for precise length measurement in industrial automation. Designed for safety-related monitoring and process control, this encoder features a robust design and operates efficiently within a temperature range of -30 °C to +70 °C, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Measurement range: 0 m to 30 m
- Encoder type: Absolute encoders
- Resolution: 0.001 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: PROFINET
- Connection type: Male connector 1x M12 4-pin axial, Female connector 2x M12 4-pin axial
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel 1.4401 V4A
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Length of wire pulled out per revolution: 332.4 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 15 m/s²
- Operating speed: 6 m/s
- Mounted encoder model: AFM60 PROFINET
- Mounted mechanic model: MRA-F130-130D1
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: -30 °C to +70 °C
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.4 kg
Key Features
- Measurement range up to 30 m
- High resolution of 0.001 mm
- Repeatability and linearity within ±2 mm
- Hysteresis ≤ 5 mm
- PROFINET communication interface
- Programmable and configurable
- Robust aluminum and plastic housing
- Spring return force between 10 N and 20 N
- Operating speed up to 6 m/s
- IP64 enclosure rating, IP67 for mounted mechanic
- Operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation equipment and PROFINET network setup to ensure safety and optimal performance.
Applications
- Industrial automation for precise length measurement
- Safety-related monitoring in machinery
- Process control requiring absolute encoder feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements
- Low power consumption of ≤ 3 W minimizes energy use
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-N1BM3099 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
