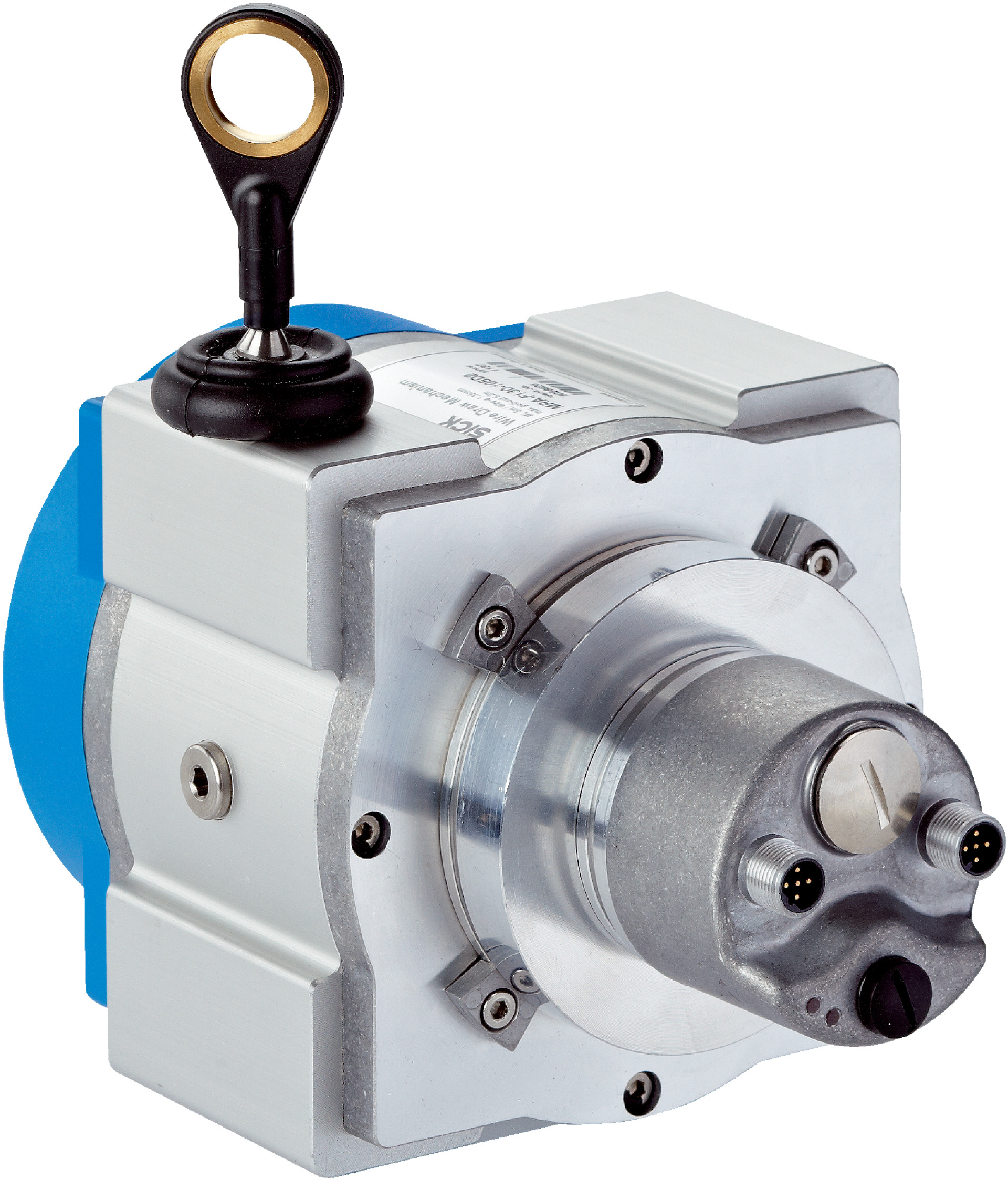

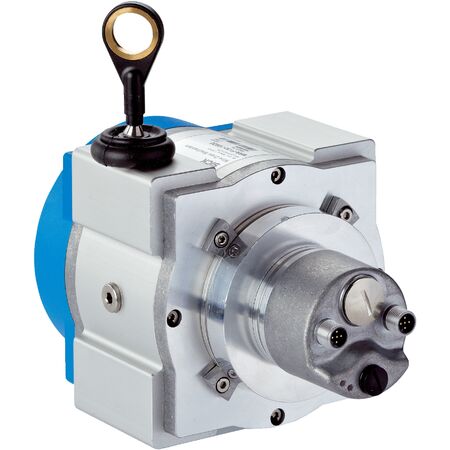

Wire Draw Encoder BTF13-P1BM0525 | 0.04 mm Resolution | 5 m Measurement Range | IP64/IP67 Rated | by SICK
The Wire Draw Encoder BTF13-P1BM0525 offers precise linear position measurement with a high resolution of 0.04 mm and a measurement range of up to 5 meters. Designed for industrial automation and safety applications, it features a robust aluminum and plastic housing with IP64/IP67 protection, ensuring reliability in demanding environments. With low power consumption and a long service life, this encoder is perfect for machine control systems utilizing PROFIBUS DP communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.04 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: PROFIBUS DP
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: 2x Male M12 5-pin axial connectors, 1x Female M12 5-pin axial connector
- Measuring wire diameter: 1.35 mm
- Spring return force: 15 N to 20 N
- Operating temperature range: -10 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- MTTFD: 60 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.08 kg
Key Features
- Absolute encoder with high resolution of 0.04 mm
- Measurement range up to 5 meters
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFIBUS DP interface
- Robust aluminum and plastic housing with IP64/IP67 protection
- Highly flexible stainless steel measuring wire
- Long service life with up to 1,000,000 cycles
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and safety-related encoder integration to ensure compliance and optimal performance.
Applications
- Industrial automation for precise linear position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine control systems with PROFIBUS DP communication
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long service life minimize waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-P1BM0525 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety applications requiring precise linear measurement.
