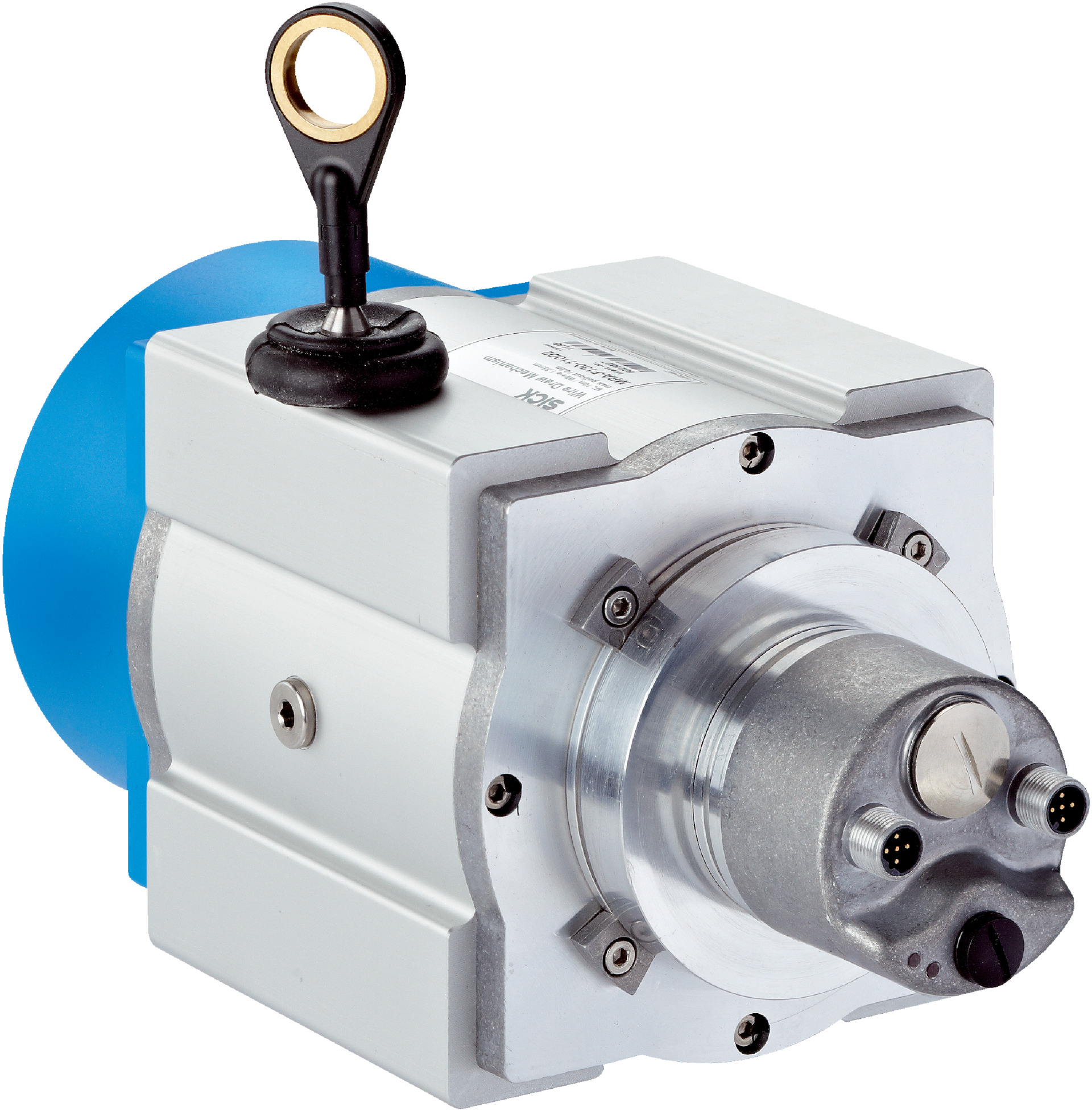

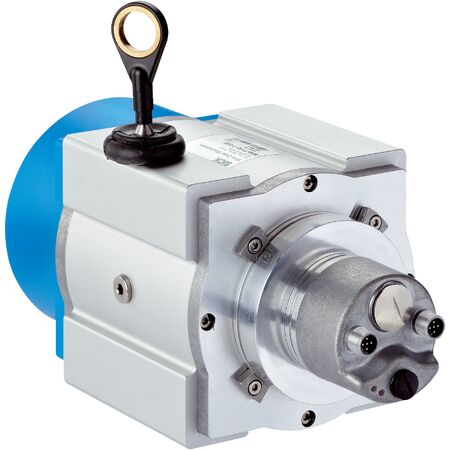

Wire Draw Encoder BTF13-P1BM1025 | 0.04 mm Resolution | 10 m Measurement Range | IP64/IP67 Rated | by SICK
The Wire Draw Encoder BTF13-P1BM1025 offers precise length measurement with a high resolution of 0.04 mm and a measurement range of up to 10 m. Ideal for industrial automation and safety-related applications, this encoder features robust IP64/IP67 protection and a long-lasting wire draw mechanism rated for approximately 1,000,000 cycles, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution (wire draw + encoder): 0.04 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: PROFIBUS DP
- Programmable/configurable: Yes
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Length of wire pulled out per revolution: 332.4 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 40 m/s²
- Operating speed: 8 m/s
- Mounted encoder model: A3M60, A3M60B-S1PB013X13
- Mounted mechanic model: MRA-F130-110D2
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: –10 °C to +70 °C
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.78 kg
Key Features
- Absolute encoder with high resolution of 0.04 mm
- Measurement range up to 10 m
- Repeatability ≤ 1.5 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFIBUS DP communication interface
- Robust aluminum and plastic housing with IP64/IP67 protection
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from –10 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and industrial encoder setup to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-P1BM1025 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
