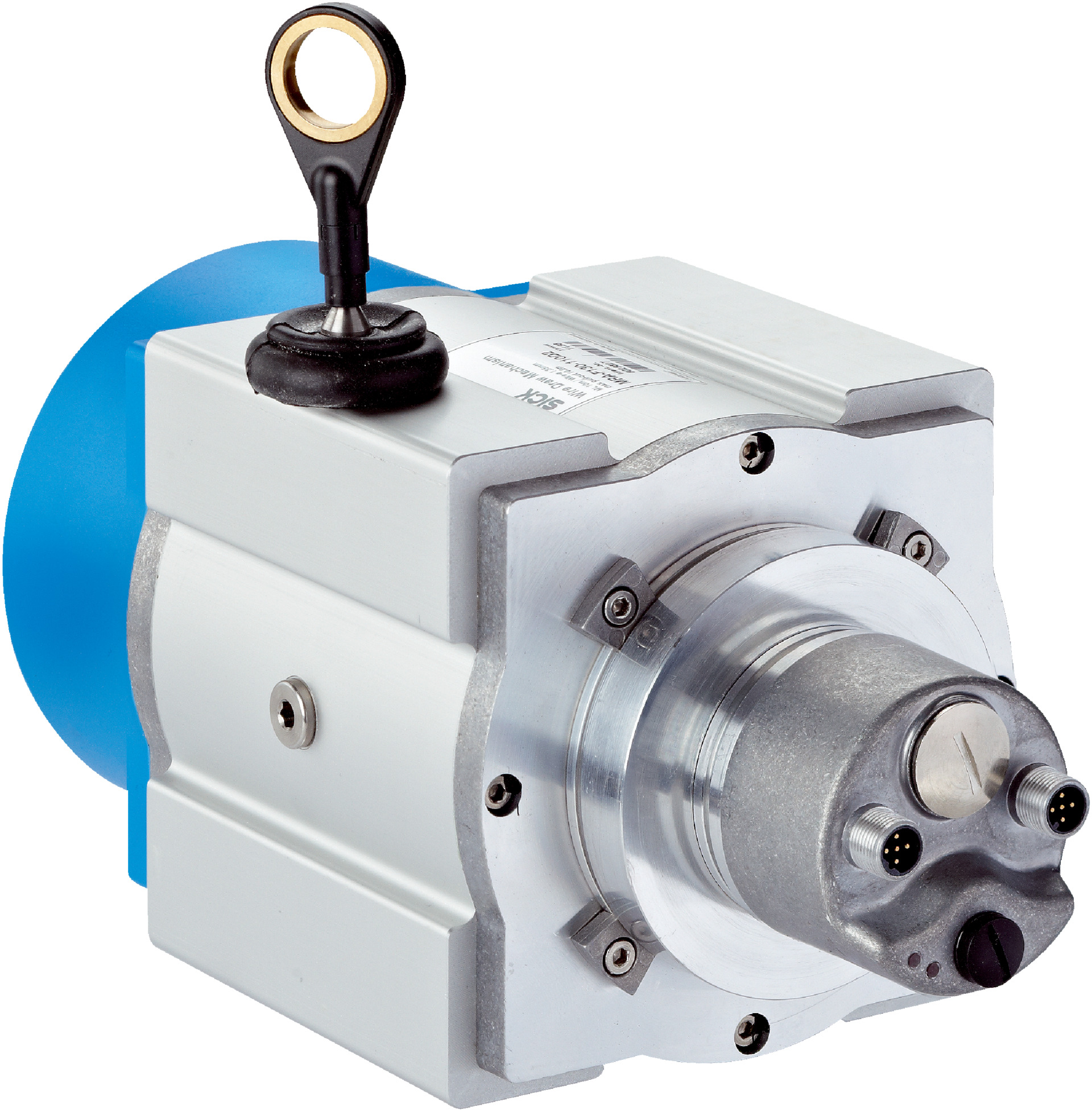

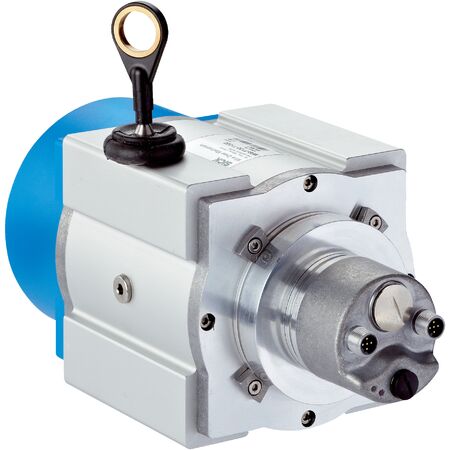

Wire Draw Encoder BTF13-P1BM10S10 | 10m Measurement Range | 0.04mm Resolution | IP64 Enclosure | by SICK
The Wire Draw Encoder BTF13-P1BM10S10 is designed for precise linear position measurement in industrial automation. With a measurement range of up to 10 meters and a resolution of 0.04 mm, it ensures high accuracy and repeatability. Ideal for machine tool monitoring and safety-critical applications, this encoder features a robust design and low power consumption, making it a reliable choice for various automation needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.04 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: PROFIBUS DP / DPV0
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: –10 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.78 kg
Key Features
- Wire draw mechanism MRA-F130-S0001 with special spring for increased lifetime
- Spring return force between 8.5 N and 11.5 N
- Absolute encoder with resolution of 0.04 mm
- Measurement range up to 10 m
- Repeatability ≤ 1.5 mm and linearity ≤ ± 2 mm
- Communication via PROFIBUS DP / DPV0
- Programmable and configurable interface
- Robust aluminum anodised and plastic housing
- IP64 enclosure rating, mounted mechanic IP67
- Operating temperature range from –10 °C to +70 °C
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS systems and electrical wiring standards to ensure safety and compliance.
Applications
- Industrial automation for precise linear position measurement
- Machine tool monitoring and control
- Material handling and conveyor systems
- Safety-related applications requiring high reliability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption minimizes energy use
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-P1BM10S10 wire draw encoder is available for immediate purchase, ideal for industrial automation and safety-critical measurement applications.
