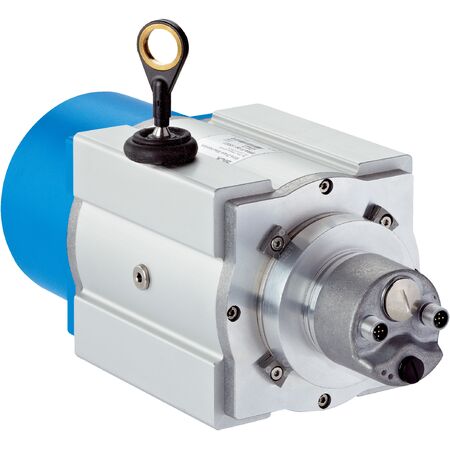

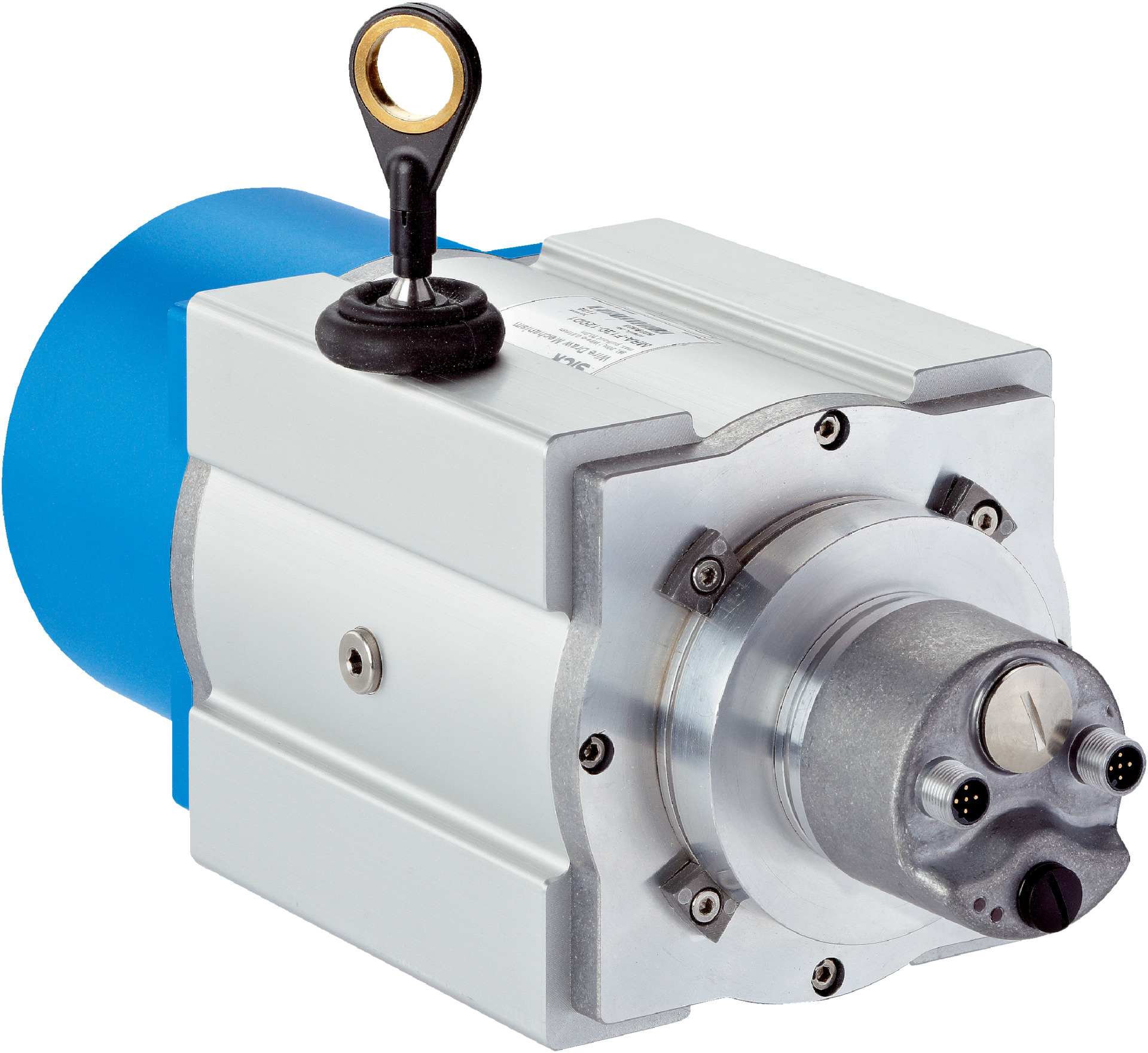

Wire Draw Encoder BTF13-P1BM2025 | 20m Measurement Range | 0.04mm Resolution | IP64/IP67 Rated | by SICK
The Wire Draw Encoder BTF13-P1BM2025 is designed for precise wire length measurement in industrial automation. With a measurement range of up to 20 meters and a high resolution of 0.04 mm, it ensures reliable feedback for machine monitoring and control systems. Built for durability, it features an IP64/IP67 rated housing and a long-life wire draw mechanism, making it ideal for safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 20 m
- Encoder type: Absolute encoders
- Resolution: 0.04 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: PROFIBUS DP
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 10 N to 20 N
- Operating temperature range: -10 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Wire acceleration: 30 m/s²
- Operating speed: 6 m/s
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.28 kg
Key Features
- Absolute encoder with high resolution of 0.04 mm
- Measurement range up to 20 meters
- Repeatability ≤ 2 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFIBUS DP communication interface
- Robust aluminum and plastic housing with IP64/IP67 protection
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and industrial safety standards to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-P1BM2025 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
