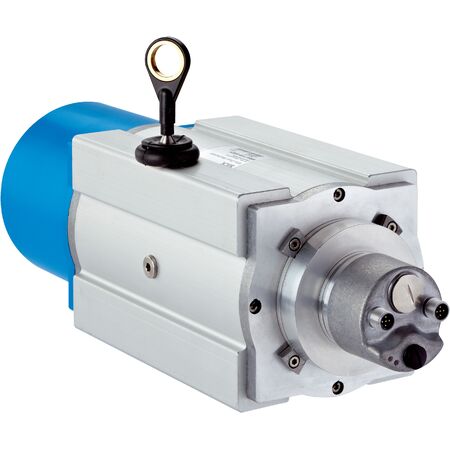

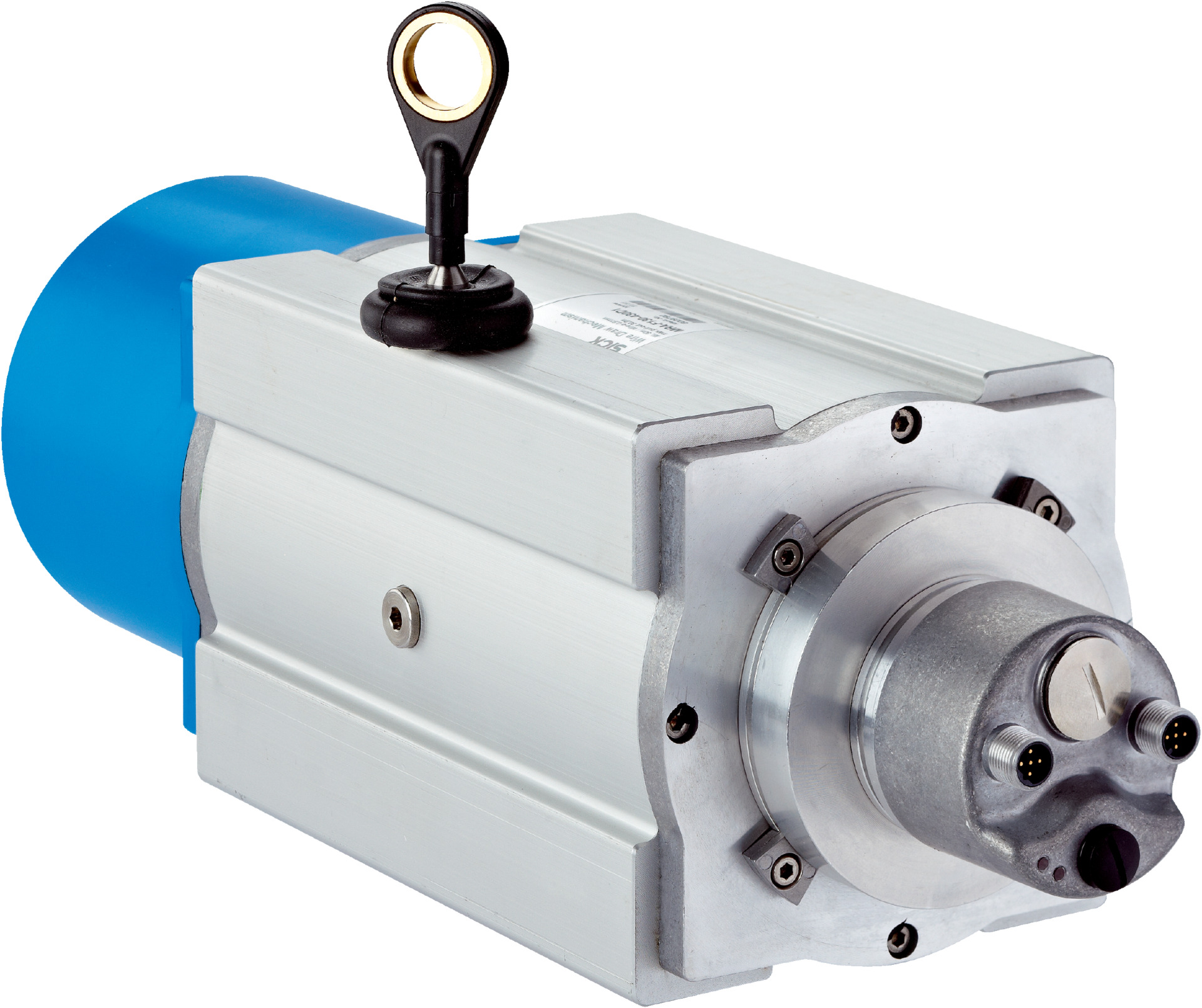

Wire Draw Encoder BTF13-P1BM3025 | 30m Measurement Range | 0.04mm Resolution | IP64/IP67 Rated | by SICK
The Wire Draw Encoder BTF13-P1BM3025 offers a measurement range of up to 30 meters with a high resolution of 0.04 mm, making it ideal for industrial automation and safety-related applications. With its robust design and IP64/IP67 protection, this encoder ensures reliable performance in various environments, while the PROFIBUS DP interface allows for easy configuration and integration into process control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 30 m
- Resolution: 0.04 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: PROFIBUS DP
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Measuring wire material: Highly flexible stranded 1.4401 stainless steel V4A
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Wire acceleration: 15 m/s²
- Operating speed: 6 m/s
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -10 °C to +70 °C
- MTTFD: 60 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.48 kg
Key Features
- Measurement range up to 30 m with high resolution of 0.04 mm
- Absolute encoder for accurate position feedback
- Programmable and configurable via PROFIBUS DP interface
- Robust aluminum and plastic housing with IP64/IP67 protection
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Spring return force between 10 N and 20 N
- Operating temperature range from -10 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and electrical safety standards to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Process control systems with PROFIBUS DP communication
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.5 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
