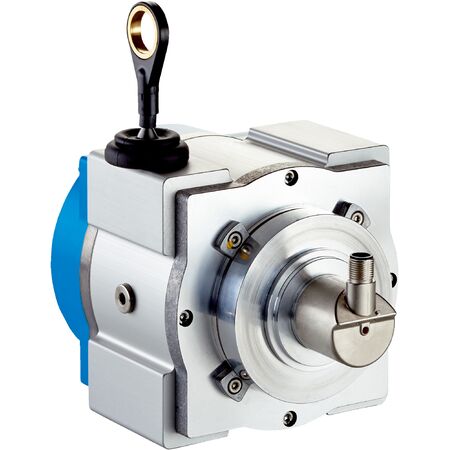

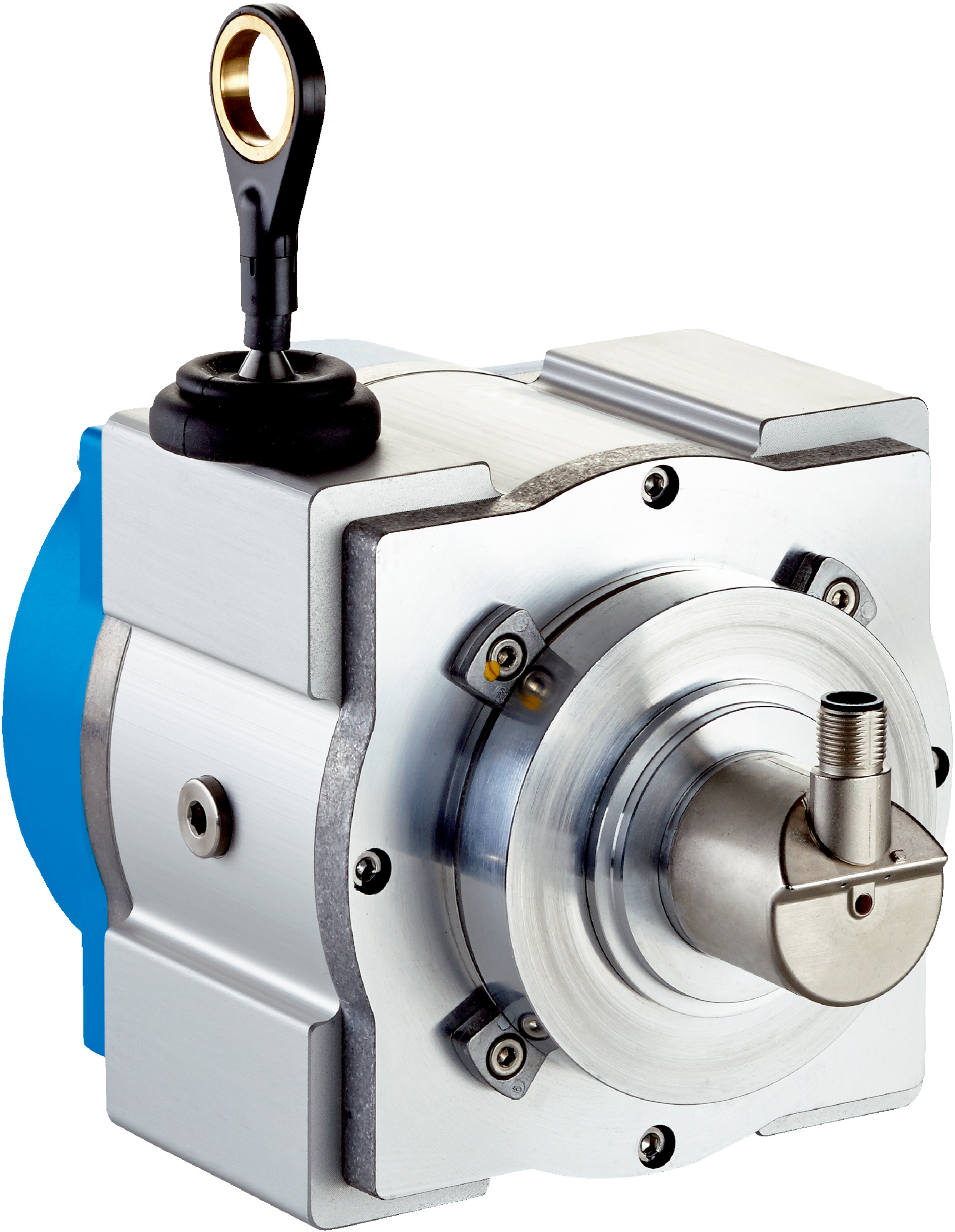

Wire Draw Encoder BTF13-Q1RM0562 | IO-Link V1.1 | 0.02 mm Resolution | IP64 to IP67 Protection | by SICK
The Wire Draw Encoder BTF13-Q1RM0562 offers precise linear measurement with a high resolution of 0.02 mm and repeatability of ≤ 1 mm. Designed for industrial automation, it features an IO-Link V1.1 communication interface and robust IP64 to IP67 protection, making it ideal for safety-related applications and machine monitoring. With a flexible stainless steel measuring wire and a wide operating temperature range from -20 °C to +70 °C, this encoder ensures reliability and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire diameter: 1.35 mm
- Spring return force: 15 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 70 m/s²
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Operating temperature range: -20 °C to +70 °C
- MTTFD: 240 years (EN ISO 13849-1)
- Dimensions (H x L x W): 130mm x 200mm x 130mm
- Weight: 2.92 kg
Key Features
- Absolute encoder with IO-Link V1.1 communication interface
- High resolution of 0.02 mm with repeatability ≤ 1 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Highly flexible stainless steel measuring wire with 5.2 m actual draw length
- Spring return force between 15 N and 20 N
- Operating temperature range from -20 °C to +70 °C
- Power consumption ≤ 1.5 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise linear measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-Q1RM0562 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
