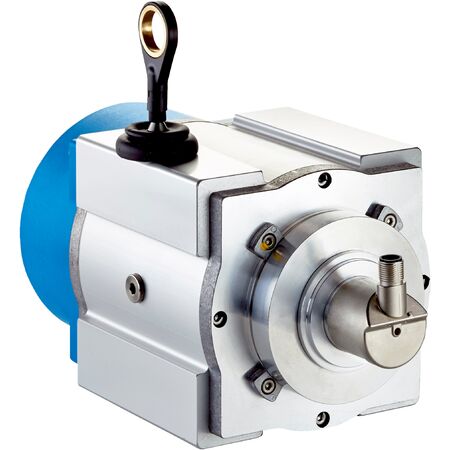

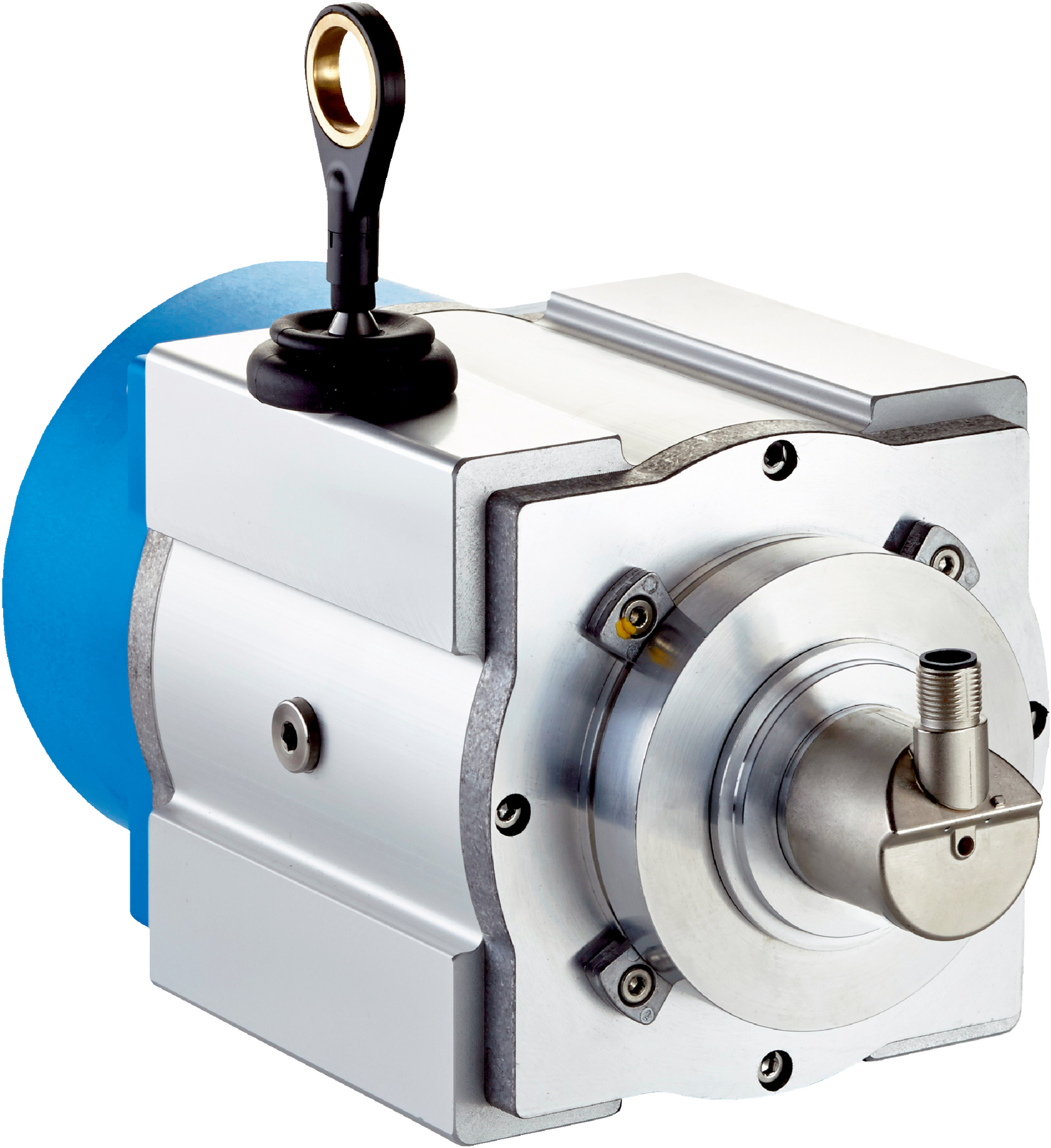

Wire Draw Encoder BTF13-Q1RM1062 | 10m Measurement Range | 0.02mm Resolution | IP64 to IP67 Protection | by SICK
The Wire Draw Encoder BTF13-Q1RM1062 offers a measurement range of up to 10 meters with a high resolution of 0.02 mm, making it ideal for industrial automation and safety-related applications. Designed for precise wire length measurement, it features robust aluminum housing and an IP64 to IP67 rating for enhanced durability, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Resolution: 0.02 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Housing material: Aluminum (anodised), plastic
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: –20 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.62 kg
Key Features
- Measurement range up to 10 m
- High resolution of 0.02 mm
- Repeatability ≤ 1.5 mm and linearity ≤ ± 2 mm
- IO-Link communication interface with programmable configuration
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Spring return force between 10 N and 20 N
- Long service life with typically 1,000,000 cycles
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration of the IO-Link interface and mechanical mounting.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable position feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 1.5 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-Q1RM1062 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
