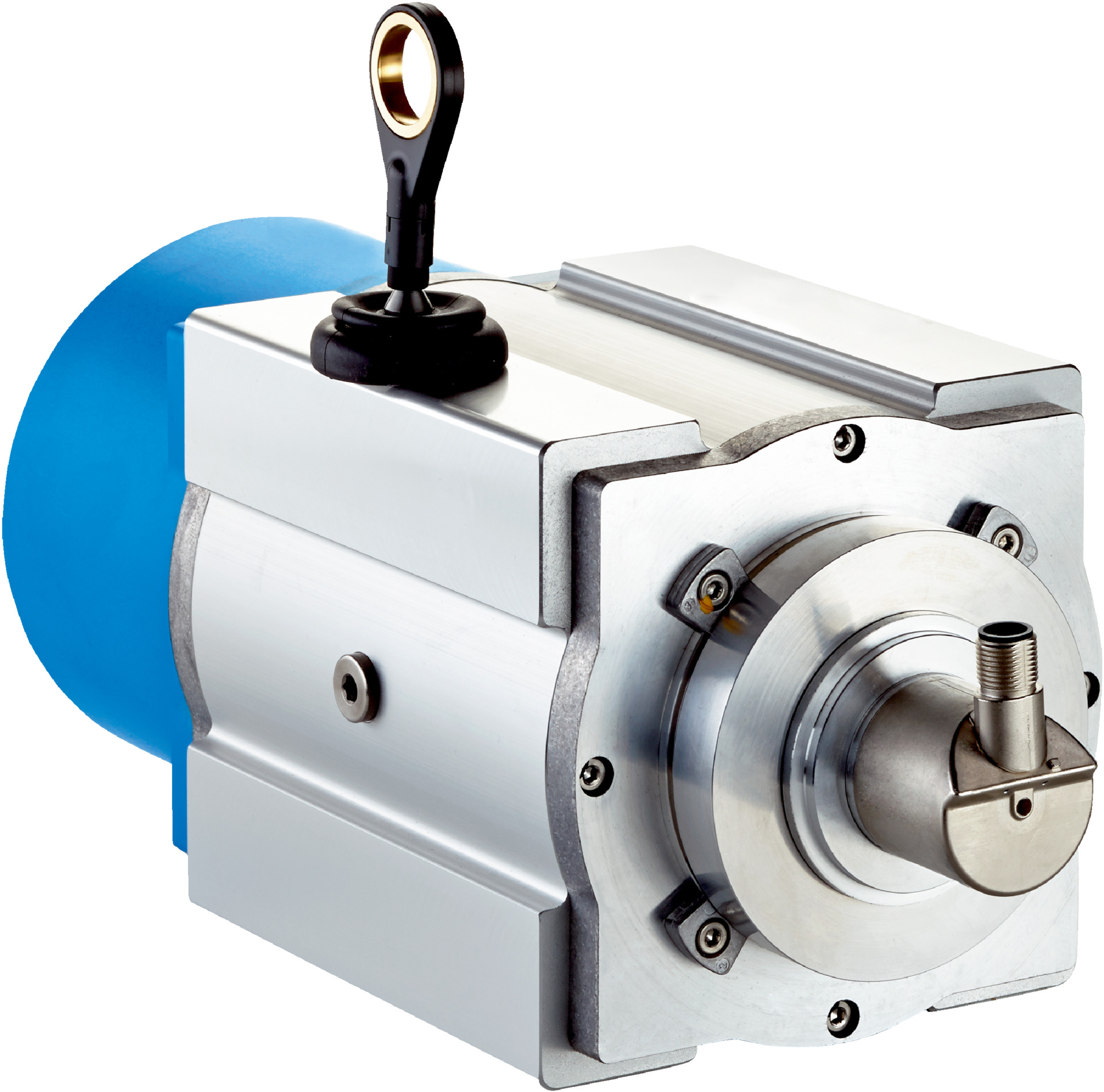

Wire Draw Encoder BTF13-Q1RM1562 | 15m Measurement Range | 0.02mm Resolution | IP64 to IP67 Protection | by SICK
The Wire Draw Encoder BTF13-Q1RM1562 offers a high measurement range of up to 15 meters with an impressive resolution of 0.02 mm, making it perfect for industrial automation and precise wire length measurement. Designed for reliability, it features a robust aluminum and plastic housing with IP64 to IP67 protection, ensuring durability in various environments. Ideal for safety-related applications, this encoder is built to last with a wire draw mechanism rated for approximately 1,000,000 cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 15 m
- Resolution: 0.02 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Mounted encoder model: AHM36 IO-Link Advanced
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Operating temperature range: -20 °C to +70 °C
- MTTFD: 240 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 3.62 kg
Key Features
- Absolute encoder with IO-Link V1.1 communication interface
- High measurement range up to 15 m with 0.02 mm resolution
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from -20 °C to +70 °C
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial safety standards to ensure proper integration and compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-Q1RM1562 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
