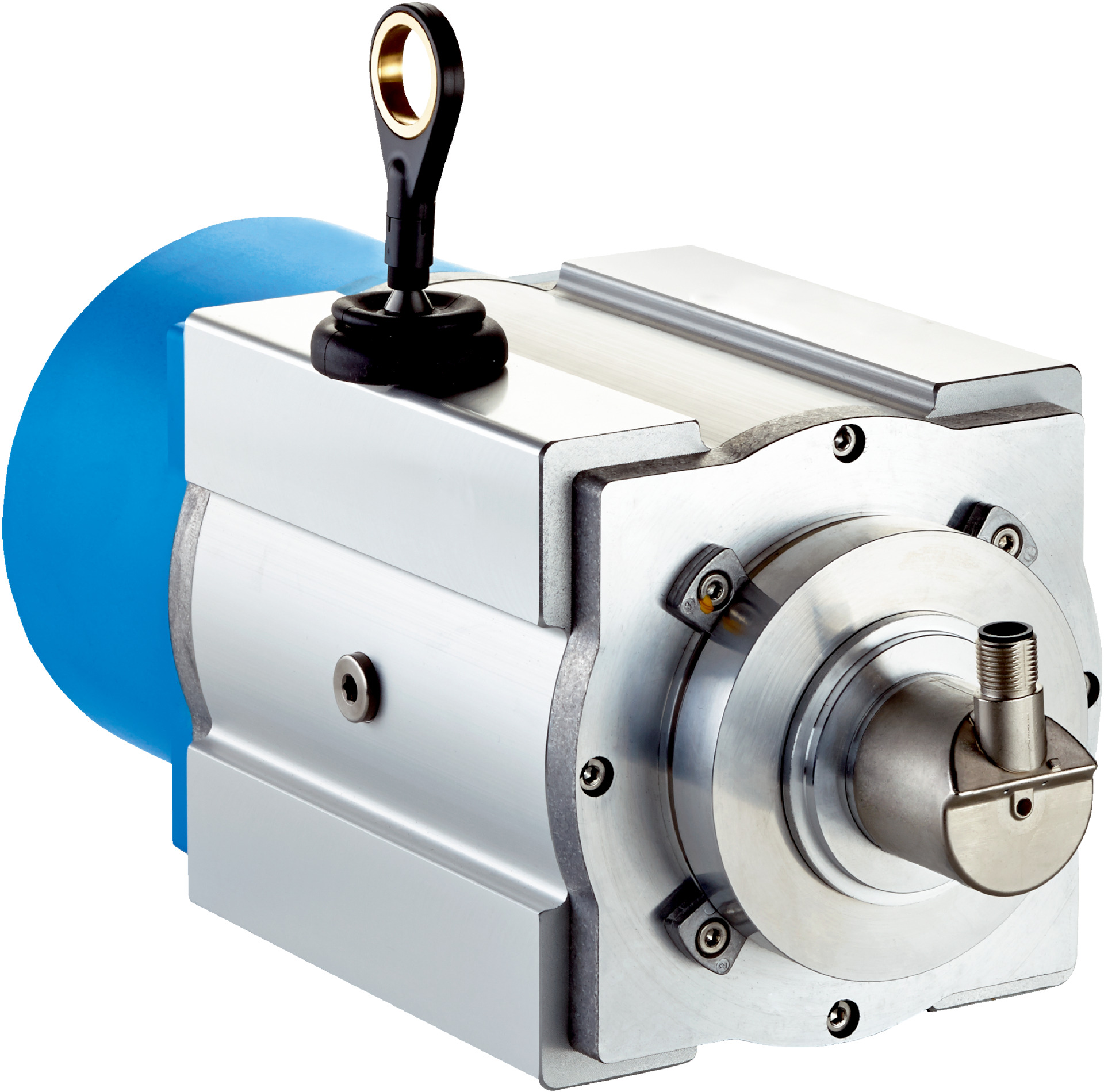

Wire Draw Encoder BTF13-Q1RM2062 | IO-Link V1.1 | 0.02 mm Resolution | IP64 to IP67 Protection | by SICK
The Wire Draw Encoder BTF13-Q1RM2062 offers precise wire length measurement with a high resolution of 0.02 mm and repeatability of ≤ 2 mm. Designed for industrial automation and safety applications, it features a robust aluminum and plastic housing with IP64 to IP67 protection, ensuring reliability in harsh environments. With a long measuring wire length of 20.2 m and low power consumption, this encoder is perfect for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 20 m
- Resolution: 0.02 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 30 m/s²
- Mounted encoder: AHM36 IO-Link Advanced
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Operating temperature range: -20 °C to +70 °C
- MTTFD: 240 years (EN ISO 13849-1)
- Dimensions (H x L x W): 130mm x 250mm x 130mm
- Weight: 5.12 kg
Key Features
- Absolute encoder with IO-Link V1.1 communication interface
- High resolution of 0.02 mm with repeatability ≤ 2 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Long measuring wire length of 20.2 m with high flexibility
- Spring return force between 10 N and 20 N
- Operating temperature range from -20 °C to +70 °C
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-Q1RM2062 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
