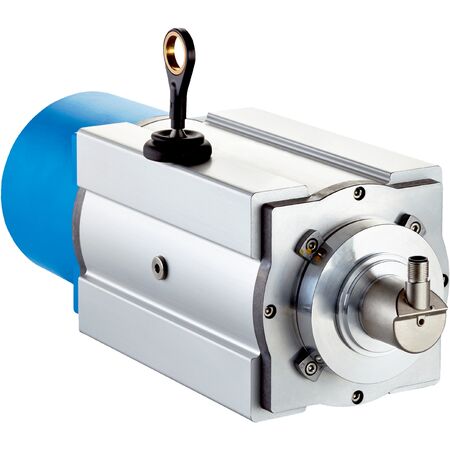

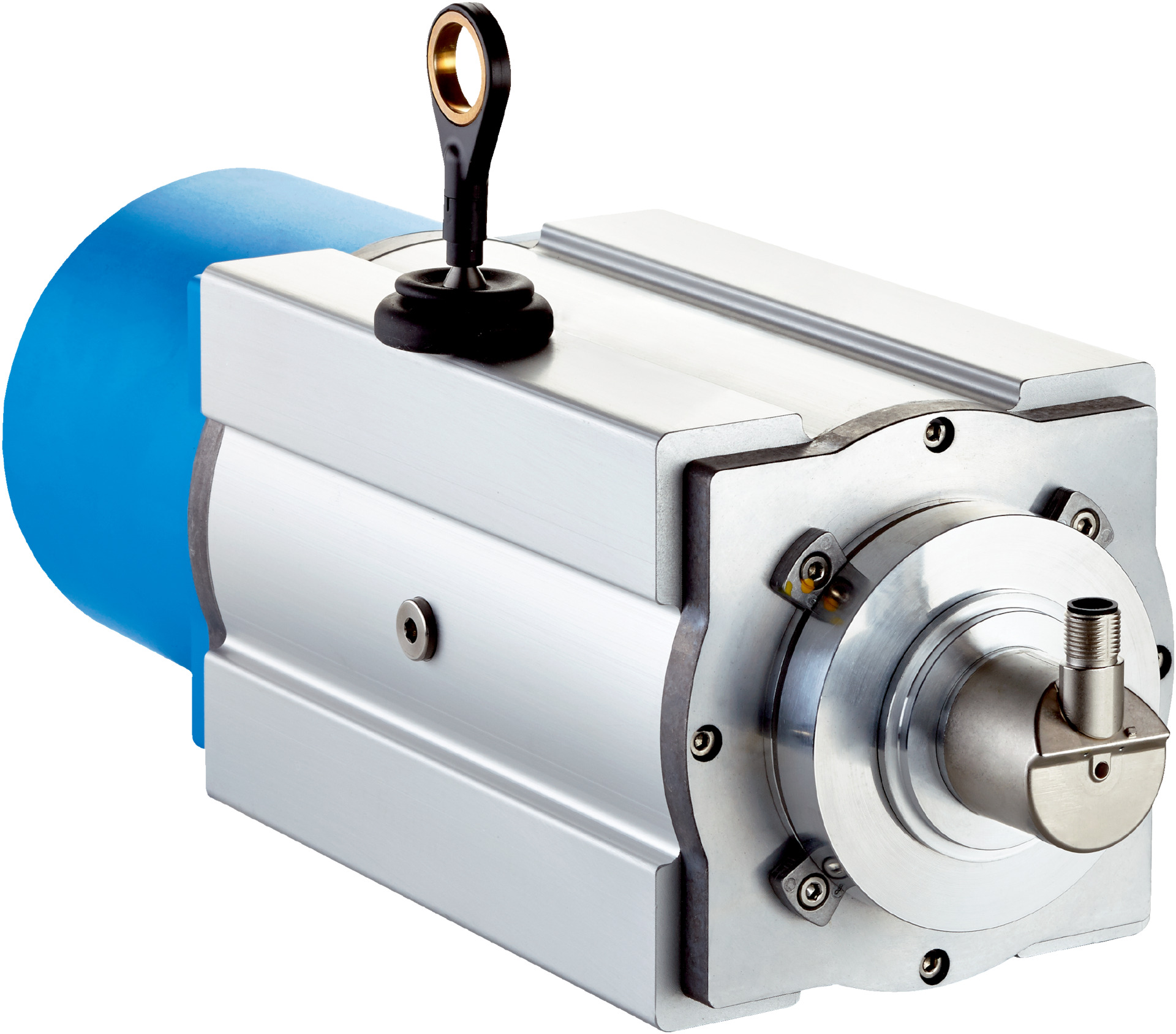

Wire Draw Encoder BTF13-Q1RM3062 | 30m Measurement Range | 0.02mm Resolution | IP64 to IP67 Protection | by SICK
The Wire Draw Encoder BTF13-Q1RM3062 offers a measurement range of up to 30 meters with a high resolution of 0.02 mm, making it ideal for industrial automation and safety applications. Designed for precise length measurement, it features robust aluminum and plastic housing with IP64 to IP67 protection, ensuring reliability in demanding environments. With a long life of typically 1,000,000 cycles, this encoder is perfect for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 30 m
- Resolution: 0.02 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Housing material: Anodised aluminum and plastic
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: -20 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.32 kg
Key Features
- Measurement range up to 30 m
- High resolution of 0.02 mm
- Repeatability ≤ 2 mm and linearity ≤ ± 2 mm
- IO-Link communication interface with programmable configuration
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration of the IO-Link interface and mechanical mounting.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK BTF13-Q1RM3062 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety applications requiring precise length measurement.
