Wire Draw Encoder BTF19-C1QM5033 | 50m Measurement Range | 0.03mm Resolution | IP67 Rated | by SICK

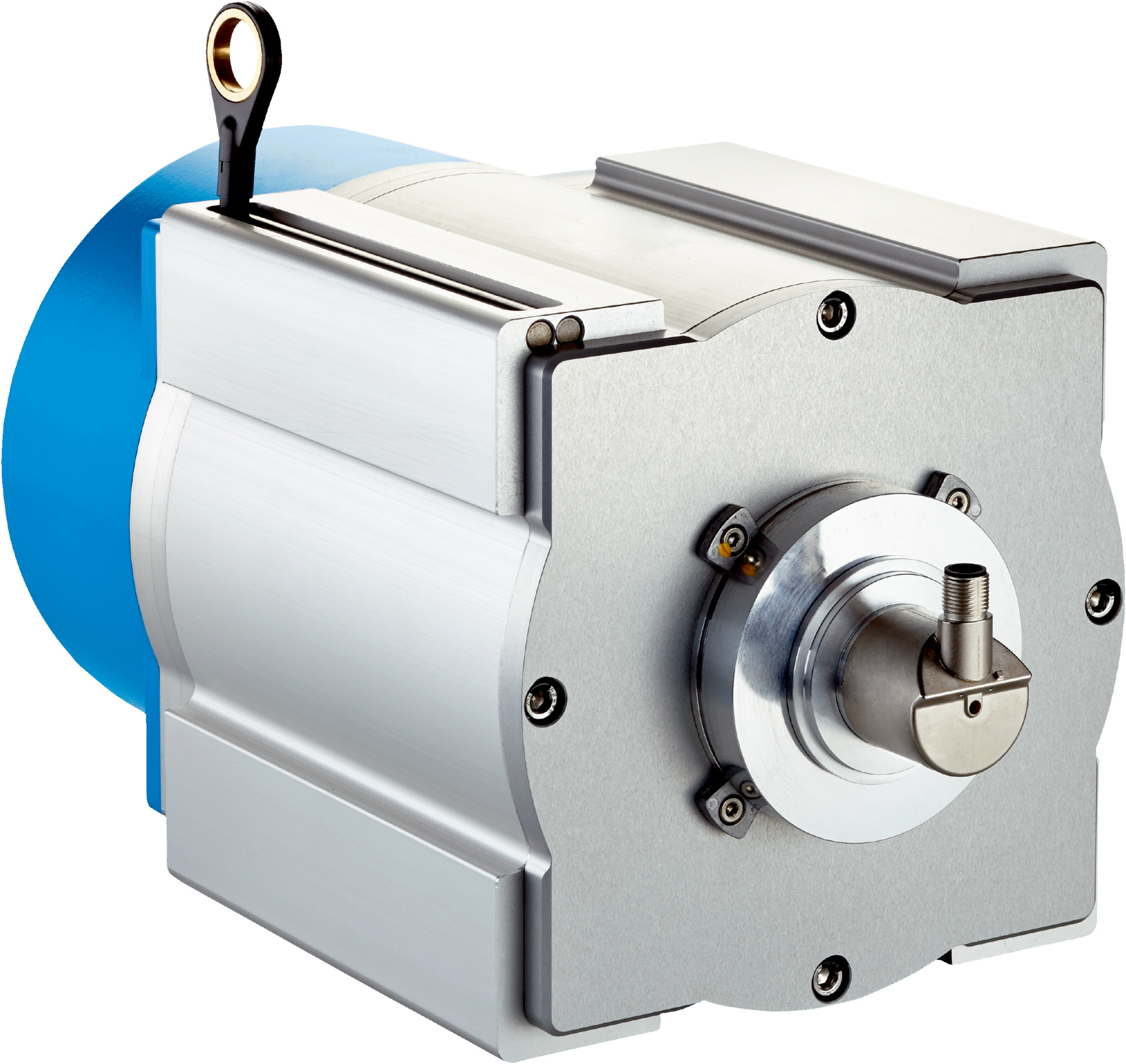

The Wire Draw Encoder BTF19-C1QM5033 offers a high measurement range of up to 50 meters and an impressive resolution of 0.03 mm, making it ideal for industrial automation and safety-related applications. With a robust aluminum housing and an IP67 rating, this encoder ensures reliable performance in challenging environments, providing precise position feedback for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 50 m
- Resolution: 0.03 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 18 N to 37 N
- Operating speed: 4 m/s
- Wire acceleration: 18 m/s²
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP31 (mechanic IP66, encoder IP67)
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 300mm x 400mm x 300mm
- Weight: 16.62 kg
Key Features
- Absolute encoder with CANopen communication interface
- High measurement range up to 50 meters
- High resolution of 0.03 mm with repeatability ≤ 5 mm
- Robust aluminum housing with anodized and nickel-plated finish
- Operating temperature range from -30 °C to +70 °C
- IP31 enclosure rating with IP66 for mounted mechanic and IP67 for encoder
- Spring return force between 18 N and 37 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and CANopen communication protocols to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable position feedback
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W reduces energy usage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF19-C1QM5033 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
