Wire Draw Encoder BTF19-P1BM5017 | 0.06 mm Resolution | 50 m Measurement Range | IP31 Rated | by SICK

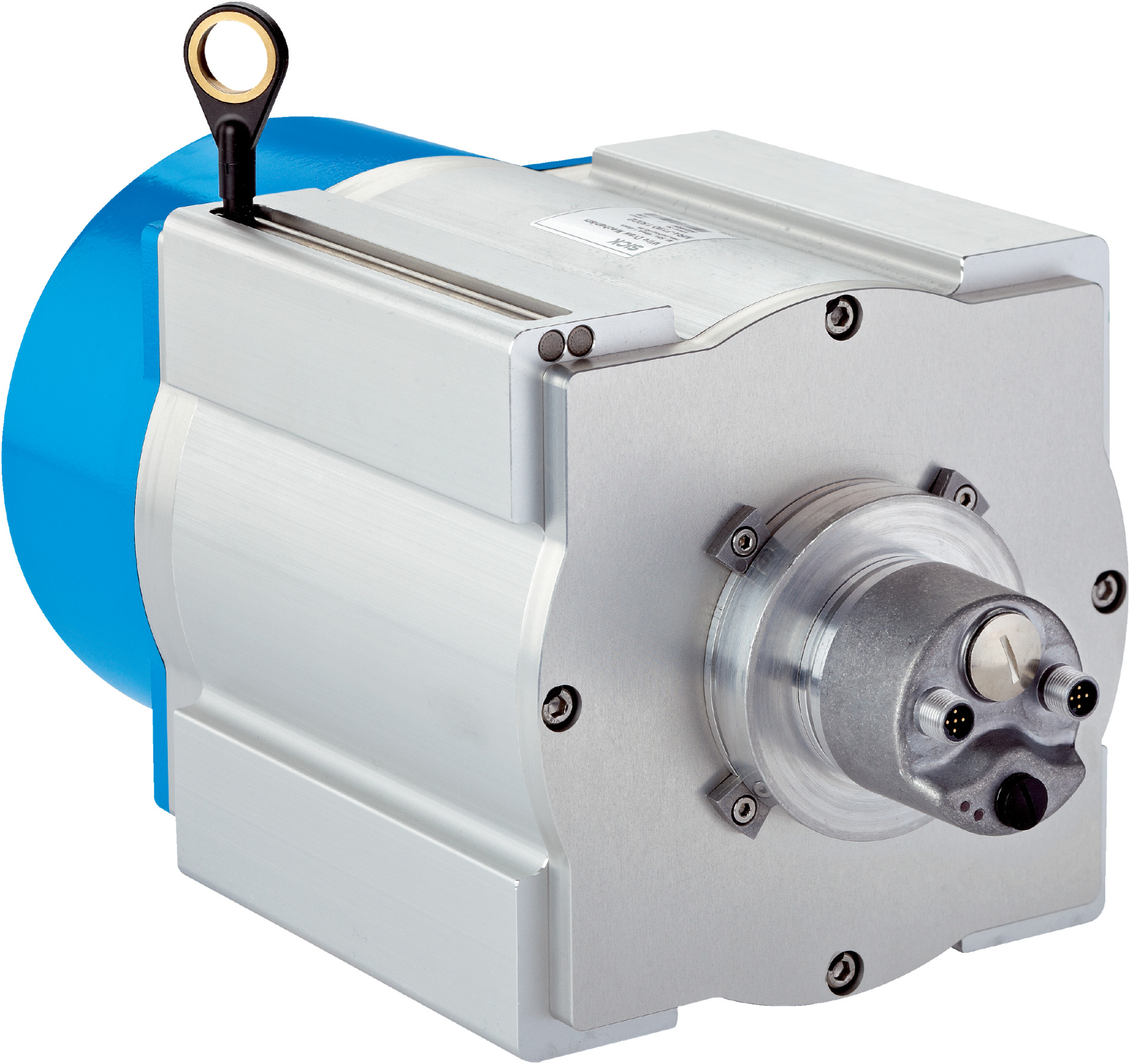

The Wire Draw Encoder BTF19-P1BM5017 offers precise length measurement with a remarkable 0.06 mm resolution and a measurement range of up to 50 m. Designed for industrial automation and safety applications, it features a robust aluminum housing and a highly flexible stainless steel measuring wire, ensuring reliability in demanding environments. Ideal for process control systems utilizing PROFIBUS DP communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 50 m
- Resolution: 0.06 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: PROFIBUS DP
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Measuring wire material: Highly flexible stranded 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 18 N to 37 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Wire acceleration: 18 m/s²
- Mounted encoder model: A3M60, A3M60B-S1PB013X13
- Operating temperature range: –10 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP31 (mechanic IP67, encoder IEC 60529)
- Dimensions (H x L x W): 200mm x 400mm x 300mm
- Weight: 16.78 kg
Key Features
- Absolute encoder with high resolution of 0.06 mm
- Measurement range up to 50 m
- Repeatability ≤ 5 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFIBUS DP interface
- Robust aluminum housing with anodized and nickel-plated finish
- Highly flexible stranded stainless steel measuring wire
- Operating temperature range from –10 °C to +70 °C
- IP31 enclosure rating, IP67 for mounted mechanic and encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and safety-related measurement devices to ensure compliance and optimal performance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Process control systems with PROFIBUS DP communication
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of ≤ 1.5 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF19-P1BM5017 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety measurement applications.
