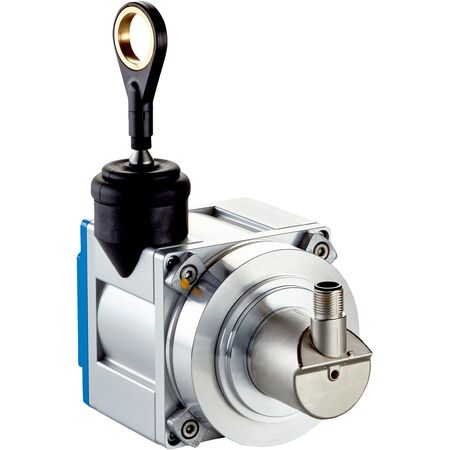

Wire Draw Encoder | CANopen Communication | 0 to 2 m Measurement Range | 0.02 mm Resolution | by SICK
The Wire Draw Encoder with CANopen communication is designed for precise position measurement in industrial automation. With a measurement range of 0 m to 2 m and a resolution of 0.02 mm, it ensures high repeatability and reliability. Ideal for safety-related applications, this robust encoder features an IP64 to IP67 rated enclosure, making it suitable for harsh environments and machine monitoring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 2 m
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: CANopen
- Connection type: Male connector, M12, 5-pin
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Weight: 1.42 kg
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Enclosure rating: IP64 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.42 kg
Key Features
- Absolute encoder with CANopen communication interface
- Measurement range of 0 m to 2 m with 0.02 mm resolution
- High repeatability (≤ 1 mm) and linearity (≤ ± 2 mm)
- Robust aluminum housing with anodized and nickel-plated finish
- IP64 to IP67 rated enclosure for harsh environments
- Operating temperature range from –30 °C to +70 °C
- Programmable and configurable device
- Spring return force between 6 N and 14 N
- Long wire draw mechanism life of approximately 1,000,000 cycles
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption (≤ 1.5 W) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF08-C1QM02S01 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-critical applications.
