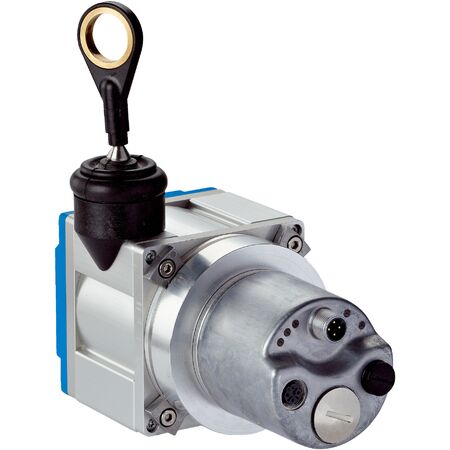

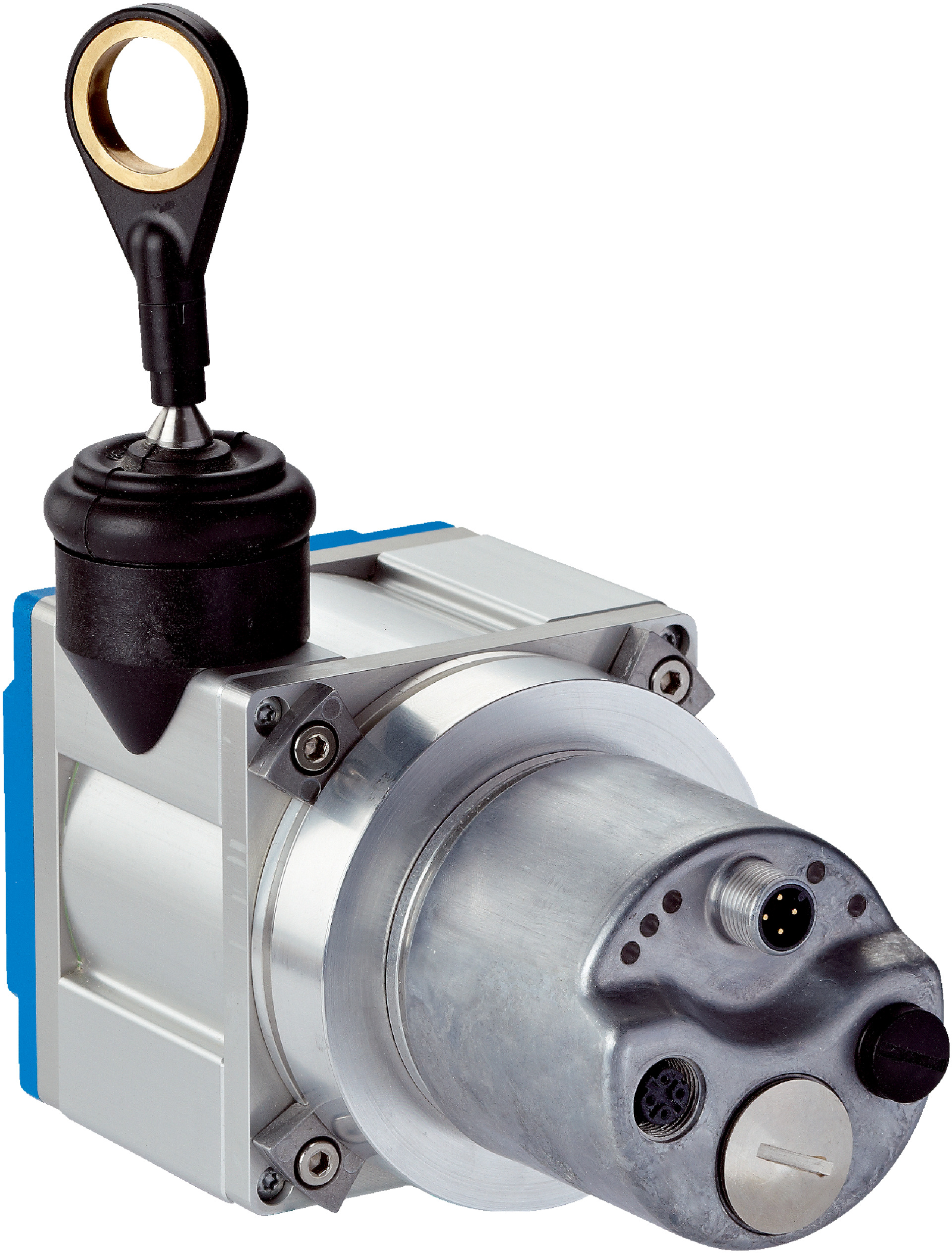

Wire Draw Encoder | High Resolution 0.0008 mm | EtherCAT Communication | IP64 Rated | by SICK
The Wire Draw Encoder BTF08-E1BM0299 offers high precision with a resolution of 0.0008 mm and a measurement range of up to 2 meters. Designed for industrial automation, it features EtherCAT communication for seamless integration and an IP64 rated enclosure for durability. Ideal for position feedback in machinery, this encoder ensures reliable performance in safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 2 m
- Resolution: 0.0008 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: EtherCAT
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Absolute encoder with high resolution of 0.0008 mm
- Measurement range up to 2 meters
- EtherCAT communication interface with programmable configuration
- Robust aluminum housing with anodized and nickel-plated finish
- High repeatability (≤ 1 mm) and linearity (≤ ± 2 mm)
- Operating temperature range from -30 °C to +70 °C
- IP64 rated enclosure with IP67 for mounted mechanic
- Spring return force between 6 N and 14 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherCAT systems and industrial sensor integration to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise linear measurement
- Position feedback in machinery and equipment
- Safety-related monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W supports energy efficiency
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF08-E1BM0299 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring precise linear measurement.
