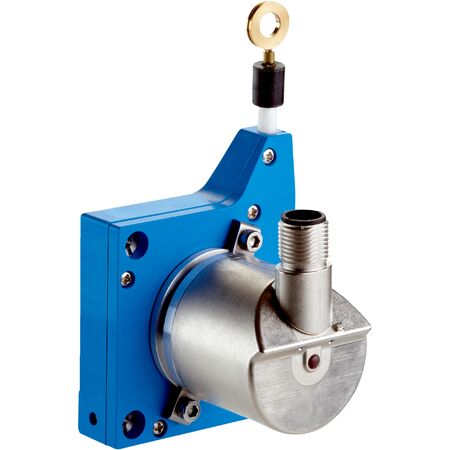

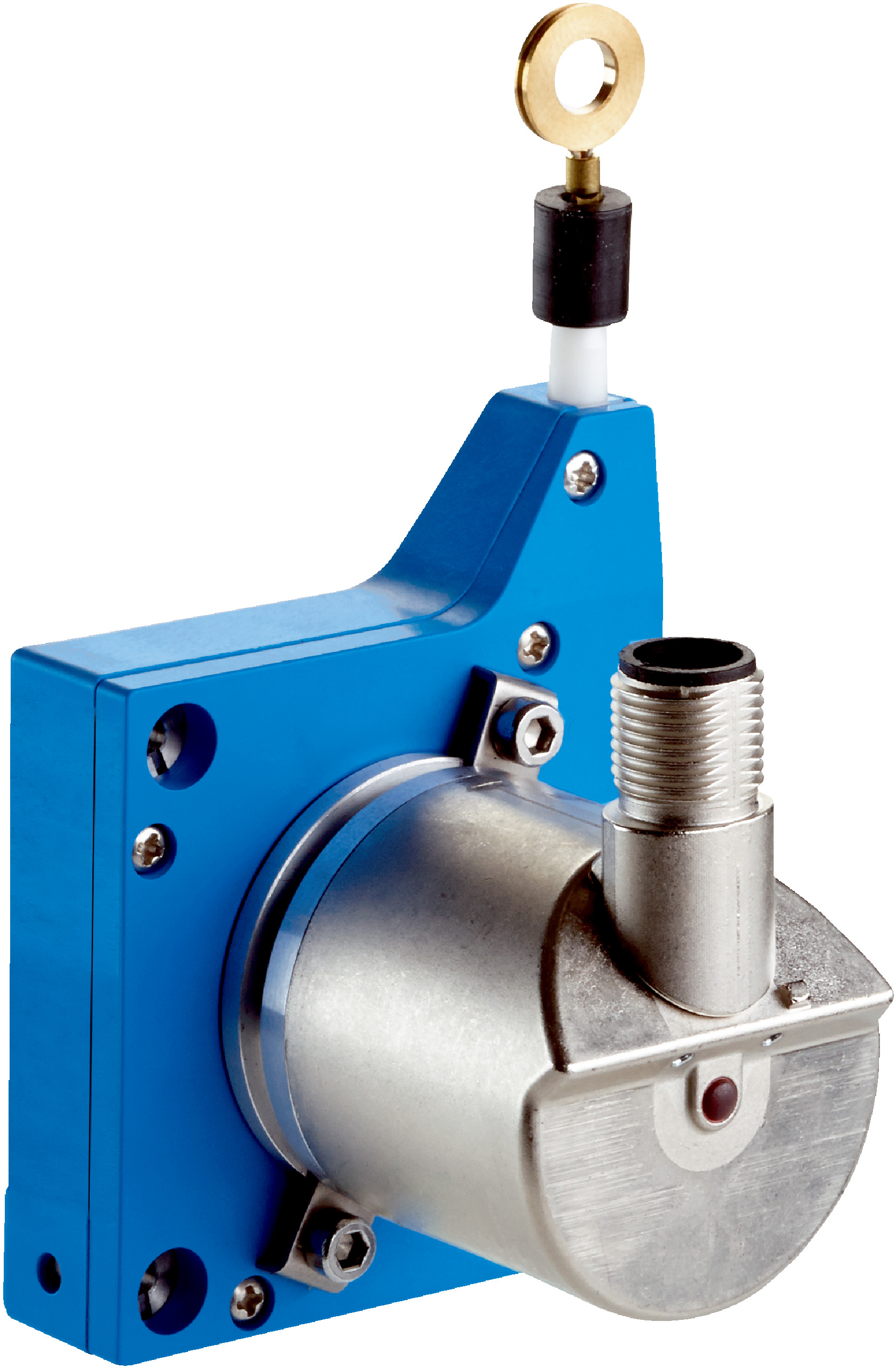

Wire Draw Encoder BCG05-Q1PM0162 | IO-Link V1.1 | 0.009 mm Resolution | IP67 Rated | by SICK
The Wire Draw Encoder BCG05-Q1PM0162 is designed for precise length measurement in industrial automation, featuring a high resolution of 0.009 mm and a measurement range of up to 1.25 m. With its robust construction and IP67 rating, this encoder is perfect for safety-related applications and machine monitoring, ensuring reliable feedback in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Measurement range: 0 m to 1.25 m
- Resolution: 0.009 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire: Highly flexible stranded stainless steel (1.4401 V4A) with PA 12 sheath
- Spring return force: 1 N to 1.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP50 (device), IP66 (mounted mechanic), IP67 (encoder)
- Operating temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.2 kg
Key Features
- Absolute encoder with IO-Link V1.1 communication interface
- High resolution of 0.009 mm with repeatability ≤ 0.2 mm
- Measurement range up to 1.25 m with 1.45 m actual wire draw length
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 1 N and 1.4 N
- Operating temperature range from -20 °C to +70 °C
- IP50 enclosure rating, mounted mechanic IP66, encoder IP67
