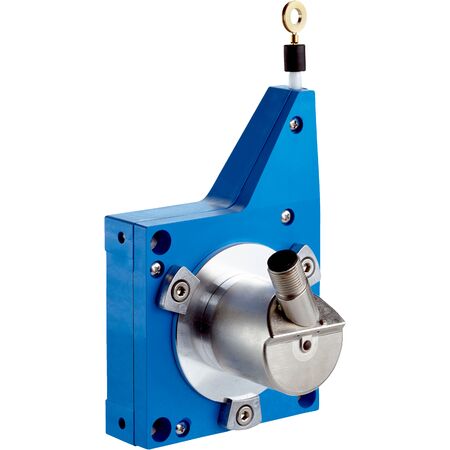

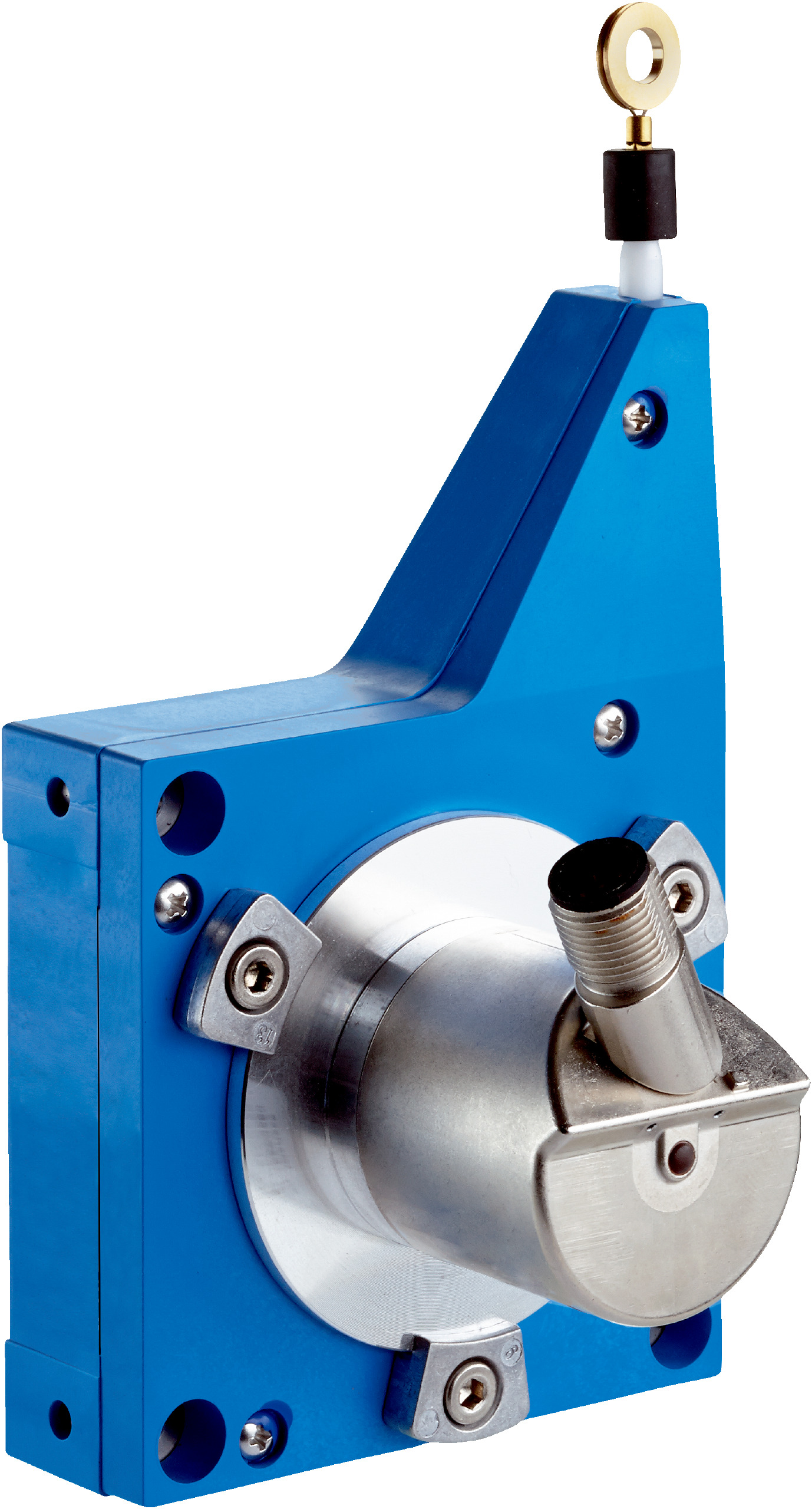

Wire Draw Encoder BCG08-Q1PM0362 | IO-Link V1.1 | 0.014 mm Resolution | IP67 Rated | by SICK
The Wire Draw Encoder BCG08-Q1PM0362 features an IO-Link V1.1 communication interface and a high resolution of 0.014 mm, making it ideal for precise position measurement in industrial automation. With a robust stainless steel measuring wire and an IP67 enclosure rating, this encoder ensures reliable performance in demanding environments, perfect for machine safety monitoring and process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.014 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel 1.4401 (V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: -20 °C to +70 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP50 (device), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 50mm x 150mm x 50mm
- Weight: 0.37 kg
Key Features
- Absolute encoder with IO-Link V1.1 communication interface
- High resolution of 0.014 mm with repeatability ≤ 0.2 mm
- Robust measuring wire made of highly flexible stainless steel
- Spring return force between 3.3 N and 4.4 N
- Operating speed up to 6 m/s with wire acceleration up to 10 m/s²
- IP50 enclosure rating with mounted mechanic rated at IP66 and encoder at IP67
- Programmable and configurable via IO-Link
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and electrical safety standards to ensure proper configuration and compliance.
Applications
- Industrial automation for precise position measurement
- Machine safety monitoring
- Process control requiring absolute encoder feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BCG08-Q1PM0362 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
