Wire Draw Encoder BCG05-Q1PM0161 | IO-Link Communication | 0.04 mm Resolution | IP65 Rated | by SICK

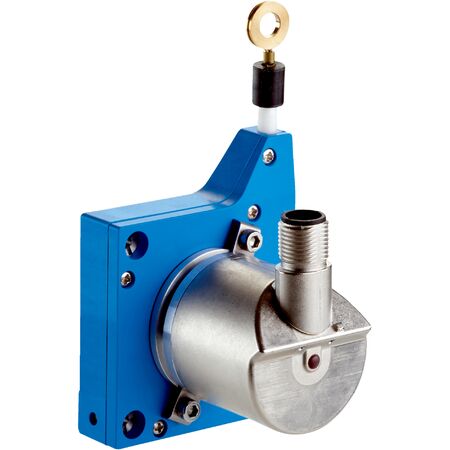

The Wire Draw Encoder BCG05-Q1PM0161 features an IO-Link communication interface and a high measurement resolution of 0.04 mm, making it ideal for industrial automation and safety-related applications. With a repeatability of ≤ 0.2 mm and an operating temperature range from –20 °C to +70 °C, this encoder ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 1.25 m
- Resolution (wire draw + encoder): 0.04 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A/PA 12-sheathed
- Measuring wire diameter: 0.45 mm
- Spring return force: 1 N to 1.4 N
- Length of wire pulled out per revolution: 150 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Mounted encoder: AHM36 IO-Link Basic
- EMC: According to EN 61000-6-2, EN 61000-6-3 and EN 61131-9
- Enclosure rating: IP50, mounted mechanic IP65 (IEC 60529)
- Operating temperature range: –20 °C to +70 °C
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.2 kg
Key Features
- Absolute encoder with IO-Link communication interface
- High measurement resolution of 0.04 mm
- Repeatability of ≤ 0.2 mm and linearity of ≤ ± 2 mm
- Highly flexible stainless steel measuring wire with 0.45 mm diameter
- Spring return force between 1 N and 1.4 N
- Operating temperature range from –20 °C to +70 °C
- IP50 enclosure rating, IP65 for mounted mechanic
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with IO-Link devices and industrial safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG05-Q1PM0161 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
