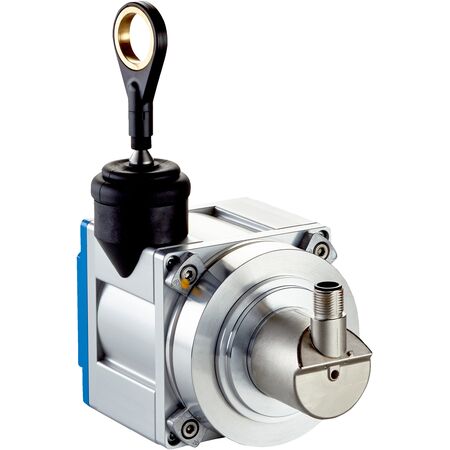

Wire Draw Encoder | IO-Link V1.1 | 0.05 mm Resolution | IP64 Rated | by SICK
The Wire Draw Encoder with IO-Link V1.1 communication offers high measurement precision with a resolution of 0.05 mm, making it ideal for industrial automation and safety applications. Designed for reliable position measurement, it features a robust aluminum housing and operates within a temperature range of -20 °C to +70 °C, ensuring durability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 2 m
- Resolution: 0.05 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Mounted encoder: AHM36 IO-Link Basic
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP64 (mechanic IP65)
- Operating temperature range: -20 °C to +70 °C
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.42 kg
Key Features
- Absolute encoder with IO-Link V1.1 communication interface
- High measurement resolution of 0.05 mm
- Robust aluminum housing with anodized and nickel-plated finish
- Long measuring wire length of 2.2 m with high flexibility
- High repeatability (≤ 1 mm) and linearity (≤ ± 2 mm)
- Spring return force between 6 N and 14 N
- Operating temperature range from -20 °C to +70 °C
- IP64 enclosure rating, IP65 for mounted mechanic
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial automation systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position measurement
- Machine safety and control systems
- Process monitoring and control requiring absolute position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long life cycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF08-Q1RM0261 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety applications requiring precise position measurement.
