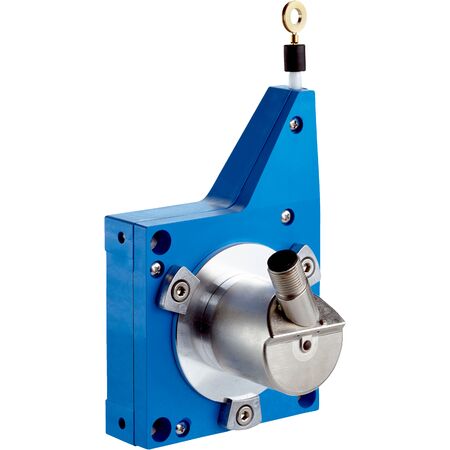

Wire Draw Encoder BCG08-Q1PM0361 | IO-Link V1.1 | 0.06 mm Resolution | IP50/IP65 Rated | by SICK
The Wire Draw Encoder BCG08-Q1PM0361 is designed for precise wire length measurement in industrial automation. With a high measurement accuracy of 0.06 mm and an IO-Link V1.1 communication interface, it ensures reliable feedback for machine monitoring and control systems. Built to last with a robust design and a long service life of up to 1,000,000 cycles, this encoder is perfect for safety-related applications requiring dependable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.06 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 4-pin, universal
- Measuring wire material: Highly flexible stranded stainless steel (1.4401, V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Mounted encoder model: AHM36 IO-Link Basic
- Operating temperature range: -20 °C to +70 °C
- Enclosure rating: IP50 (encoder), IP65 (mounted mechanic)
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.37 kg
Key Features
- Absolute encoder with IO-Link V1.1 communication interface
- High measurement accuracy with 0.06 mm resolution
- Robust design with plastic Noryl housing and stainless steel measuring wire
- Long service life with up to 1,000,000 cycles
- Spring return force between 3.3 N and 4.4 N
- Operating temperature range from -20 °C to +70 °C
- EMC compliant according to EN 61000-6-2, EN 61000-6-3, and EN 61131-9
- Enclosure rating IP50 for encoder, IP65 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor integration to ensure proper connection and configuration.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BCG08-Q1PM0361 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
