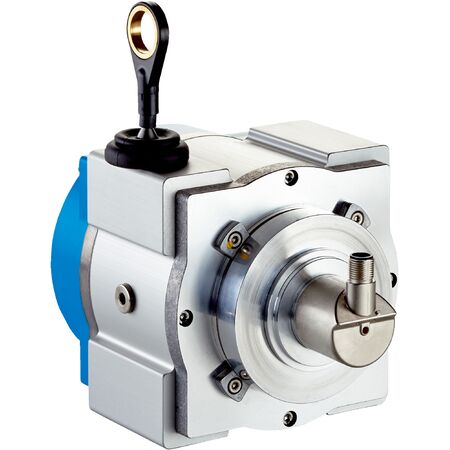

Wire Draw Encoder BTF13-Q1RM0561 | IO-Link V1.1 | 0.08 mm Resolution | IP64/IP65 Rated | by SICK
The Wire Draw Encoder BTF13-Q1RM0561 offers high measurement accuracy with a 0.08 mm resolution, making it ideal for industrial automation and safety-related applications. With an IO-Link V1.1 communication interface and robust IP64/IP65 housing, this encoder ensures reliable performance in challenging environments. Designed for longevity, it supports up to 1,000,000 cycles, providing dependable feedback for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.08 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 15 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 70 m/s²
- Mounted encoder model: AHM36 IO-Link Basic
- Enclosure rating: IP64 (mechanic IP65, encoder IEC 60529)
- Operating temperature range: -20 °C to +70 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.92 kg
Key Features
- Absolute encoder with IO-Link V1.1 communication interface
- High measurement accuracy with 0.08 mm resolution
- Robust aluminum and plastic housing with IP64/IP65 rating
- Long service life with up to 1,000,000 cycles
- Spring return force between 15 N and 20 N
- Operating temperature range from -20 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial safety standards to ensure proper integration and compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-Q1RM0561 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
