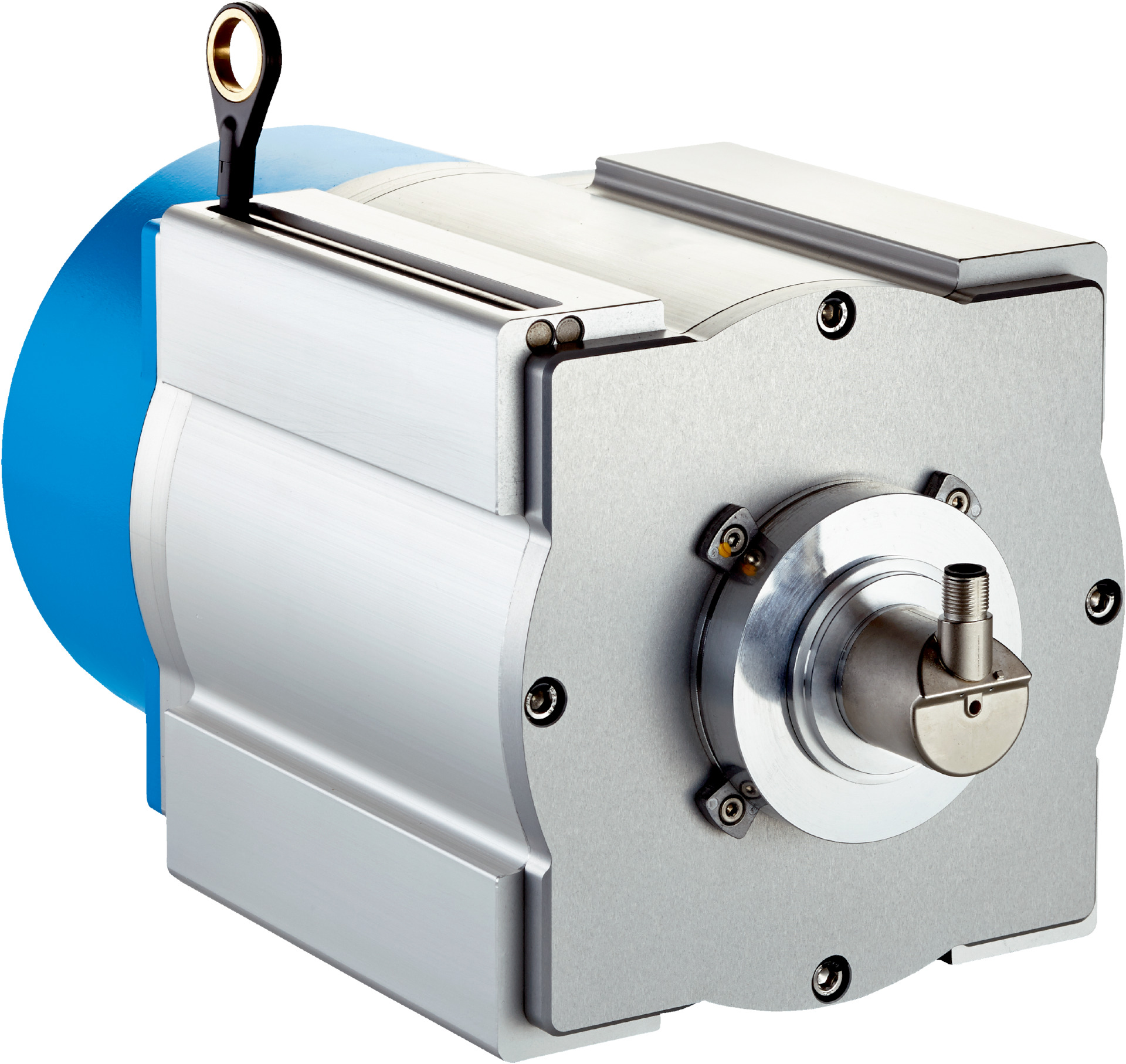

Wire Draw Encoder BTF19-Q1RM5061 | IO-Link Communication | 50m Measurement Range | High Repeatability | by SICK
The Wire Draw Encoder BTF19-Q1RM5061 features an impressive measurement range of up to 50 meters and high repeatability of ≤ 5 mm, making it ideal for industrial automation and safety monitoring applications. With its robust aluminum housing and IP31 enclosure rating, this encoder is built to withstand harsh environments while providing precise length measurement and position feedback in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 50 m
- Resolution (wire draw + encoder): 0.12 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 18 N to 37 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Wire acceleration: 18 m/s²
- Mounted encoder: AHM36 IO-Link Basic
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP31 (mechanic IP65)
- Operating temperature range: -20 °C to +70 °C
- Dimensions (H x L x W): 200mm x 300mm x 200mm
- Weight: 16.62 kg
Key Features
- Absolute encoder with IO-Link communication interface
- High measurement range up to 50 meters
- High repeatability ≤ 5 mm and linearity ≤ ± 2 mm
- Robust aluminum housing with anodized and nickel-plated finish
- Spring return force between 18 N and 37 N
- Operating temperature range from -20 °C to +70 °C
- IP31 enclosure rating, IP65 for mounted mechanic
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration of the IO-Link interface and mechanical mounting.
Applications
- Industrial automation for precise length measurement
- Safety-related monitoring in machinery
- Position feedback in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty terms.
Available Now
The SICK BTF19-Q1RM5061 is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
