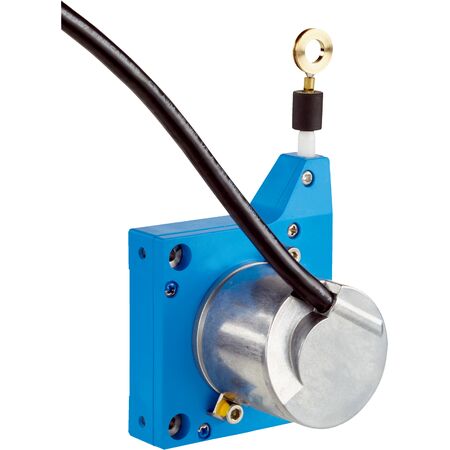

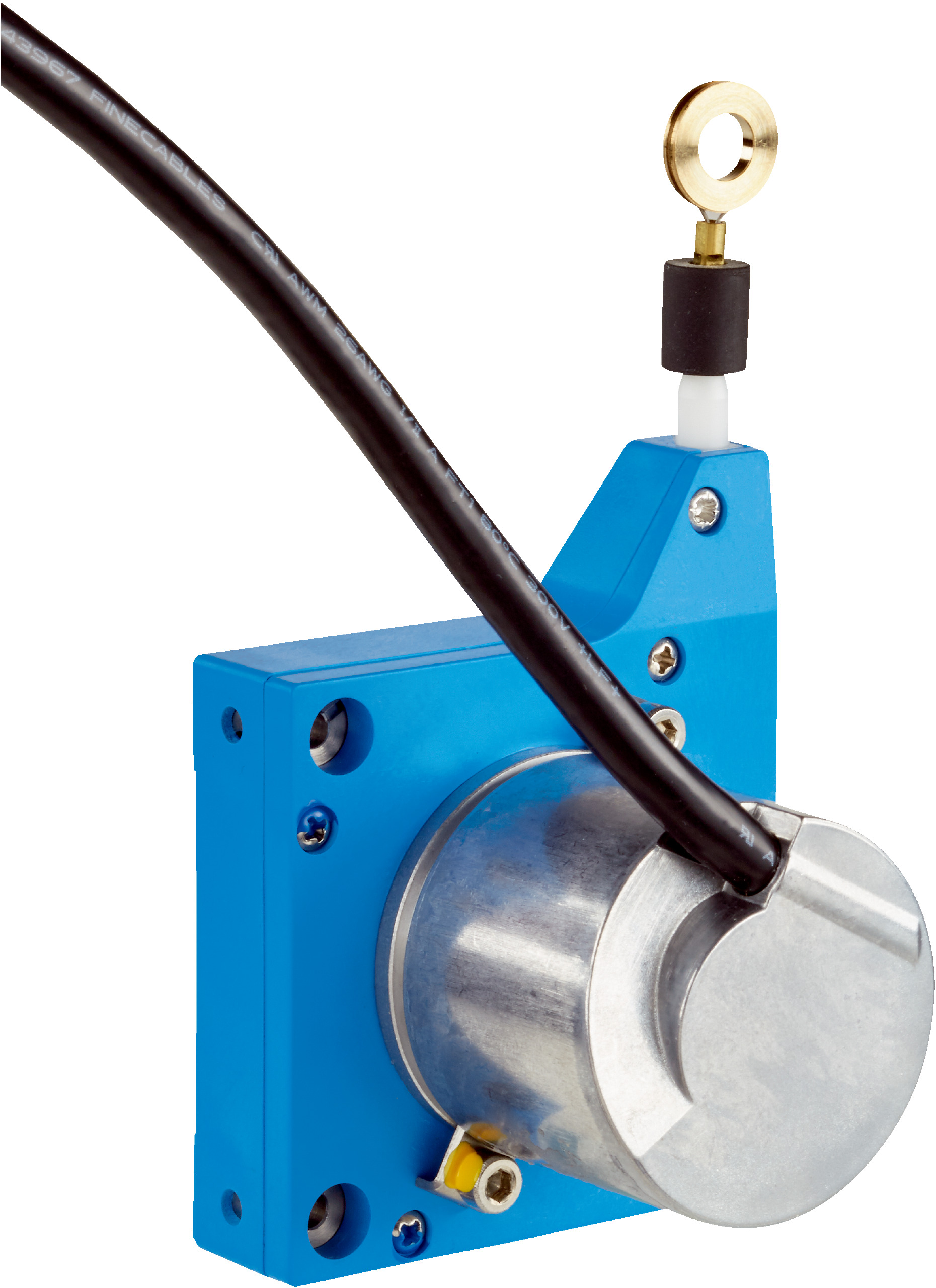

Wire Draw Encoder PFG05-A1KM0160 | 1.25 m Measurement Range | 0.06 mm Resolution | IP50 Enclosure | by SICK
The Wire Draw Encoder PFG05-A1KM0160 offers a measurement range of up to 1.25 m with a high resolution of 0.06 mm, making it ideal for industrial automation and safety-related applications. Designed for precise length measurement, it features a robust plastic housing and operates efficiently within a temperature range of -20 °C to +70 °C, ensuring reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 1.25 m
- Resolution: 0.06 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / TTL / RS-422
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 4.5 V to 5.5 V
- Operating current: ≤ 50 mA (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A) with PA 12 sheath
- Measuring wire diameter: 0.45 mm
- Spring return force: 1 N to 1.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Mounted encoder: DBS36 Core, DBS36E-SDAK02500
- Operating temperature range: –20 °C to +70 °C
- Enclosure rating: IP50 (mechanic IP65, encoder)
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.23 kg
Key Features
- High mean time to dangerous failure (MTTFD) of 600 years according to EN ISO 13849-1
- Measurement range up to 1.25 m
- High resolution of 0.06 mm with incremental encoders
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Robust plastic Noryl housing with stainless steel wire draw mechanism
- Operating temperature range from –20 °C to +70 °C
- IP50 enclosure rating, IP65 for mounted mechanic and encoder
- EMC compliant with EN 61000-6-2 and EN 61000-6-3 (class A)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low operating current (≤ 50 mA) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PFG05-A1KM0160 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
