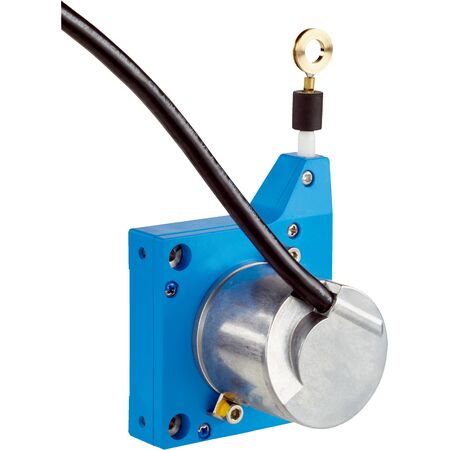

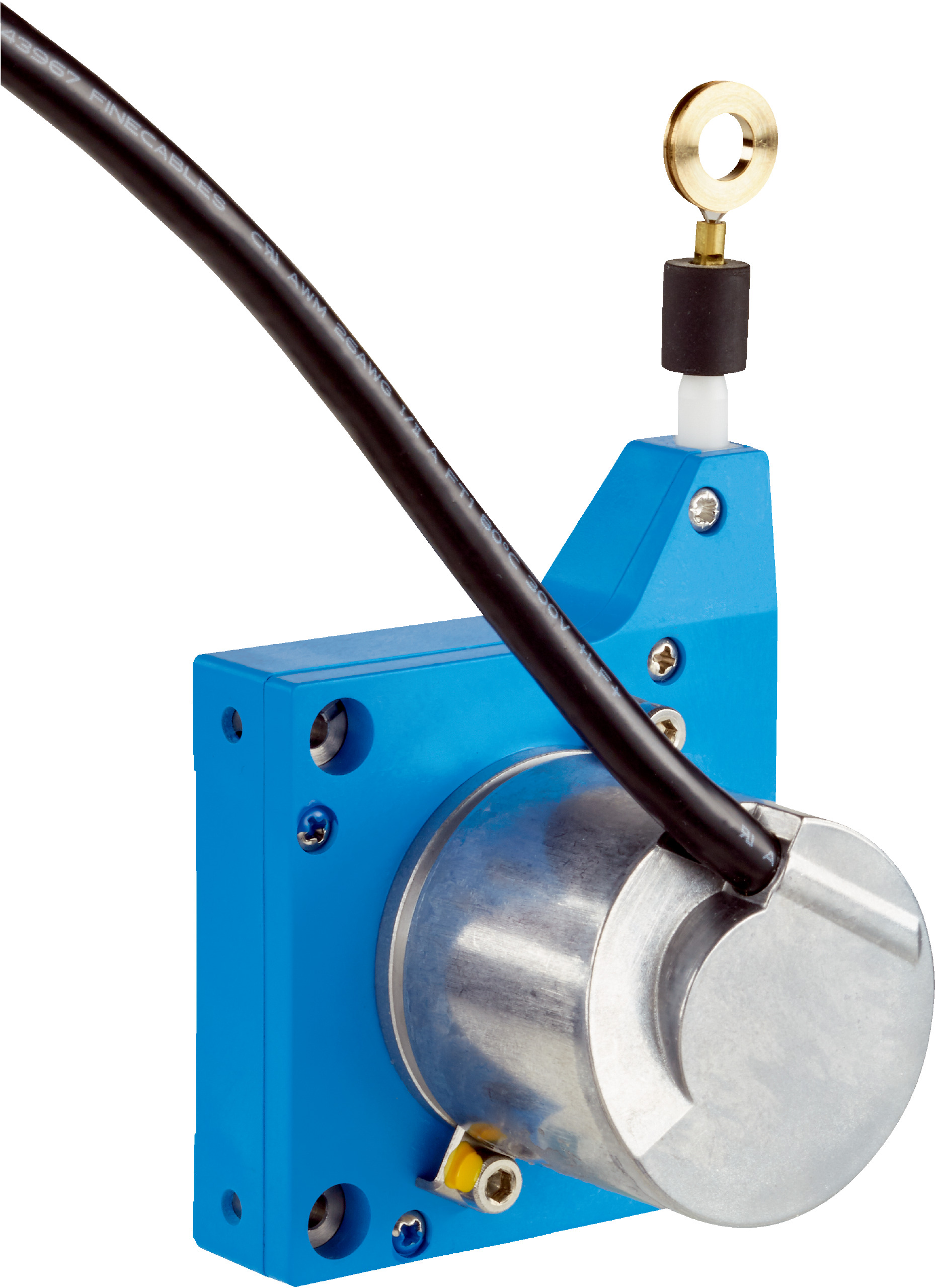

Wire Draw Encoder PFG05-E1MM0160 | 1.25m Measurement Range | 0.06mm Resolution | IP50 Rated | by SICK
The Wire Draw Encoder PFG05-E1MM0160 offers a measurement range of up to 1.25 meters with a high resolution of 0.06 mm, making it ideal for industrial automation and safety-related applications. Designed for precise wire length measurement, this encoder features robust construction with a stainless steel measuring wire and operates effectively in temperatures from -20 °C to +70 °C, ensuring reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 1.25 m
- Resolution: 0.06 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / HTL / Push pull
- Connection type: 8-wire cable, 5 m length
- Supply voltage: 7 V to 30 V
- Power consumption: ≤ 0.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A) with PA 12 sheath
- Measuring wire diameter: 0.45 mm
- Spring return force: 1 N to 1.4 N
- Life expectancy: Approximately 1,000,000 cycles
- Operating speed: Up to 6 m/s
- Wire acceleration: 10 m/s²
- Mounted encoder model: DBS36 Core, DBS36E-SDEM02500
- Operating temperature: –20 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP50 (mechanic IP65, encoder)
- Dimensions (H x L x W): 40mm x 120mm x 60mm
- Weight: 0.23 kg
Key Features
- High mean time to dangerous failure (MTTFD) of 600 years according to EN ISO 13849-1
- Measurement range up to 1.25 meters
- High resolution of 0.06 mm with incremental encoders
- Repeatability of ≤ 0.2 mm and linearity of ≤ ± 2 mm
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Operating temperature range from –20 °C to +70 °C
- EMC compliant with EN 61000-6-2 and EN 61000-6-3 (class A)
- IP50 enclosure rating, IP65 for mounted mechanic and encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable position feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 0.5 W reduces energy usage
- Durable materials and long service life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
