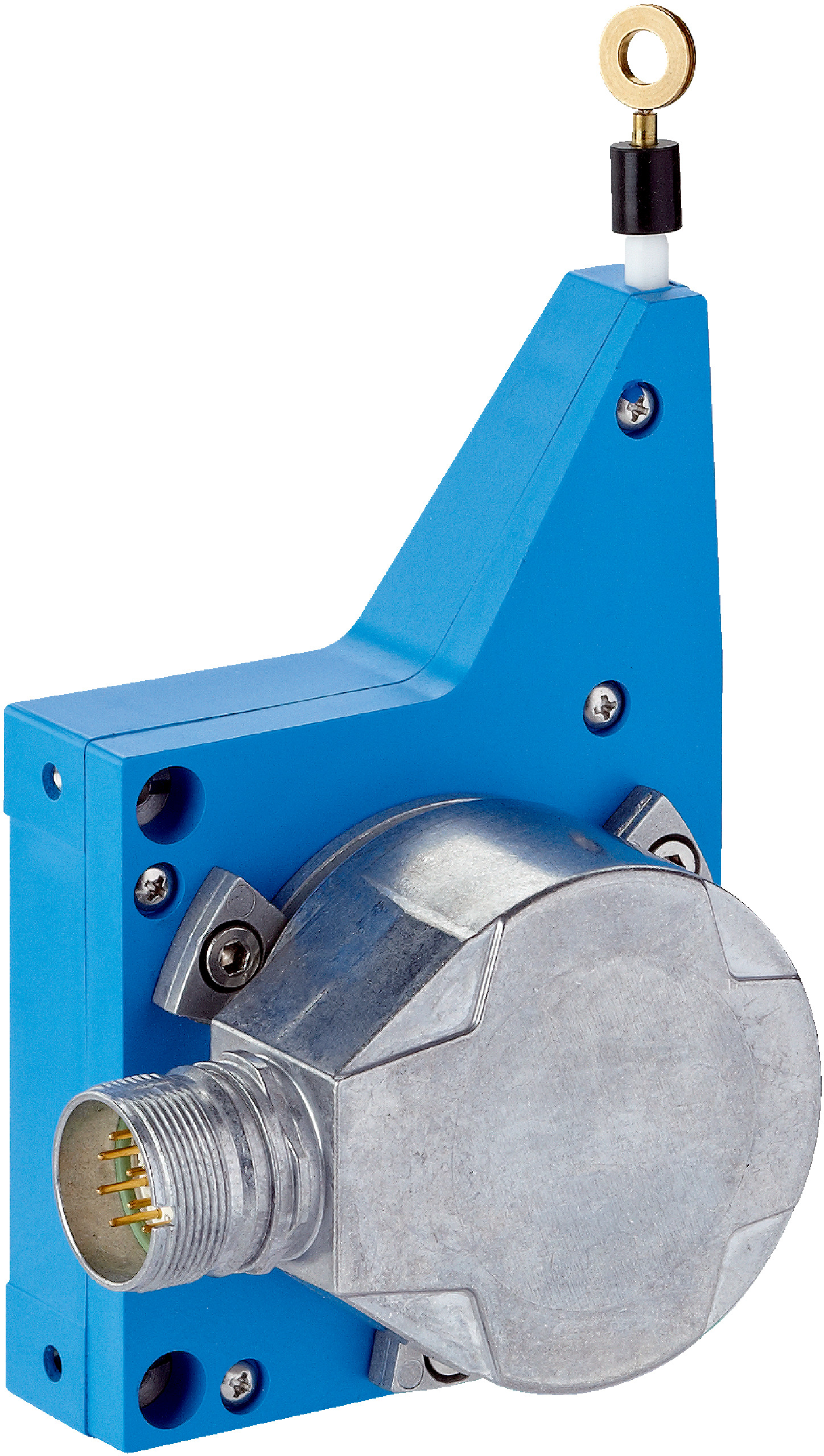

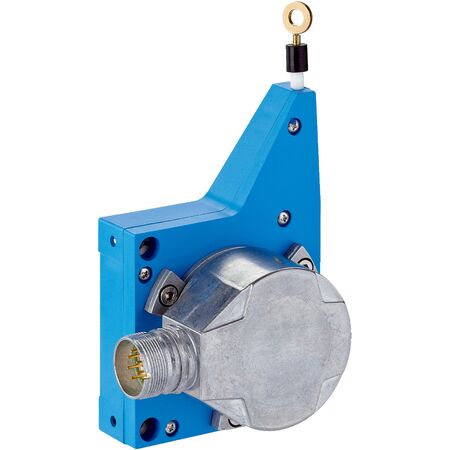

Wire Draw Encoder PFG08-P1AM03PP | 0 to 3 m Measurement Range | 0.0035 mm Resolution | IP67 Rated | by SICK
The Wire Draw Encoder PFG08-P1AM03PP offers a measurement range of 0 to 3 m with an impressive resolution of 0.0035 mm, making it ideal for industrial automation and safety-related applications. Designed for reliability, it features robust mechanics and a long life wire draw mechanism, ensuring precise length measurement in machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 300 years (EN ISO 13849-1)
- Measurement range: 0 m to 3 m
- Resolution: 0.0035 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / TTL / HTL
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 10 m/s²
- Operating speed: 6 m/s
- Mounted encoder model: DFS60, DFS60A-S1PA65536
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 main unit, IP67 mounted mechanic
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.55 kg
Key Features
- Measurement range of 0 m to 3 m
- High resolution of 0.0035 mm
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Incremental encoder with TTL/HTL communication interface
- Programmable and configurable output with factory TTL setting
- Robust mechanics with plastic Noryl housing and stainless steel measuring wire
- Long life wire draw mechanism with typically 1,000,000 cycles
- Operating temperature range from –30 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating IP50 for main unit, IP67 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of ≤ 0.7 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PFG08-P1AM03PP Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety measurement applications.
