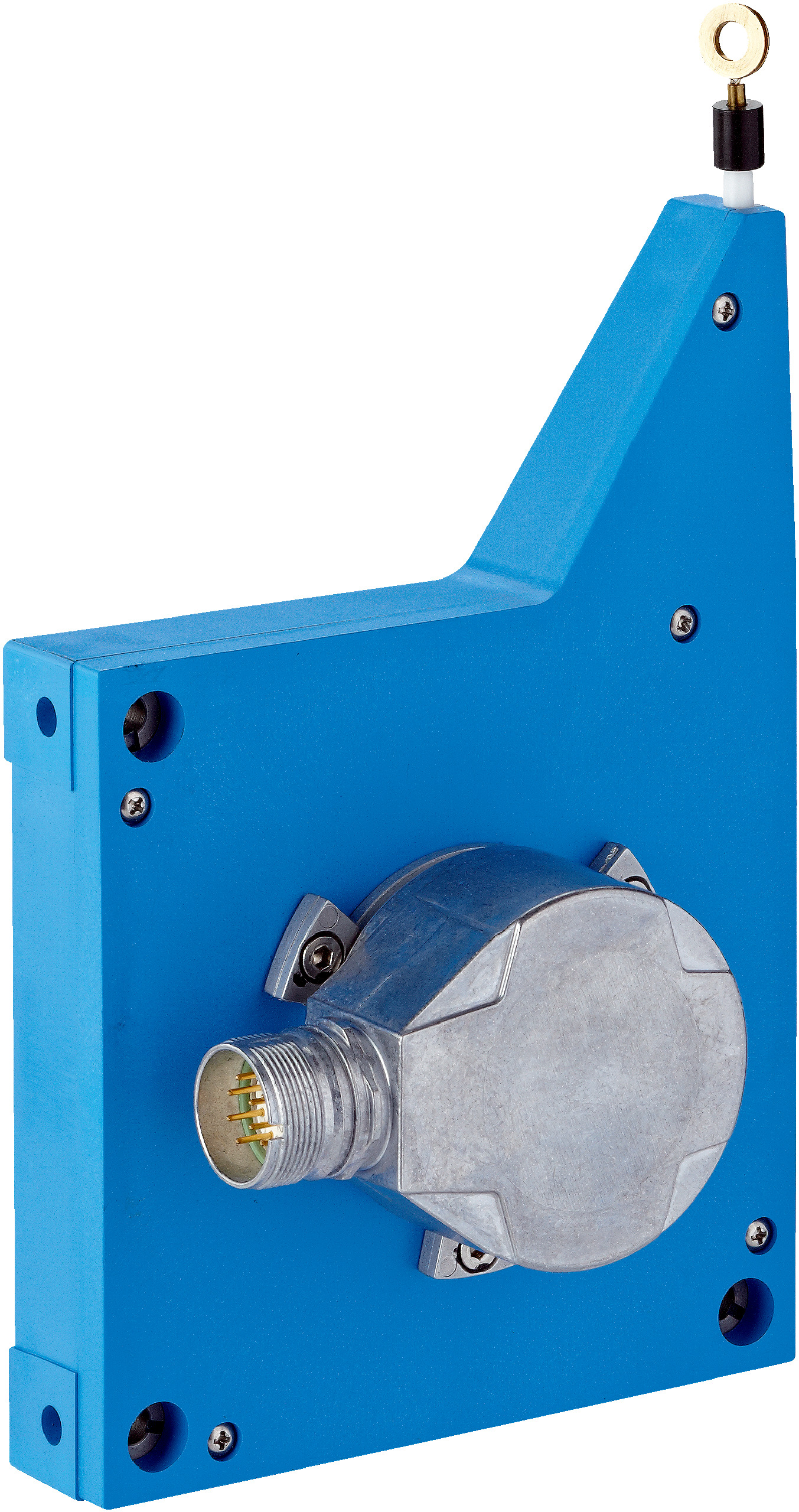

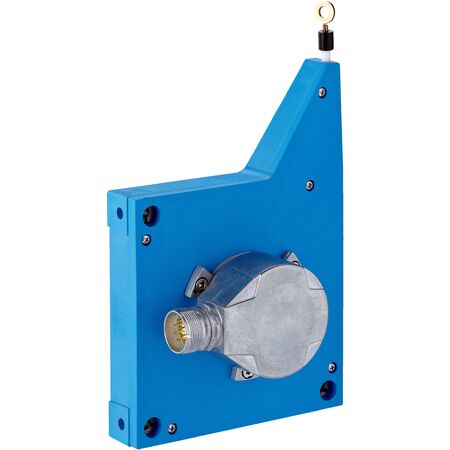

Wire Draw Encoder PFG13-E1AM0544 | 0 to 5 m Measurement Range | 0.02 mm Resolution | IP50/IP67 Rated | by SICK
The Wire Draw Encoder PFG13-E1AM0544 offers a measurement range of 0 to 5 m with high precision, featuring a resolution of 0.02 mm. Designed for industrial automation and safety applications, it ensures reliable position feedback with repeatability of ≤ 0.2 mm. Built with robust materials and an IP50/IP67 enclosure rating, this encoder is perfect for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Measurement range: 0 m to 5 m
- Encoder type: Incremental encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / HTL / Push pull
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Length of wire pulled out per revolution: 385 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Operating temperature range: –30 °C to +70 °C
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP50, mounted mechanic IP67
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 1.1 kg
Key Features
- Measurement range of 0 m to 5 m
- High resolution of 0.02 mm with incremental encoder
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Robust plastic Noryl housing with stainless steel measuring wire
- Spring return force between 4.5 N and 7 N
- Operating speed up to 3 m/s
- EMC compliant to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating IP50, mounted mechanic IP67
