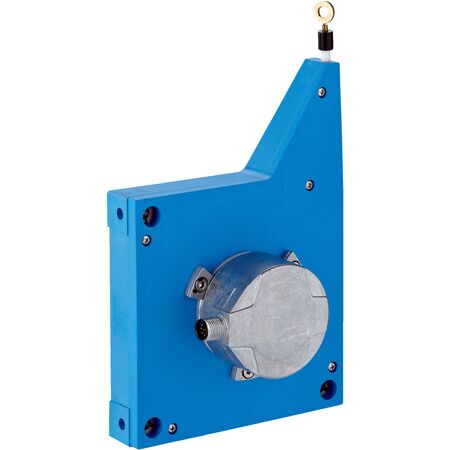

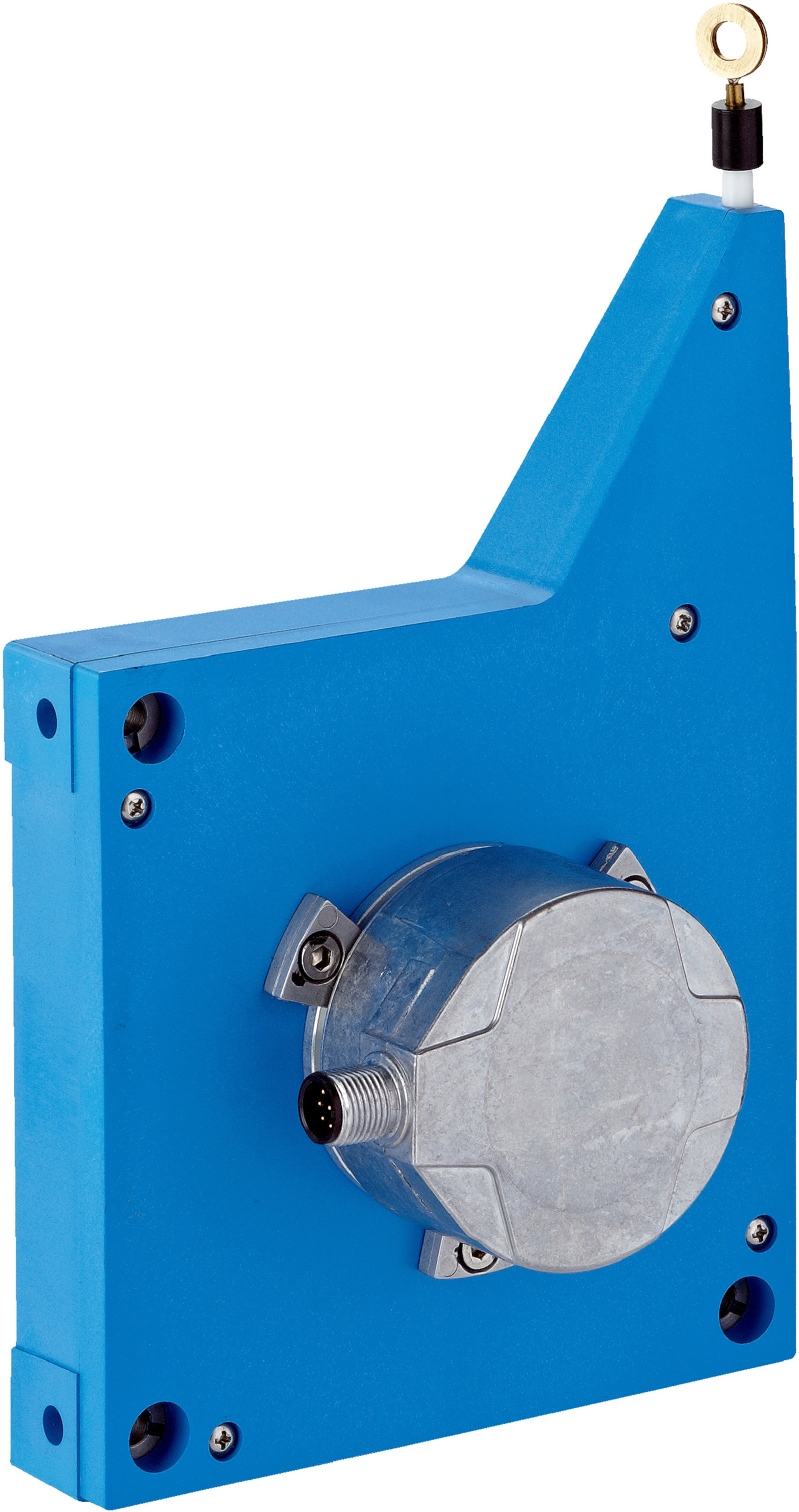

Wire Draw Encoder PFG13-P1CM05PP | 0 m to 5 m Measurement Range | 0.0058 mm Resolution | IP50 Enclosure | by SICK
The Wire Draw Encoder PFG13-P1CM05PP offers a measurement range of 0 m to 5 m with an impressive resolution of 0.0058 mm, making it ideal for precise linear measurement in industrial automation. Designed for safety monitoring and position feedback in machinery, this encoder features robust construction and operates efficiently in temperatures from –30 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Measurement range: 0 m to 5 m
- Resolution: 0.0058 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / TTL / HTL
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Mounted encoder: DFS60, DFS60A-S1PC65536
- Operating temperature range: –30 °C to +70 °C
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP67)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.1 kg
Key Features
- Measurement range of 0 m to 5 m
- High resolution of 0.0058 mm
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Programmable and configurable output with factory TTL setting
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Operating temperature range from –30 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- IP50 enclosure rating with IP67 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards.
Applications
- Industrial automation for precise linear measurement
- Position feedback in machinery
- Safety-related monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.7 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PFG13-P1CM05PP is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
