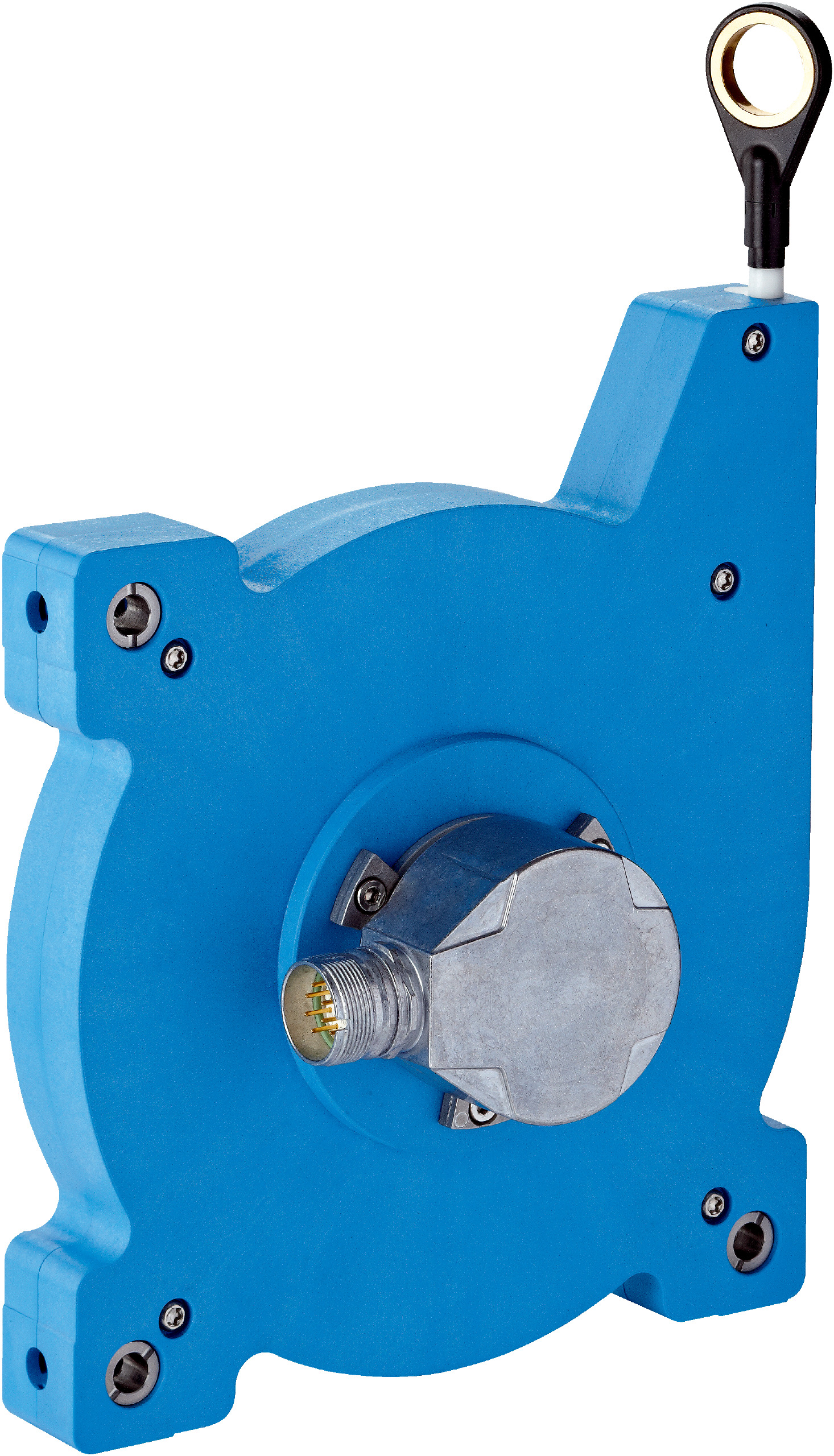

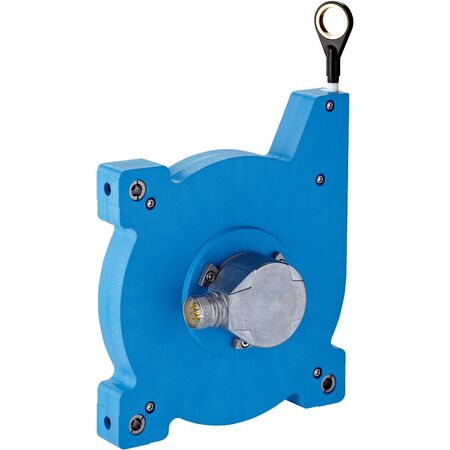

Wire Draw Encoder PFG19-A1AM1029 | 10m Measurement Range | 0.03mm Resolution | IP50 Rated | by SICK
The Wire Draw Encoder PFG19-A1AM1029 offers a high measurement range of up to 10 meters and an impressive resolution of 0.03 mm, making it ideal for industrial automation and safety-related applications. With a robust design featuring a stainless steel measuring wire and an operating temperature range of -30 °C to +70 °C, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Incremental encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / TTL / RS-422
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 V to 5.5 V
- Operating current: 40 mA (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Mounted encoder: DFS60, DFS60A-S1AA16384
- Operating temperature range: –30 °C to +70 °C
- Enclosure rating: IP50 (mechanic IP67, encoder IEC 60529)
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 2.2 kg
Key Features
- High measurement range up to 10 meters
- Incremental encoder with high resolution of 0.03 mm
- Repeatability of ≤ 0.2 mm and linearity of ≤ ± 2 mm
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 9 N and 12 N
- Operating temperature range from –30 °C to +70 °C
- IP50 enclosure rating with IP67 for mounted mechanic
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption (40 mA)
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PFG19-A1AM1029 Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
