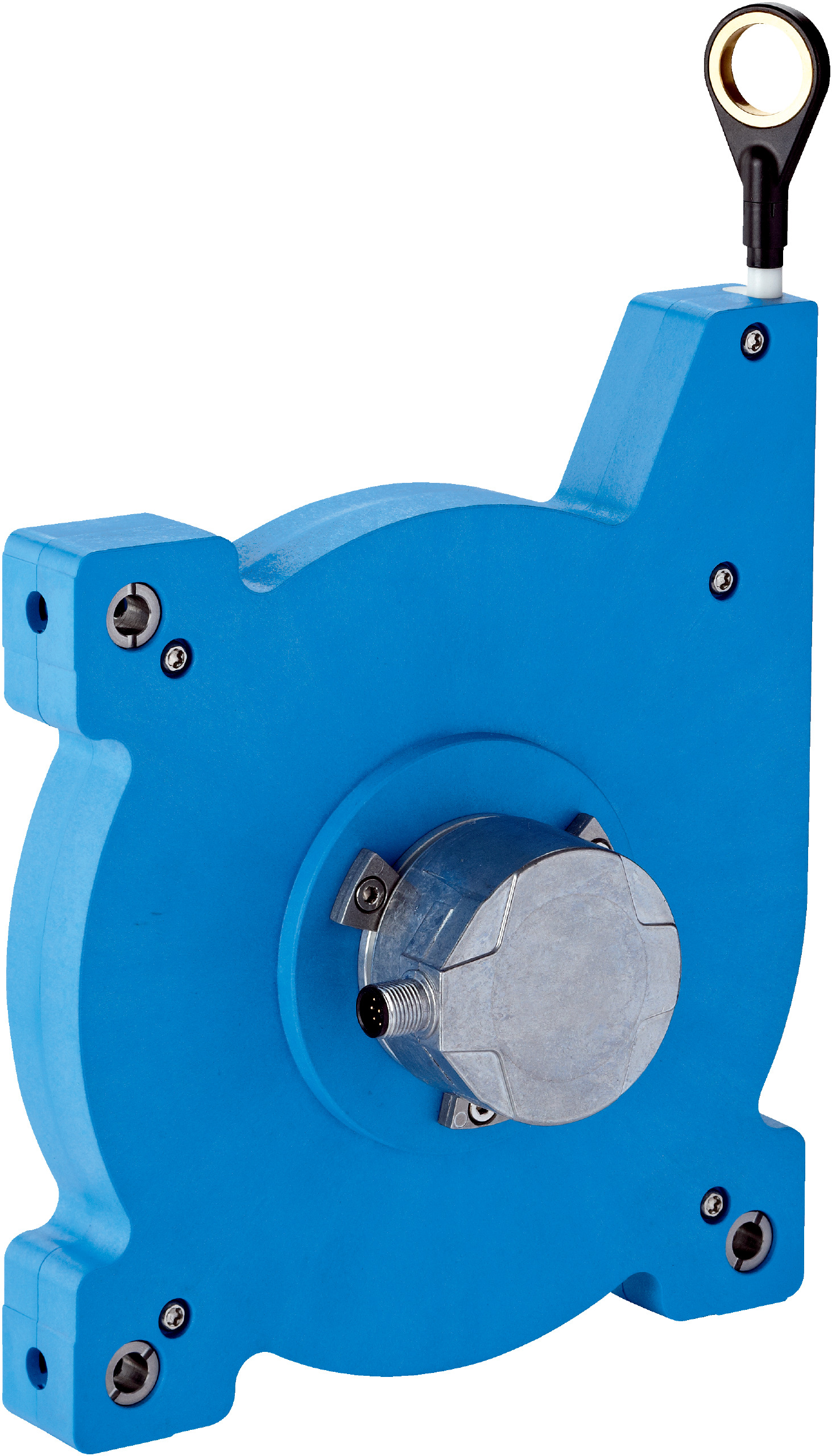

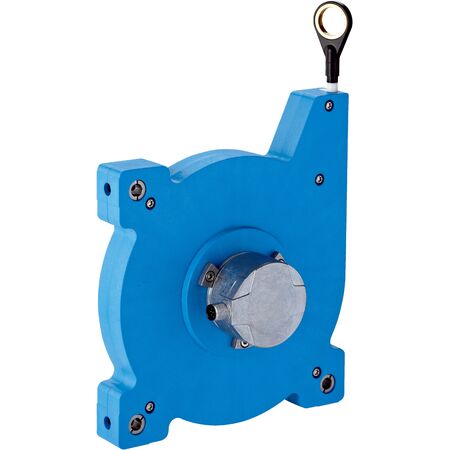

Wire Draw Encoder PFG19-A1CM1029 | 10m Measurement Range | 0.03mm Resolution | IP50 Rated | by SICK
The Wire Draw Encoder PFG19-A1CM1029 offers a measurement range of up to 10 meters with a high resolution of 0.03 mm, making it ideal for industrial automation and safety-related applications. Designed for precise length measurement, this incremental encoder features a robust IP50-rated housing and operates efficiently in temperatures from -30 °C to +70 °C, ensuring reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Incremental encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / TTL / RS-422
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 V to 5.5 V
- Operating current: 40 mA (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: –30 °C to +70 °C
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.2 kg
Key Features
- Measurement range up to 10 m
- High resolution of 0.03 mm
- Repeatability ≤ 0.2 mm
- Linearity ≤ ± 2 mm
- Hysteresis ≤ 0.4 mm
- Incremental encoder with TTL / RS-422 communication interface
- Robust plastic Noryl housing with IP50 rating, mounted mechanic IP67
- Operating temperature range from –30 °C to +70 °C
- Spring return force between 9 N and 12 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low operating current (40 mA) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PFG19-A1CM1029 Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
