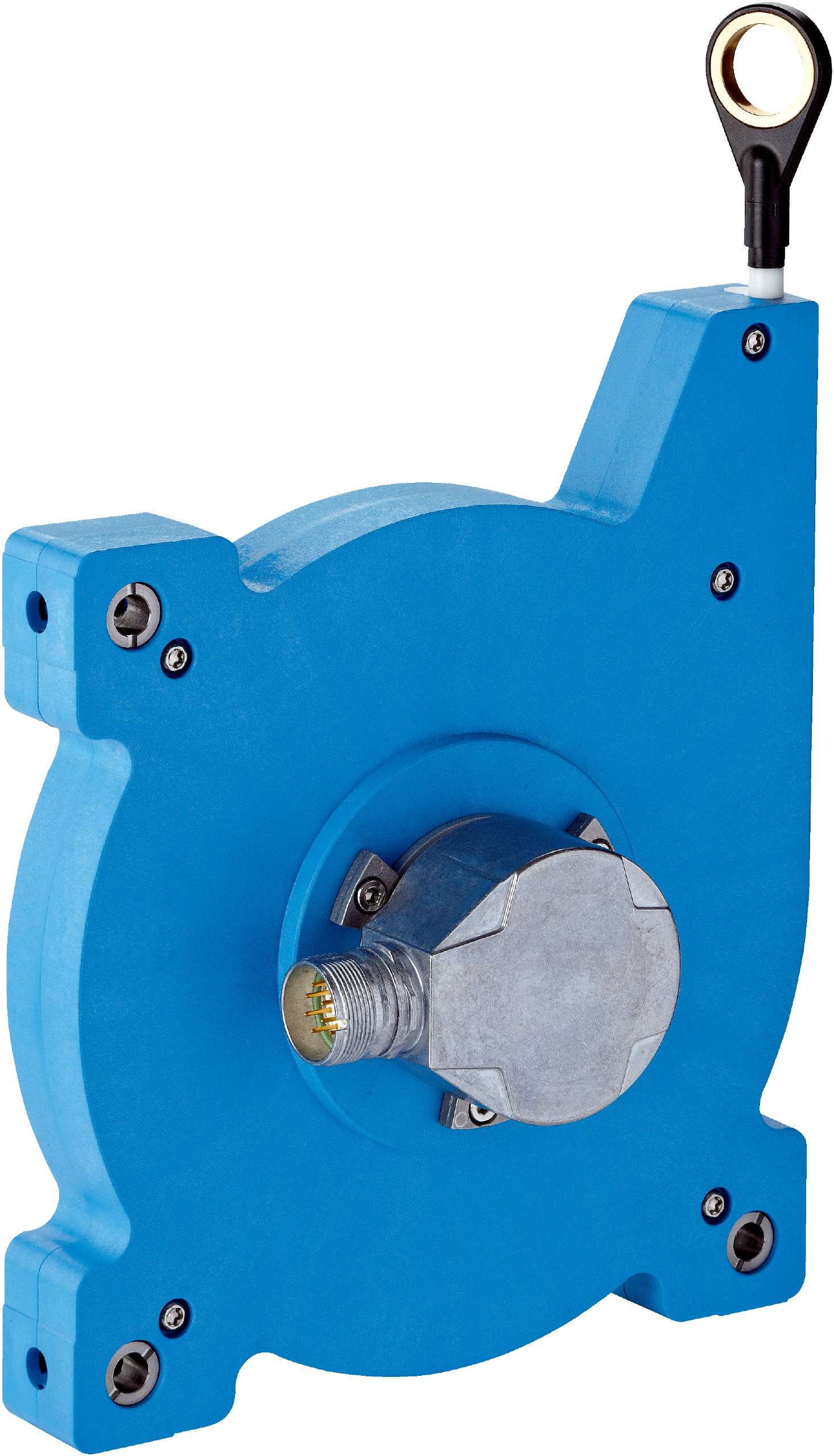

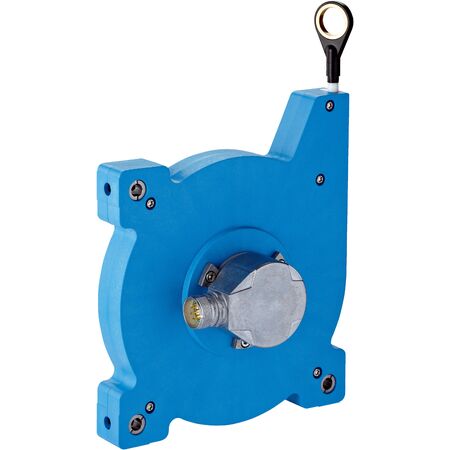

Wire Draw Encoder PFG19-E1AM1029 | 10 m Measurement Range | 0.03 mm Resolution | IP50 & IP67 Rated | by SICK
The Wire Draw Encoder PFG19-E1AM1029 is designed for precise length measurement in industrial automation, featuring a high measurement range of up to 10 m and an impressive resolution of 0.03 mm. Built for reliability, it offers repeatability of ≤ 0.2 mm and operates effectively in temperatures from –30 °C to +70 °C, making it ideal for safety-related applications and machine monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Incremental encoders
- Resolution (wire draw + encoder): 0.03 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / HTL / Push pull
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Length of wire pulled out per revolution: 555 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Mounted encoder model: DFS60, DFS60A-S1EA16384
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP50, mounted mechanic IP67
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 2.2 kg
Key Features
- High measurement range up to 10 m
- Incremental encoder with resolution of 0.03 mm
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 9 N and 12 N
- Long life wire draw mechanism with typically 1,000,000 cycles
- Operating temperature range from –30 °C to +70 °C
- IP50 enclosure rating, mounted mechanic IP67
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and industrial measurement systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 0.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK PFG19-E1AM1029 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
