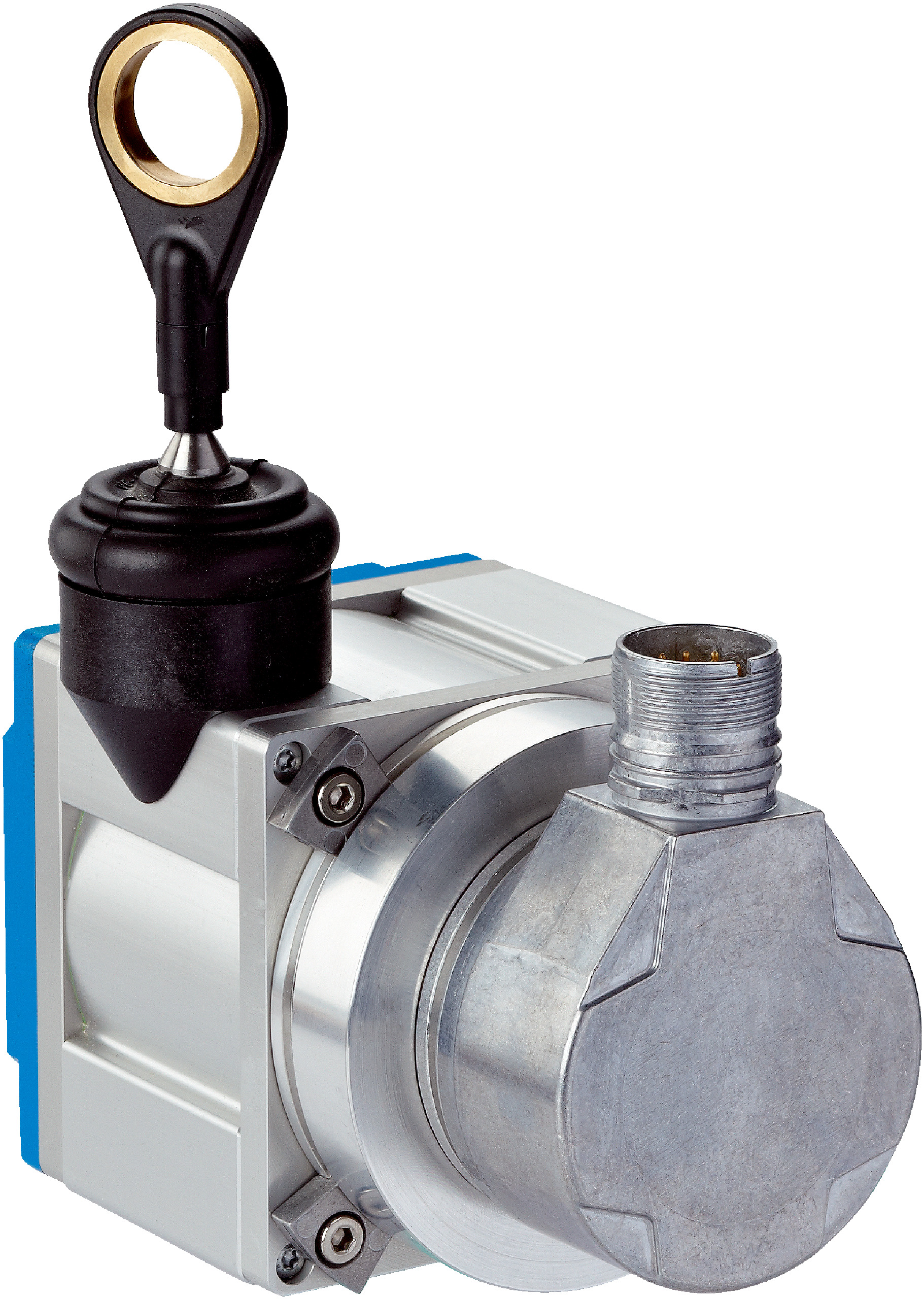

Wire Draw Encoder PRF08-A1AM0240 | 0.02 mm Resolution | IP64 Rated | by SICK
The Wire Draw Encoder PRF08-A1AM0240 offers high measurement accuracy with a 0.02 mm resolution, making it ideal for industrial automation and safety-related applications. With a robust aluminum housing and an impressive operating temperature range of -30°C to +70°C, this encoder ensures reliable performance in demanding environments. Its programmable incremental interface and long wire draw length of 2.2 meters make it a versatile choice for machine control and monitoring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

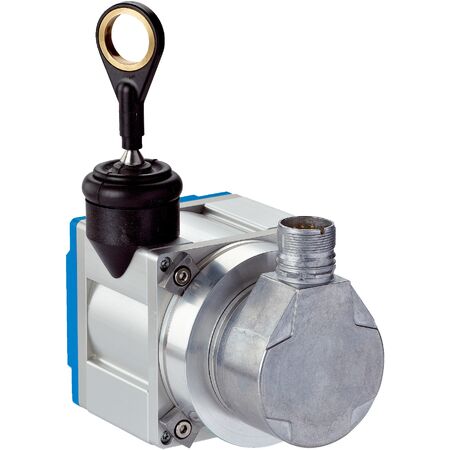

Product Name/Title: Wire Draw Encoder PRF08-A1AM0240 | 0.02 mm Resolution | IP64 Rated | by SICK
Brand: SICK
SKU: 1034323
Alternatively Known As: Wire Draw Encoder, Incremental Wire Encoder, Length Measurement Encoder, Safety Wire Draw Sensor
Technical Specifications
- Measurement range: 0 m to 2 m
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Incremental / TTL / RS-422
- Supply voltage: 4.5 V to 5.5 V
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Mounted encoder model: DFS60, DFS60B-S1MA10000
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: -30°C to +70°C
- MTTFD: 300 years (EN ISO 13849-1)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.6 kg
Key Features
- High measurement accuracy with 0.02 mm resolution
- Robust aluminum housing with anodized and nickel-plated finish
- Programmable incremental encoder with TTL/RS-422 interface
- Long wire draw length of 2.2 meters with 1,000,000 cycle life
- Operating temperature range from -30°C to +70°C
- IP64 rated enclosure with IP67 for mounted mechanic
- Spring return force between 6 N and 14 N
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and industrial safety standards to ensure proper configuration and compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine control and monitoring systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.7 W reduces energy usage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PRF08-A1AM0240 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety measurement applications.
