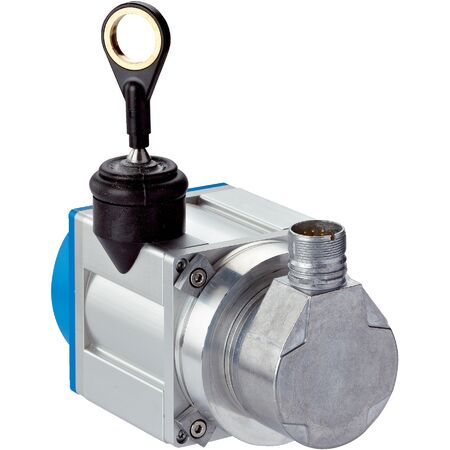

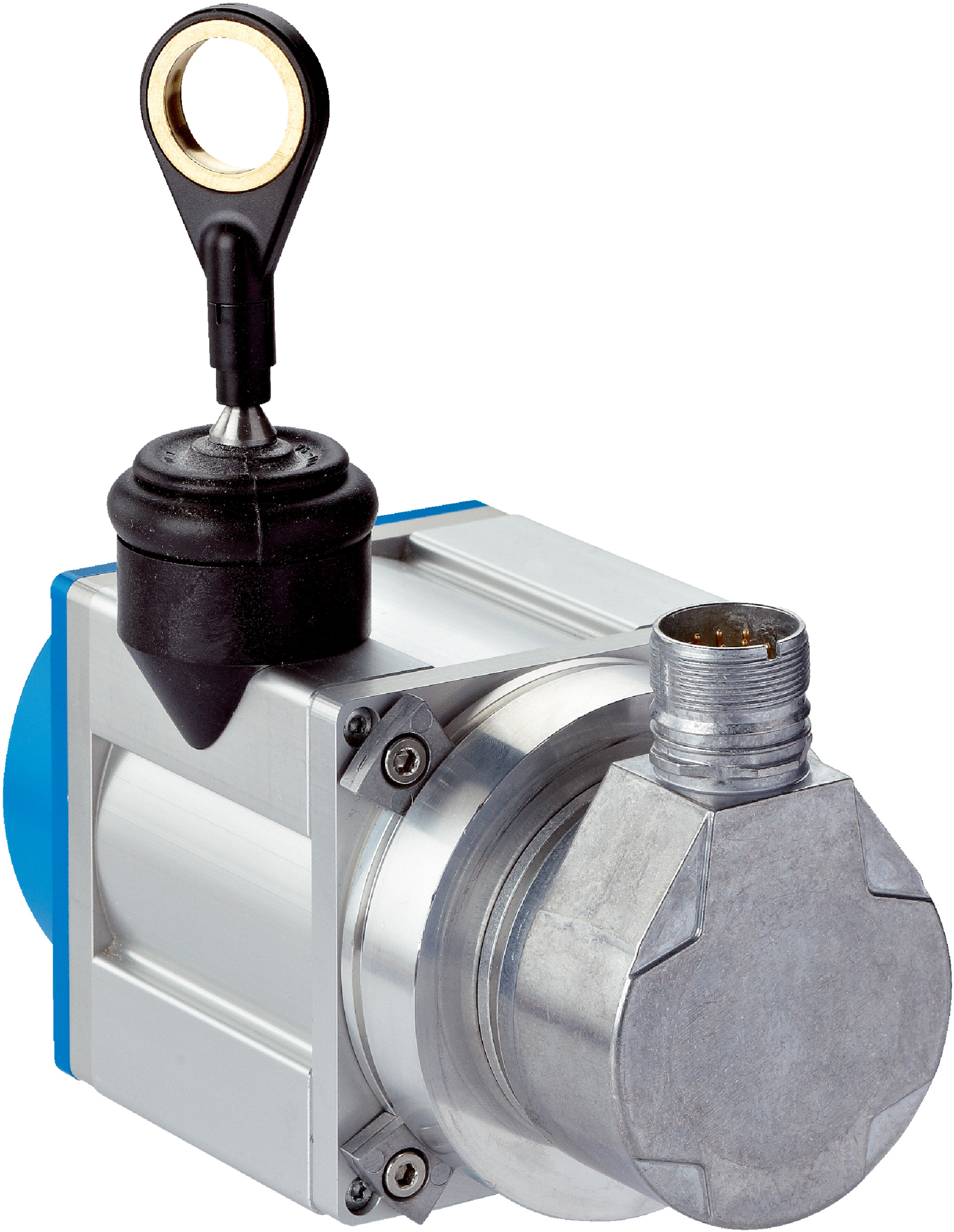

Wire Draw Encoder PRF08-A1AM0340 | 0-3m Measurement Range | 0.03mm Resolution | IP64 Rated | by SICK
The Wire Draw Encoder PRF08-A1AM0340 offers a measurement range of 0 m to 3 m with high resolution of 0.03 mm, making it ideal for industrial automation and safety systems. Designed for precise linear displacement measurement, it features programmable settings and a robust aluminum housing, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Encoder PRF08-A1AM0340 | 0-3m Measurement Range | 0.03mm Resolution | IP64 Rated | by SICK
Brand: SICK
SKU: 1034896
Alternatively Known As: Wire Draw Encoder, Incremental Wire Encoder, Linear Position Sensor, Safety Wire Draw Encoder
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Measurement range: 0 m to 3 m
- Encoder type: Incremental encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Incremental / TTL / RS-422
- Programmable/configurable encoder settings
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 V to 5.5 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Length of wire pulled out per revolution: 200 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 40 m/s²
- Operating speed: 8 m/s
- Mounted encoder model: DFS60, DFS60B-S1MA10000
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: –30 °C to +70 °C
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 1.8 kg
Key Features
- Measurement range of 0 m to 3 m
- High resolution of 0.03 mm with incremental encoders
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable encoder settings
- Robust aluminum housing with anodized and nickel-plated finish
- IP64 rated enclosure with IP67 for mounted mechanic
- Operating temperature range from –30 °C to +70 °C
- Low power consumption ≤ 0.7 W
- Spring return force between 6 N and 14 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and safety-related measurement devices to ensure compliance with safety standards.
Applications
- Industrial automation and safety systems
- Measurement and control of linear displacement
- Machine safety monitoring and position feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long life cycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PRF08-A1AM0340 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
