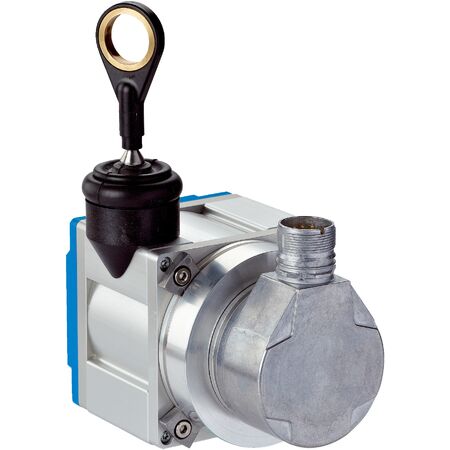

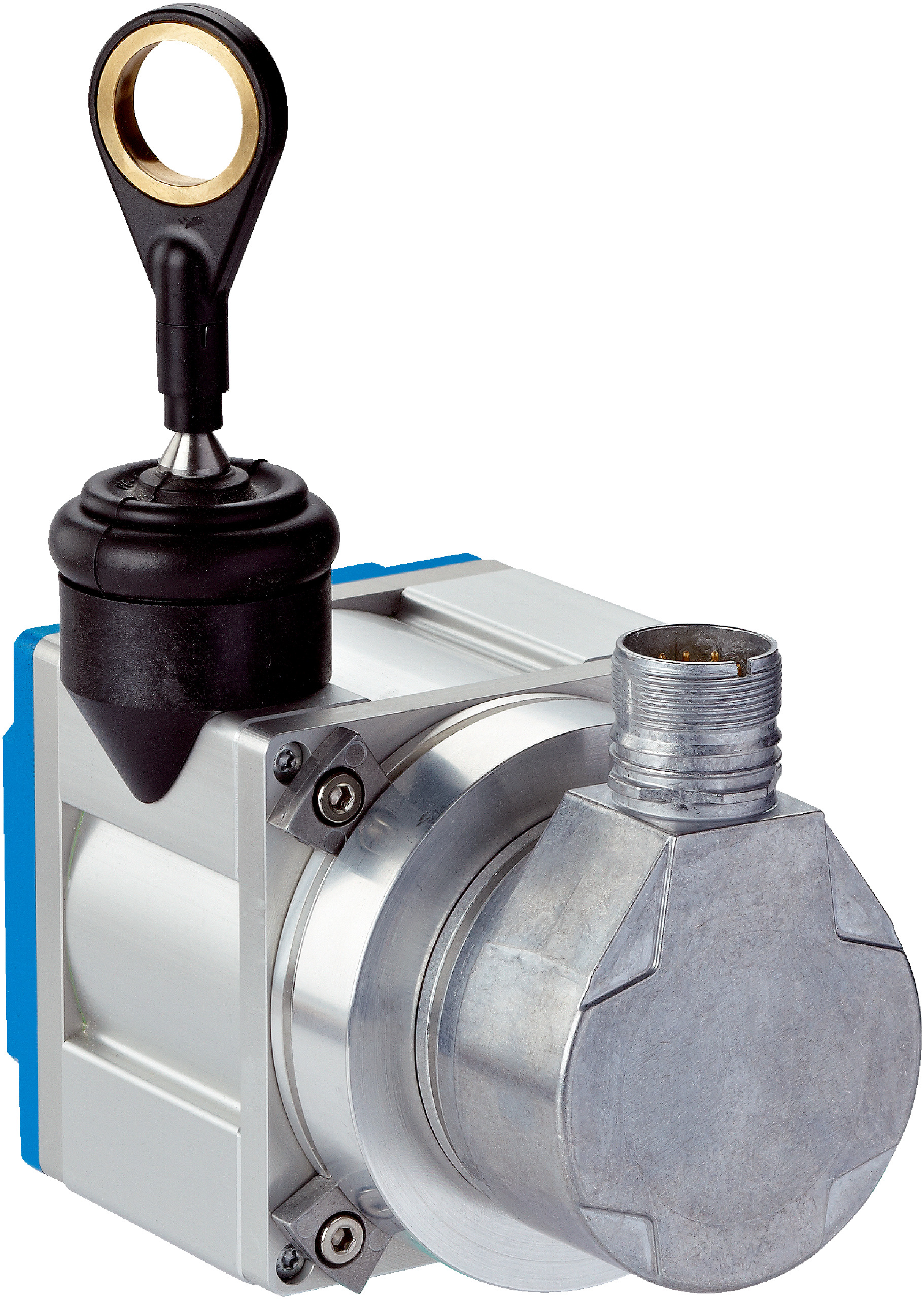

Wire Draw Encoder PRF08-E1AM0240 | 300 Years MTTFD | 0.02 mm Resolution | IP64 Rated | by SICK
The Wire Draw Encoder PRF08-E1AM0240 is designed for precision in industrial automation, featuring a measurement range of 0 m to 2 m and a high resolution of 0.02 mm. With a remarkable mean time to dangerous failure (MTTFD) of 300 years, this encoder ensures reliability and safety in length measurement tasks. Ideal for manufacturing processes and machine safety monitoring, it operates efficiently in temperatures from -30 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Encoder PRF08-E1AM0240 | 300 Years MTTFD | 0.02 mm Resolution | IP64 Rated | by SICK
Brand: SICK
SKU: 1034335
Alternatively Known As: Wire Draw Encoder, Incremental Wire Encoder, Safety Wire Draw Sensor, Length Measurement Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Measurement range: 0 m to 2 m
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Incremental / HTL / Push pull
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP67)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.6 kg
Key Features
- High mean time to dangerous failure (MTTFD) of 300 years according to EN ISO 13849-1
- Measurement range of 0 m to 2 m with high resolution of 0.02 mm
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm for precise measurements
- Programmable incremental encoders with configurable electrical interface and line count
- Robust aluminum housing with anodized and nickel-plated die cast components
- Operating temperature range from -30 °C to +70 °C
- IP64 rated enclosure with IP67 rating for mounted mechanic
- Low power consumption ≤ 0.7 W without load
- Spring return force between 6 N and 14 N
- Life expectancy of wire draw mechanism typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety and measurement equipment to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation and safety-related measurement tasks
- Position and length measurement in manufacturing processes
- Machine safety monitoring and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long life cycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PRF08-E1AM0240 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety measurement applications.
