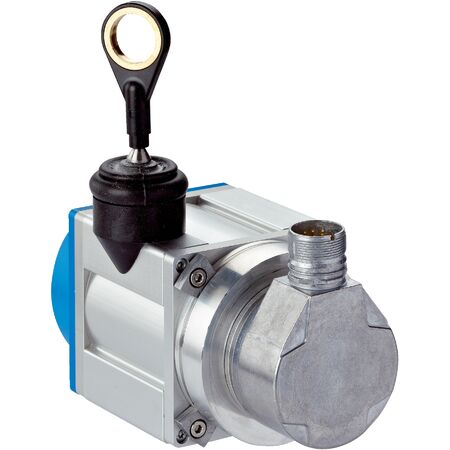

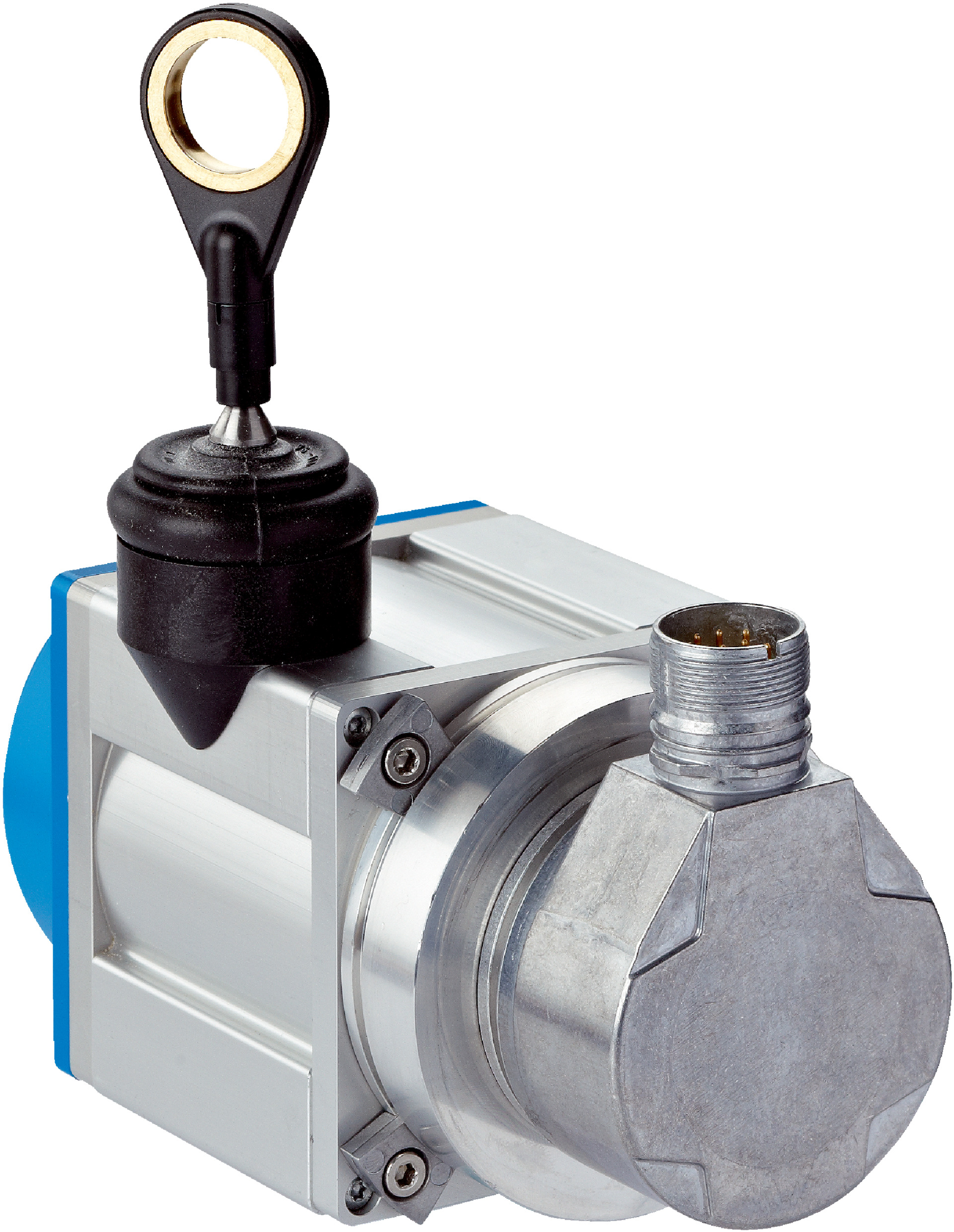

Wire Draw Encoder PRF08-E1AM0340 | 0 to 3 m Measurement Range | 0.03 mm Resolution | IP64 Rated | by SICK
The Wire Draw Encoder PRF08-E1AM0340 offers a measurement range of 0 to 3 m with a high resolution of 0.03 mm, making it ideal for precise position and length measurement in industrial automation. Designed for robust performance, it features an IP64 enclosure rating and operates efficiently within -30 °C to +70 °C, ensuring reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Encoder PRF08-E1AM0340 | 0 to 3 m Measurement Range | 0.03 mm Resolution | IP64 Rated | by SICK
Brand: SICK
SKU: 1034898
Alternatively Known As: Wire Draw Encoder, Cable Extension Encoder, Length Measurement Encoder, Incremental Wire Encoder
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution (wire draw + encoder): 0.03 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Incremental / HTL / Push pull
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: -30 °C to +70 °C
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.8 kg
Key Features
- Measurement range of 0 m to 3 m
- High resolution of 0.03 mm with incremental encoders
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable incremental / HTL / Push pull communication interface
- Robust aluminum housing with anodized and nickel-plated finish
- Spring return force between 6 N and 14 N
- Operating temperature range from -30 °C to +70 °C
- IP64 enclosure rating, IP67 for mounted mechanic
- Low power consumption ≤ 0.7 W
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper configuration and safety compliance.
Applications
- Industrial automation and measurement
- Position and length measurement in manufacturing
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PRF08-E1AM0340 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
