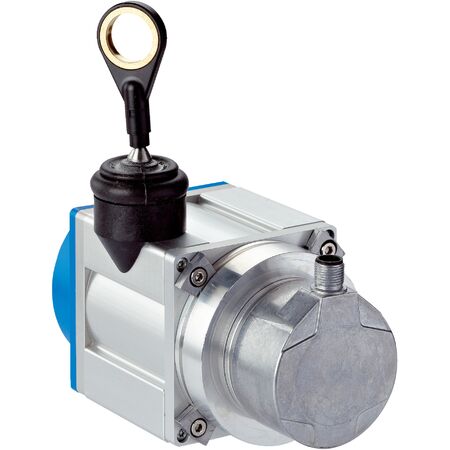

Wire Draw Encoder PRF08-P1CM0340 | 0 m to 3 m Measurement Range | 0.03 mm Resolution | IP64 Rated | by SICK
The Wire Draw Encoder PRF08-P1CM0340 offers a measurement range of 0 m to 3 m with high precision at 0.03 mm resolution, making it ideal for industrial automation and safety-related monitoring. Built for durability, it features an IP64 enclosure rating and operates effectively in temperatures from -30 °C to +70 °C, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Measurement range: 0 m to 3 m
- Resolution (wire draw + encoder): 0.03 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Incremental / TTL / HTL
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Length of wire pulled out per revolution: 200 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 40 m/s²
- Operating speed: 8 m/s
- Mounted encoder: DFS60, DFS60B-S1PC10000
- Enclosure rating: IP64; mounted mechanic IP67; Encoder IEC 60529
- Operating temperature range: –30 °C to +70 °C
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.8 kg
Key Features
- Measurement range of 0 m to 3 m
- High resolution of 0.03 mm
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable output with factory TTL setting
- Robust aluminum housing with anodized and nickel-plated finish
- Operating temperature range from –30 °C to +70 °C
- IP64 enclosure rating with IP67 for mounted mechanic and encoder
- Spring return force between 6 N and 14 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Measurement and control systems requiring incremental encoders
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 0.7 W reduces energy usage
- Durable materials and long life cycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PRF08-P1CM0340 is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
