Wire Draw Encoder PRF13-C1AM2020 | 20m Measurement Range | 0.03mm Resolution | IP64/IP67 Rated | by SICK
The Wire Draw Encoder PRF13-C1AM2020 offers a high measurement range of up to 20 meters and an impressive resolution of 0.03 mm, making it ideal for industrial automation and safety systems. Designed for precise linear displacement measurement, this incremental encoder features a robust aluminum and plastic housing with IP64/IP67 protection, ensuring durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

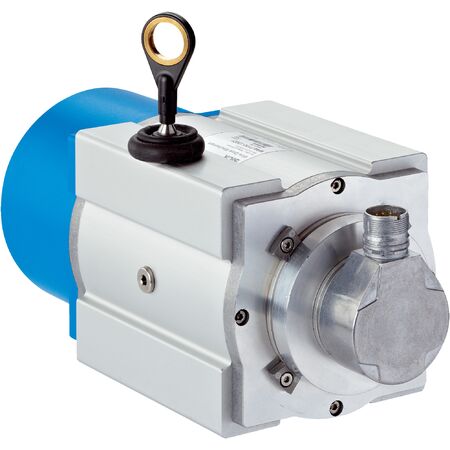

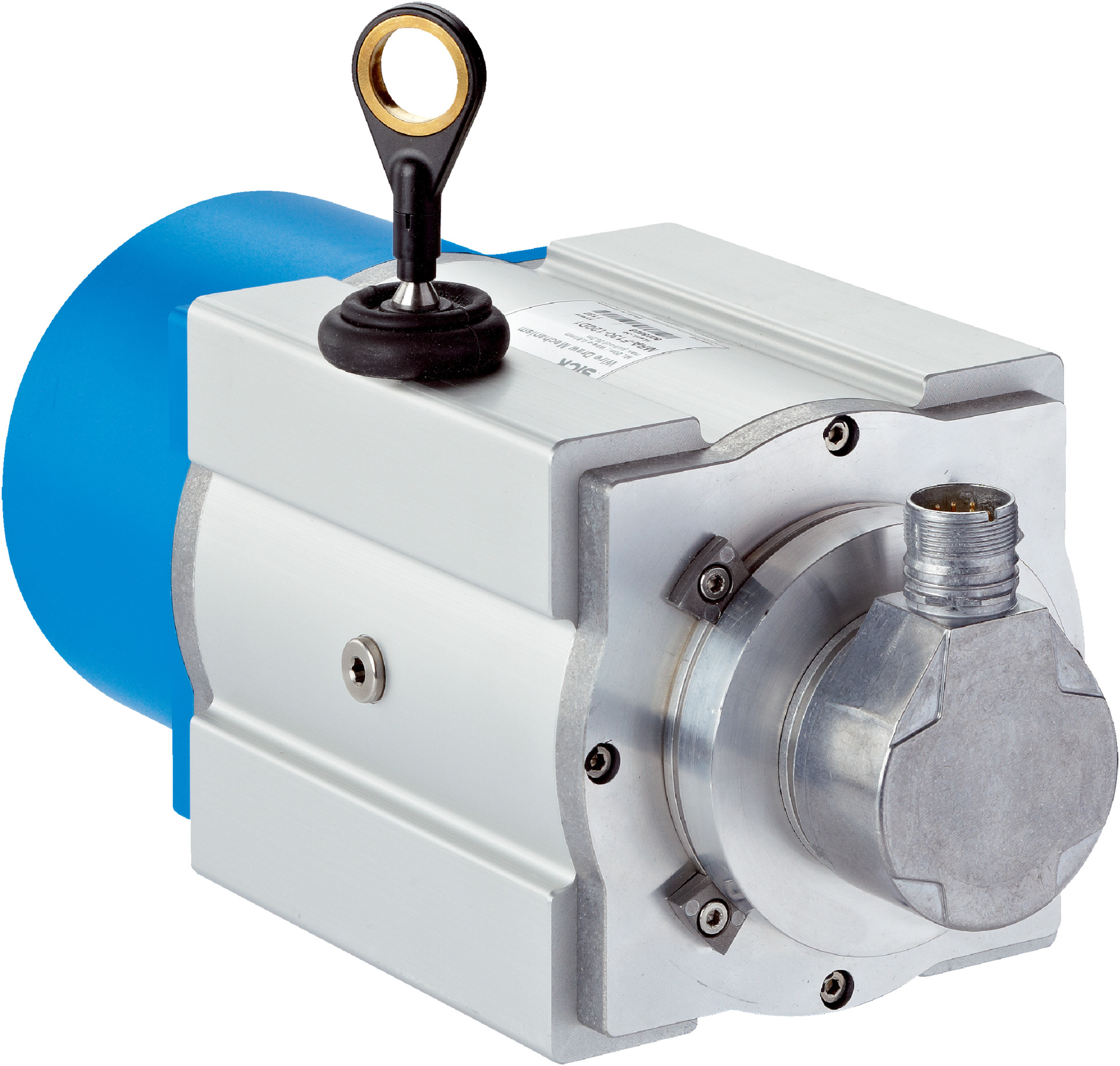

Product Name/Title: Wire Draw Encoder PRF13-C1AM2020 | 20m Measurement Range | 0.03mm Resolution | IP64/IP67 Rated | by SICK
Brand: SICK
SKU: 1034332
Alternatively Known As: Wire Draw Encoder, Cable Extension Encoder, Linear Position Sensor, Incremental Wire Encoder
Technical Specifications
- Measurement range: 0 m to 20 m
- Encoder type: Incremental encoders
- Resolution (wire draw + encoder): 0.03 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: Incremental / TTL / RS-422
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Length of wire pulled out per revolution: 332.4 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 30 m/s²
- Operating speed: 6 m/s
- Mounted encoder model: DFS60, DFS60B-S1MA10000
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.3 kg
Key Features
- High measurement range up to 20 m
- Incremental encoder with programmable/configurable interface
- High resolution of 0.03 mm with excellent repeatability and linearity
- Robust aluminum and plastic housing with IP64/IP67 protection
- Long life wire draw mechanism with up to 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- Low power consumption of ≤ 0.7 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety and electrical standards to ensure proper setup and compliance.
Applications
- Industrial automation and safety systems
- Measurement and control of linear displacement
- Machine safety monitoring and position feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PRF13-C1AM2020 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety applications requiring precise linear measurement.
