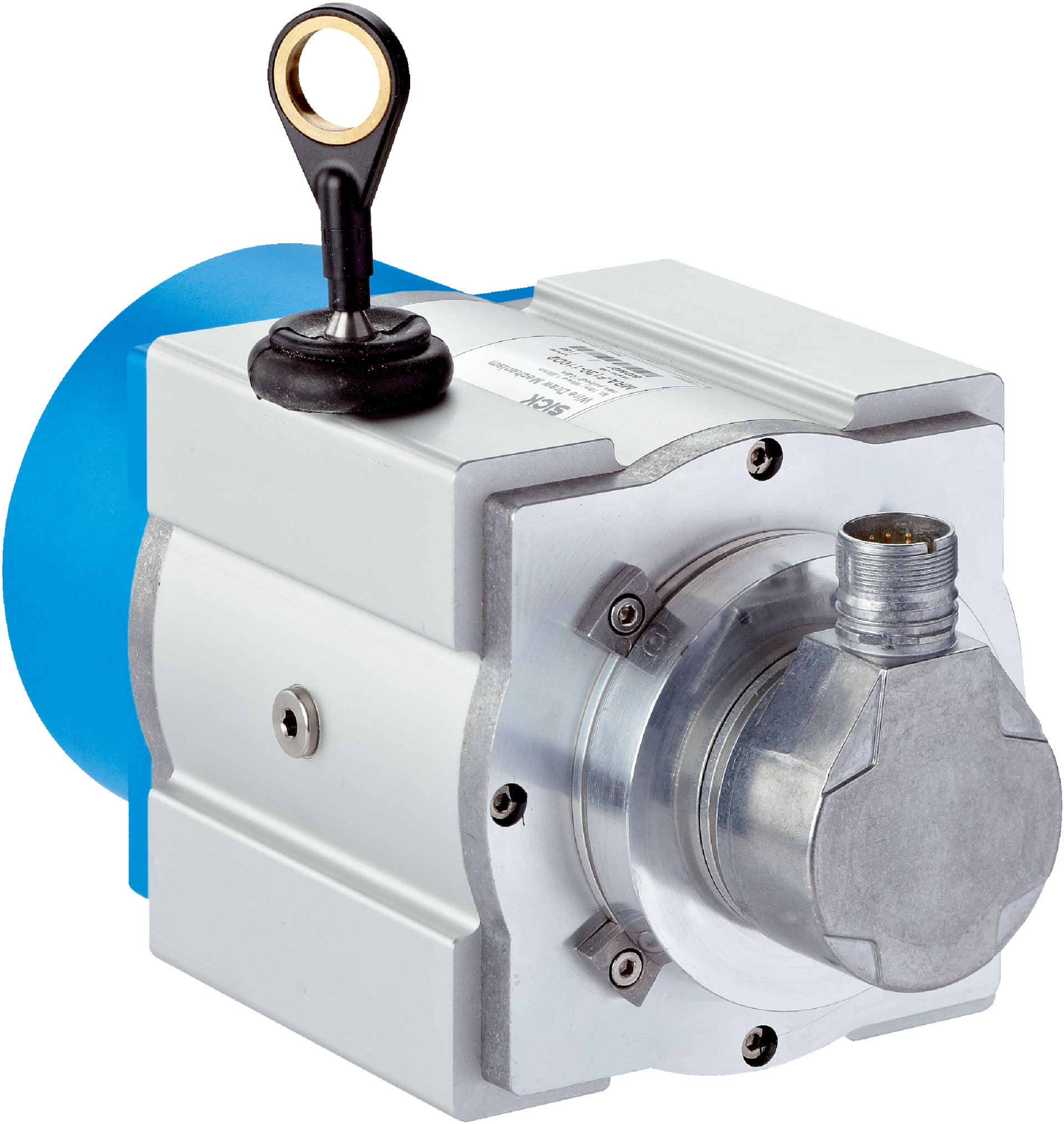

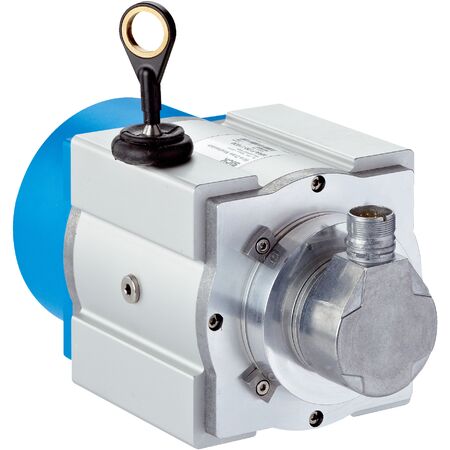

Wire Draw Encoder PRF13-E1AM1020 | 10 m Measurement Range | 0.03 mm Resolution | IP64 Rated | by SICK
The Wire Draw Encoder PRF13-E1AM1020 offers a measurement range of up to 10 m with a high resolution of 0.03 mm, making it ideal for industrial automation and safety systems. Designed for precise linear displacement measurement, this encoder features robust aluminum and plastic housing with IP64 protection, ensuring durability and reliability in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Encoder PRF13-E1AM1020 | 10 m Measurement Range | 0.03 mm Resolution | IP64 Rated | by SICK
Brand: SICK
SKU: 1034337
Alternatively Known As: Wire Draw Encoder, Cable Extension Encoder, Linear Position Sensor, Safety Encoder
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Incremental encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: Incremental / HTL / Push pull
- Programmable interface and line count up to 10,000 lines
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire: Highly flexible stranded 1.4401 stainless steel V4A, diameter 1.35 mm
- Housing material: Anodised aluminum and plastic
- Spring return force: 10 N to 20 N
- Wire acceleration: 40 m/s²
- Operating speed: 8 m/s
- Life expectancy: Typically 1,000,000 cycles
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.8 kg
Key Features
- Measurement range up to 10 m
- High resolution of 0.03 mm
- Repeatability ≤ 1.5 mm
- Linearity ≤ ± 2 mm
- Hysteresis ≤ 3 mm
- Programmable incremental encoder interface (TTL/HTL/Push pull)
- Robust aluminum and plastic housing with IP64/IP67 protection
- Operating temperature range from -30 °C to +70 °C
- Long service life with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety and encoder systems to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation and safety systems
- Measurement and control of linear displacement
- Machine safety monitoring and position feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.7 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PRF13-E1AM1020 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety applications requiring precise linear measurement.
