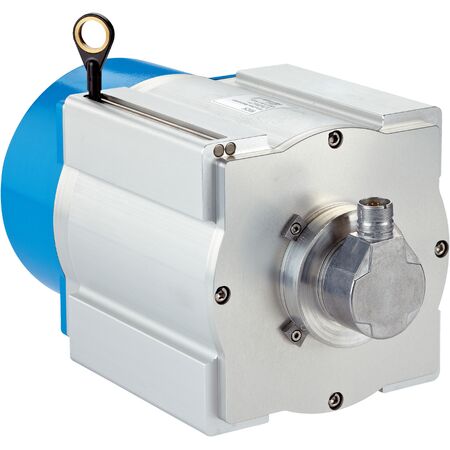

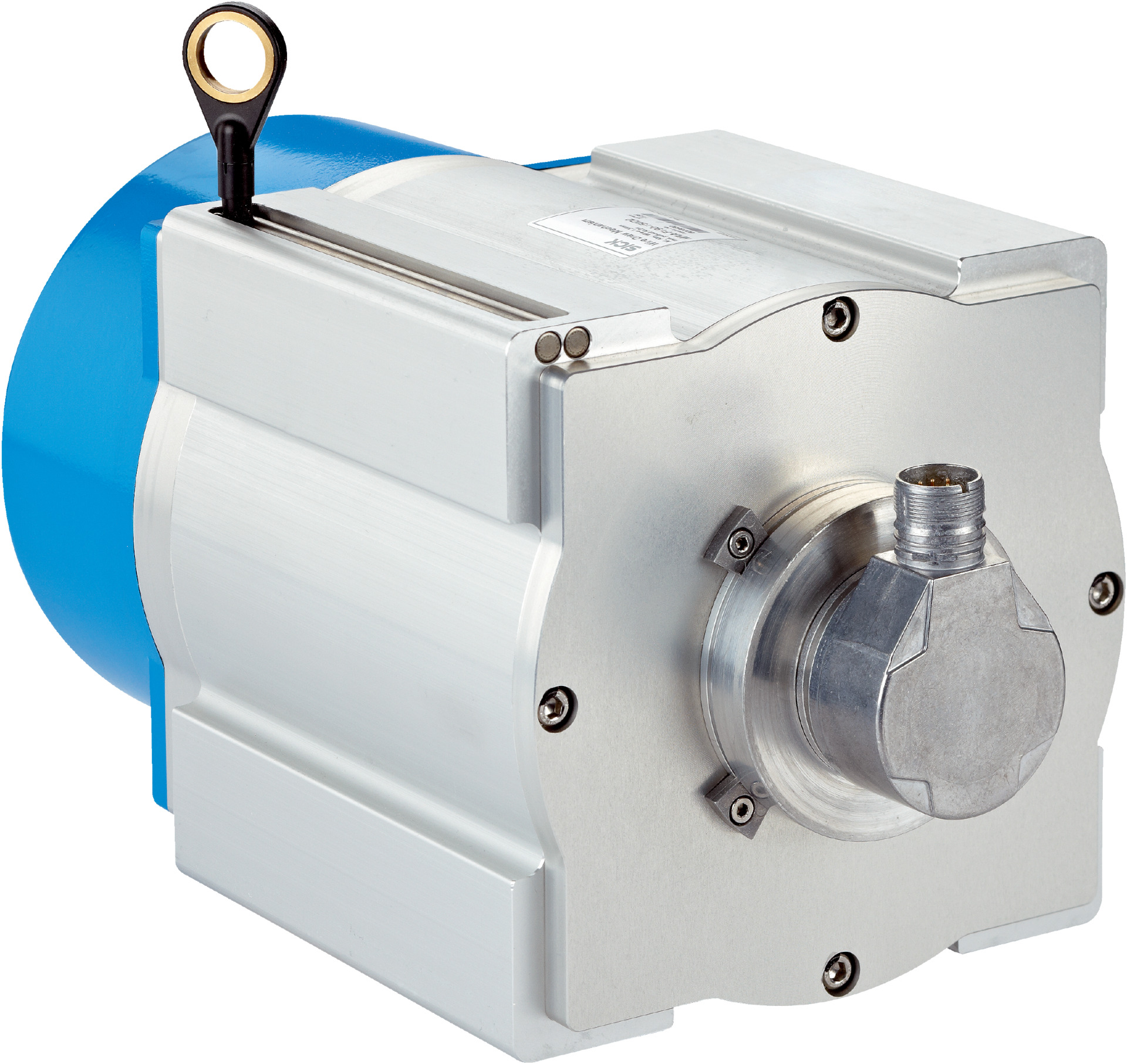

Wire Draw Encoder PRF19-C1AM5010 | 50m Measurement Range | 0.05mm Resolution | IP31 Rated | by SICK
The Wire Draw Encoder PRF19-C1AM5010 offers a measurement range of up to 50 meters with a high resolution of 0.05 mm, making it ideal for precision length measurement in industrial automation. Designed for safety-related motion control, this encoder features a robust aluminum housing and operates effectively in temperatures from -30 °C to +70 °C, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Encoder PRF19-C1AM5010 | 50m Measurement Range | 0.05mm Resolution | IP31 Rated | by SICK
Brand: SICK
SKU: 1034334
Alternatively Known As: Wire Draw Encoder, Incremental Wire Encoder, Safety Wire Encoder, Length Measurement Encoder
Technical Specifications
- Measurement range: 0 m to 50 m
- Encoder type: Incremental encoders
- Resolution: 0.05 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: Incremental / TTL / RS-422
- Programmable/configurable encoder settings
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 18 N to 37 N
- Length of wire pulled out per revolution: 491.5 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 18 m/s²
- Operating speed: 4 m/s
- Mounted encoder model: DFS60, DFS60B-S1MA10000
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP31 (mechanic IP67)
- Dimensions (H x L x W): 300mm x 500mm x 300mm
- Weight: 16.8 kg
Key Features
- Measurement range up to 50 m
- High resolution of 0.05 mm
- Repeatability ≤ 5 mm
- Linearity ≤ ± 2 mm
- Hysteresis ≤ 10 mm
- Programmable incremental encoder with TTL/RS-422 interface
- Robust aluminum housing with anodized and nickel-plated finish
- Operating temperature range from –30 °C to +70 °C
- IP31 enclosure rating, mounted mechanic IP67
- Long life wire draw mechanism with approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety and electrical standards to ensure proper configuration and compliance.
Applications
- Industrial automation and measurement
- Safety-related motion control
- Precision length measurement in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 0.7 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PRF19-C1AM5010 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety measurement applications.
