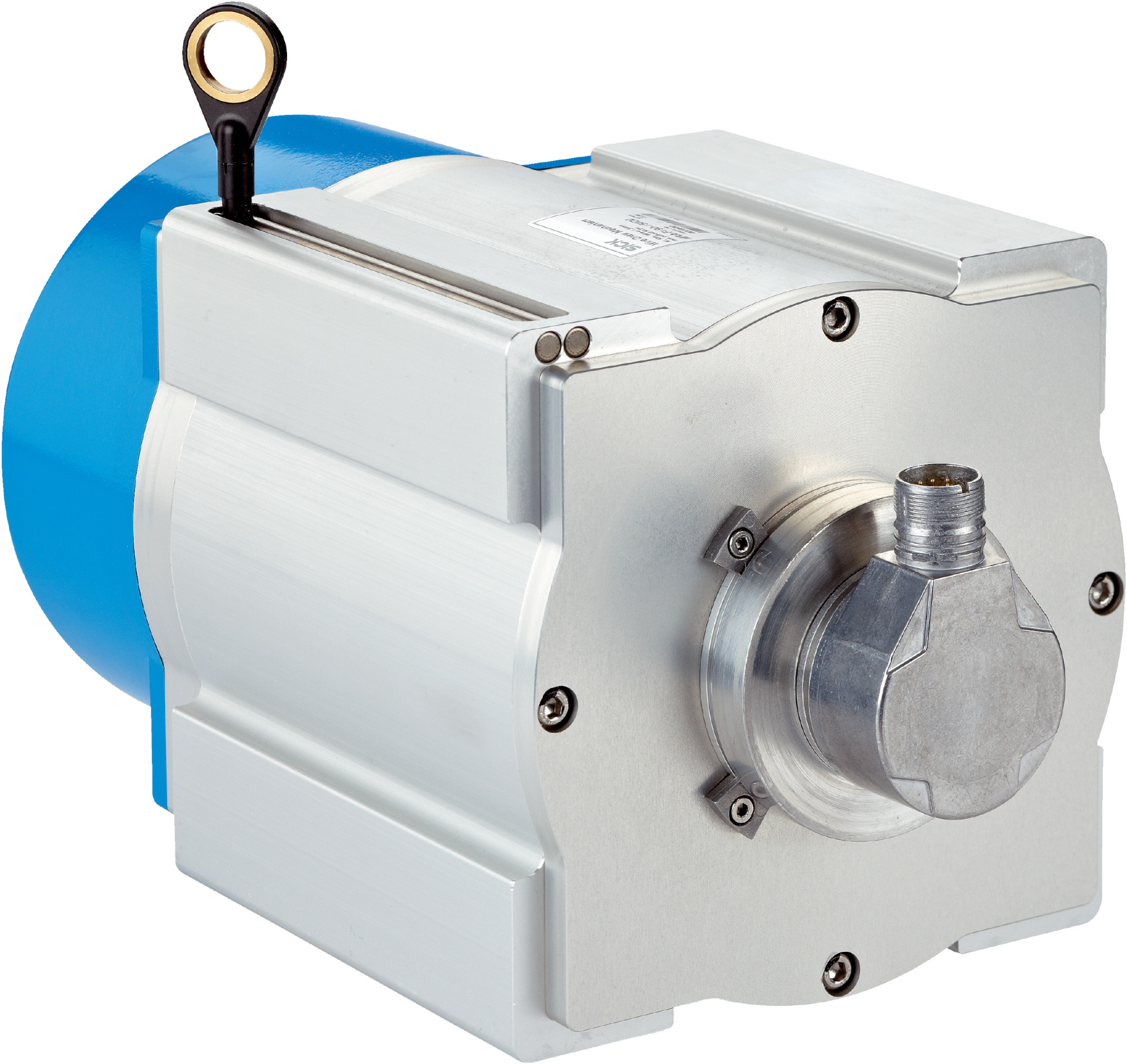

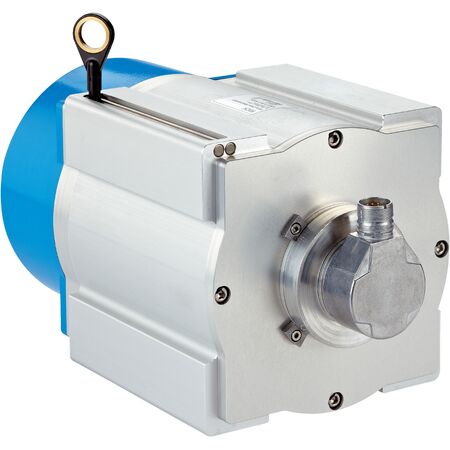

Wire Draw Encoder PRF19-E1AM5010 | 300 Years MTTFD | 50m Measurement Range | 0.05mm Resolution | by SICK
The Wire Draw Encoder PRF19-E1AM5010 is designed for precise length measurement in industrial automation, featuring a remarkable 300 years mean time to dangerous failure (MTTFD) and a measurement range of up to 50 meters. With an incremental resolution of 0.05 mm and robust aluminum housing, it ensures reliability in safety-related applications and machine monitoring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Encoder PRF19-E1AM5010 | 300 Years MTTFD | 50m Measurement Range | 0.05mm Resolution | by SICK
Brand: SICK
SKU: 1034340
Alternatively Known As: Wire Draw Encoder, Length Measurement Encoder, Incremental Wire Encoder, Safety Wire Draw Sensor
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Measurement range: 0 m to 50 m
- Encoder type: Incremental encoders
- Resolution: 0.05 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: Incremental / HTL / Push pull
- Programmable/configurable interface
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 18 N to 37 N
- Length of wire pulled out per revolution: 491.5 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP31 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: –30 °C to +70 °C
- Dimensions (H x L x W): 300mm x 400mm x 300mm
- Weight: 16.8 kg
Key Features
- High mean time to dangerous failure (MTTFD) of 300 years according to EN ISO 13849-1
- Measurement range up to 50 meters
- Incremental encoders with resolution of 0.05 mm
- Repeatability ≤ 5 mm and linearity ≤ ± 2 mm
- Programmable and configurable communication interface (Incremental / HTL / Push pull)
- Robust aluminum housing with anodized and nickel-plated die cast parts
- Operating temperature range from –30 °C to +70 °C
- IP31 enclosure rating with IP67 for mounted mechanic
- Low power consumption ≤ 0.7 W without load
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with electrical and safety standards to ensure proper configuration and compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PRF19-E1AM5010 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
