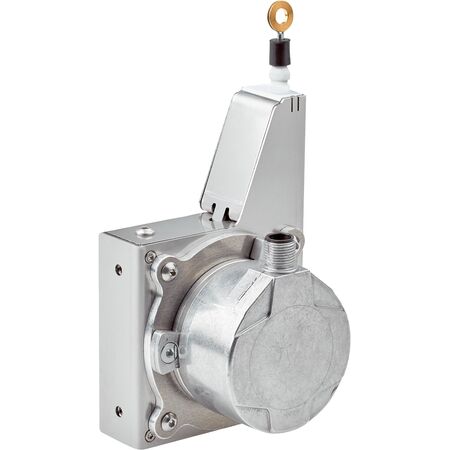

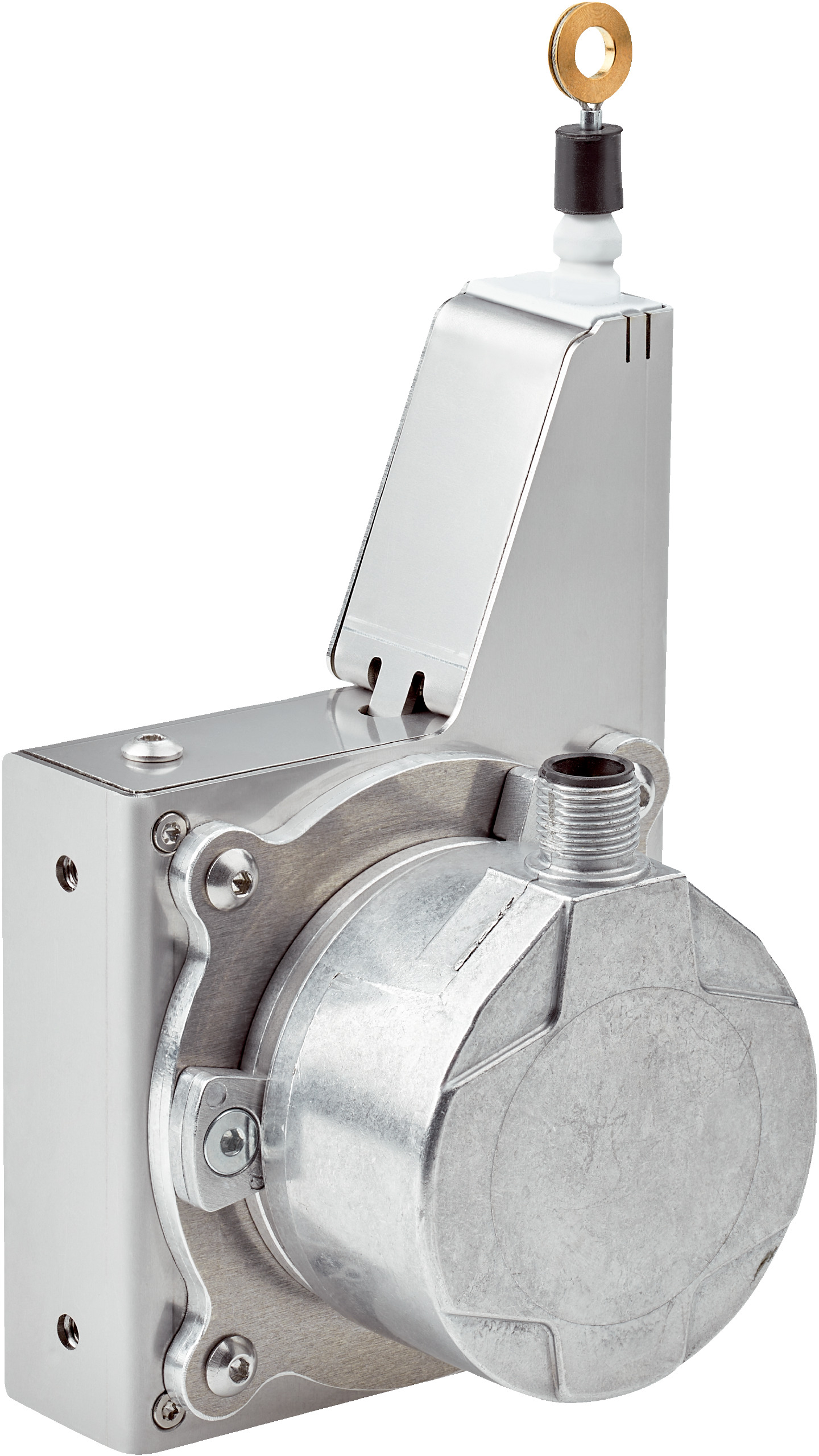

Wire Draw Encoder Sensor | 0.004 mm Resolution | 3 m Measurement Range | IP60 Rated | by SICK
The Wire Draw Encoder Sensor offers high measurement accuracy with a resolution of 0.004 mm and a measurement range of 0 m to 3 m. Designed for industrial automation, it features a robust stainless steel wire draw mechanism with a life of 1,000,000 cycles, making it ideal for precise length measurement and safety monitoring in machinery. With a wide operating temperature range from -30 °C to +70 °C, this sensor ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.004 mm
- Repeatability: ≤ 0.3 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 1.2 mm
- Communication interface: Incremental / TTL / HTL
- Supply voltage: 4.5 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Measuring wire material: Stainless steel 1.4401
- Measuring wire diameter: 0.81 mm
- Spring return force: 8 N to 10 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Mounted encoder model: DFS60, DFS60A-S1PC65536
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP60 (mechanic IP67)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.9 kg
Key Features
- High measurement accuracy with resolution of 0.004 mm
- Robust stainless steel wire draw mechanism with 1,000,000 cycle life
- Wide operating temperature range from -30 °C to +70 °C
- Programmable and configurable communication interface
- Low power consumption of ≤ 0.7 W
- IP60 enclosure rating with IP67 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related monitoring in machinery
- Position and speed measurement in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption minimizes energy usage during operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PFV08-P1CM03B300 Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
