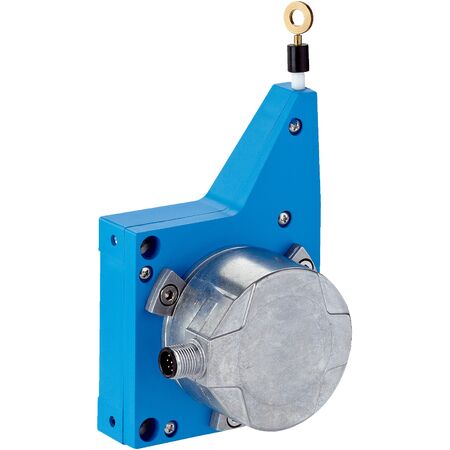

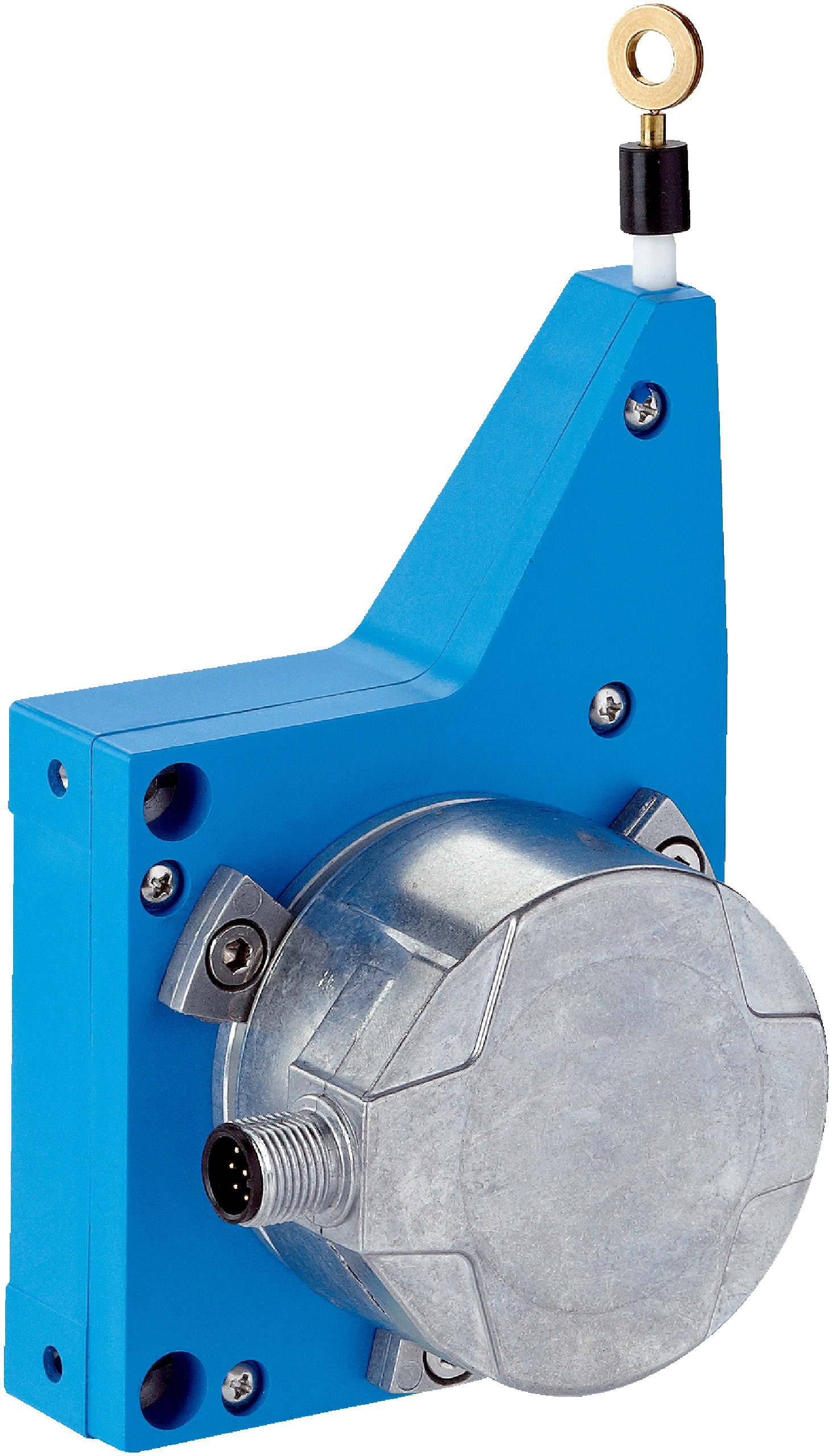

Wire Draw Encoder Sensor | 0.01 mm Resolution | IP50 & IP67 Rated | by SICK
The Wire Draw Encoder Sensor offers high measurement accuracy with a 0.01 mm resolution, making it ideal for industrial automation and safety-related applications. Designed for durability, it features a robust plastic Noryl housing and stainless steel wire, ensuring reliable performance in challenging environments with an operating temperature range of -30°C to +70°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.01 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Mounted encoder: DFS60, DFS60A-S1EC16384
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP50, mounted mechanic IP67, Encoder IEC 60529
- Operating temperature range: -30°C to +70°C
- Safety parameter MTTFD: 300 years (EN ISO 13849-1)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.55 kg
Key Features
- High measurement accuracy with 0.01 mm resolution
- Robust design with plastic Noryl housing and stainless steel wire
- Long life wire draw mechanism with approximately 1,000,000 cycles
- Operating temperature range from -30°C to +70°C
- IP50 enclosure rating with IP67 for mounted mechanic
- Low power consumption ≤ 0.5 W
- Communication via Incremental / HTL / Push pull interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety sensor systems to ensure compliance and optimal performance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Measurement and control systems in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PFG08-E1CM0371 Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety measurement applications.
