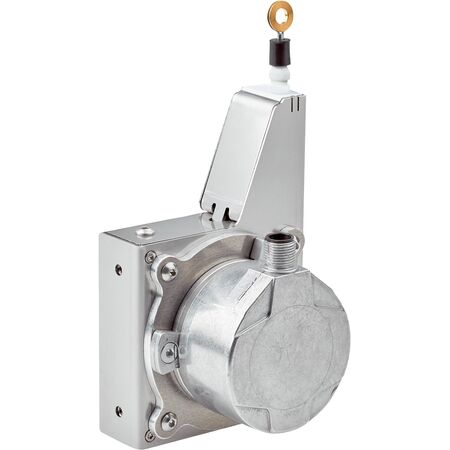

Wire Draw Encoder Sensor PFV08-A1CM03B300 | 0.01 mm Resolution | IP60 & IP67 Rated | by SICK
The Wire Draw Encoder Sensor PFV08-A1CM03B300 offers high measurement accuracy with a 0.01 mm resolution, making it ideal for industrial automation and safety-related applications. Built with robust stainless steel housing, it ensures a long service life of up to 1,000,000 cycles, operating efficiently in temperatures from -30°C to +70°C. This encoder features an incremental communication interface, perfect for precise length measurement in machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.01 mm
- Repeatability: ≤ 0.3 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 1.2 mm
- Communication interface: Incremental / TTL / RS-422
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 V to 5.5 V
- Operating current: 40 mA (without load)
- Measuring wire material: Stainless steel 1.4401
- Measuring wire diameter: 0.81 mm
- Spring return force: 8 N to 10 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Mounted encoder: DFS60, DFS60A-S1AC16384
- Operating temperature range: -30°C to +70°C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP60 (mechanic IP67)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.9 kg
Key Features
- High measurement accuracy with 0.01 mm resolution
- Robust stainless steel housing and wire draw mechanism
- Long service life with up to 1,000,000 cycles
- Operating temperature range from -30°C to +70°C
- IP60 enclosure rating with IP67 for mounted mechanic
- Incremental encoder with TTL/RS-422 communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low operating current (40 mA) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PFV08-A1CM03B300 Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
