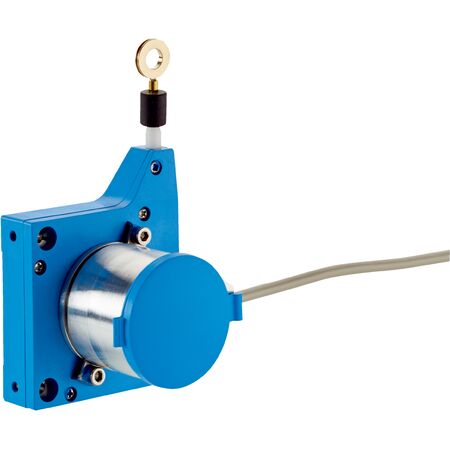

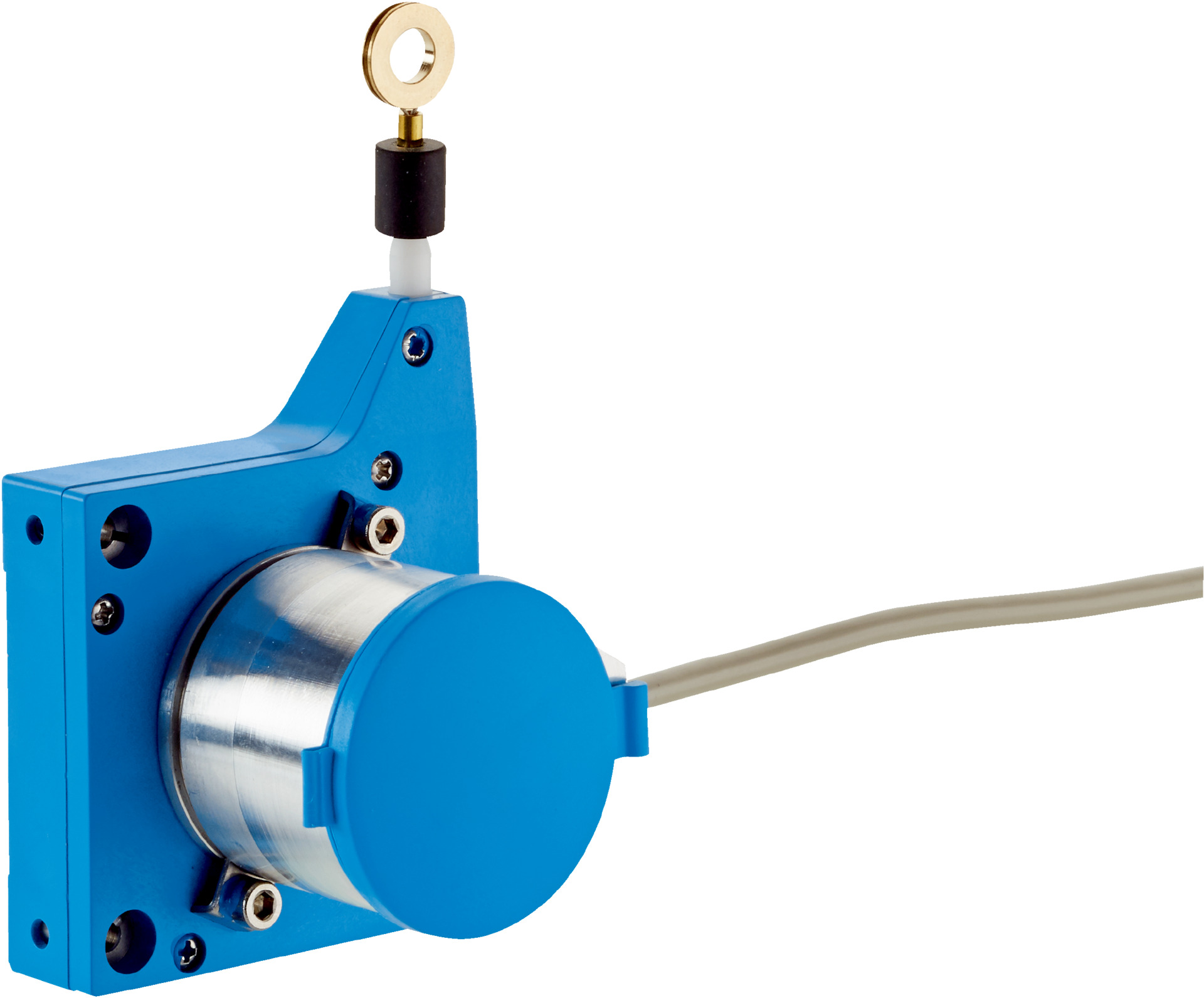

Wire Draw Encoder Sensor | 0.04 mm Resolution | IP50 Rated | 1.25 m Measurement Range | by SICK
The Wire Draw Encoder Sensor offers high measurement accuracy with a 0.04 mm resolution, making it ideal for industrial automation and safety-related applications. With a robust design featuring a stainless steel measuring wire and a long service life of up to 1,000,000 cycles, this sensor ensures reliable performance in machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 1.25 m
- Resolution: 0.04 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Analog / Voltage / 0...10 V
- Connection type: Cable, radial, 1.5 m
- Supply voltage: 19 V DC to 33 V DC
- Operating current: ≤ 80 mA
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A) with PA 12 sheath
- Measuring wire diameter: 0.45 mm
- Spring return force: 1 N to 1.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Mounted encoder model: ACM36, ACM36-L1K0-K01
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP50 (mechanic IP65, encoder)
- Dimensions (H x L x W): 50mm x 150mm x 50mm
- Weight: 0.18 kg
Key Features
- High measurement accuracy with 0.04 mm resolution
- Absolute encoder for precise position feedback
- Robust design with plastic Noryl housing and stainless steel measuring wire
- Long service life with up to 1,000,000 cycles
- Operating temperature range from -30°C to +70°C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-4
- IP50 enclosure rating, IP65 for mounted mechanic and encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption with operating current ≤ 80 mA
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BCG05-L1KM01PP Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety measurement applications.
