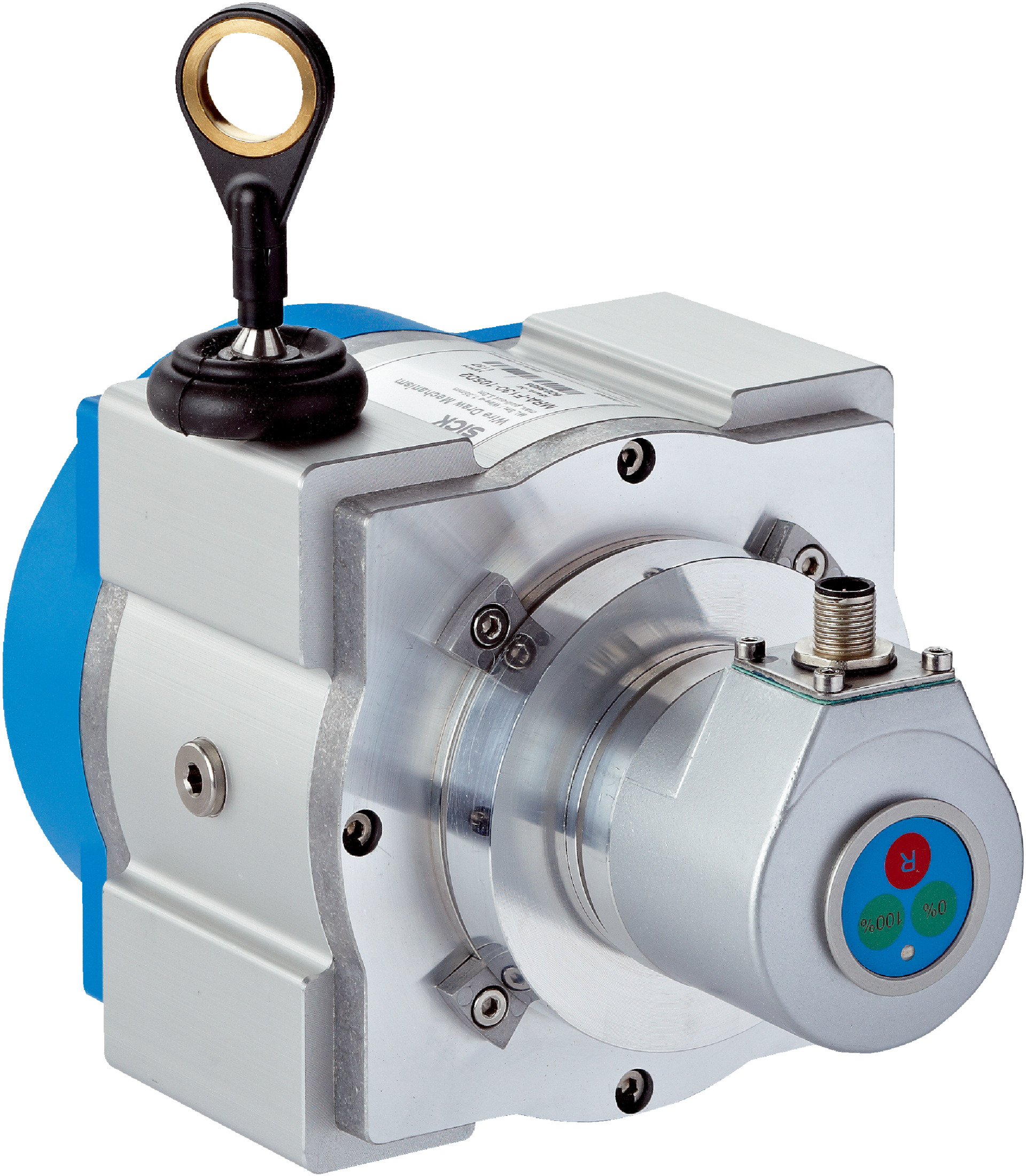

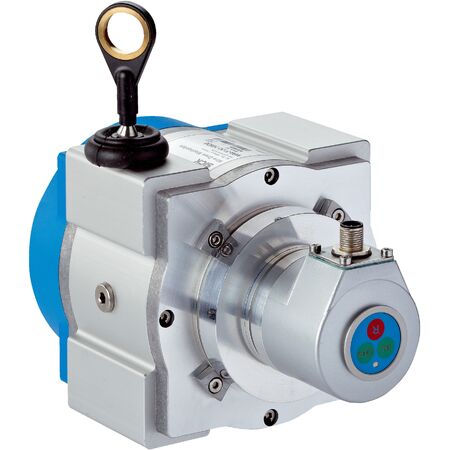

Wire Draw Encoder Sensor | 0.04 mm Resolution | 3 m Measurement Range | IP64 Rated | by SICK
The Wire Draw Encoder Sensor offers precise position measurement with a high resolution of 0.04 mm and a measurement range of up to 3 meters. Designed for industrial automation and safety-related applications, it features a robust aluminum housing and an IP64 enclosure rating, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.04 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Analog / Current / 4...20 mA
- Supply voltage: 18 V DC to 33 V DC
- Operating current: ≤ 80 mA (without load)
- Connection type: Male connector, M12, 5-pin, radial
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Mounted encoder: ACM60, ACM60B-S1KE13X06
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 600 years (EN ISO 13849-1)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.9 kg
Key Features
- Absolute encoder with high resolution of 0.04 mm
- Measurement range up to 3 meters
- Programmable and configurable communication interface
- Robust aluminum housing with anodized and nickel-plated finish
- Spring return force between 6 N and 14 N
- High operating speed up to 8 m/s
- Long life wire draw mechanism with approximately 1,000,000 cycles
- IP64 enclosure rating with IP67 for mounted mechanic
- Wide operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Measurement and control systems in manufacturing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption (≤ 80 mA)
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF08-K1EM03PP Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
