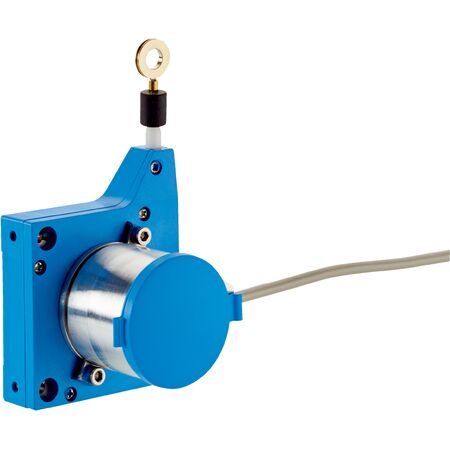

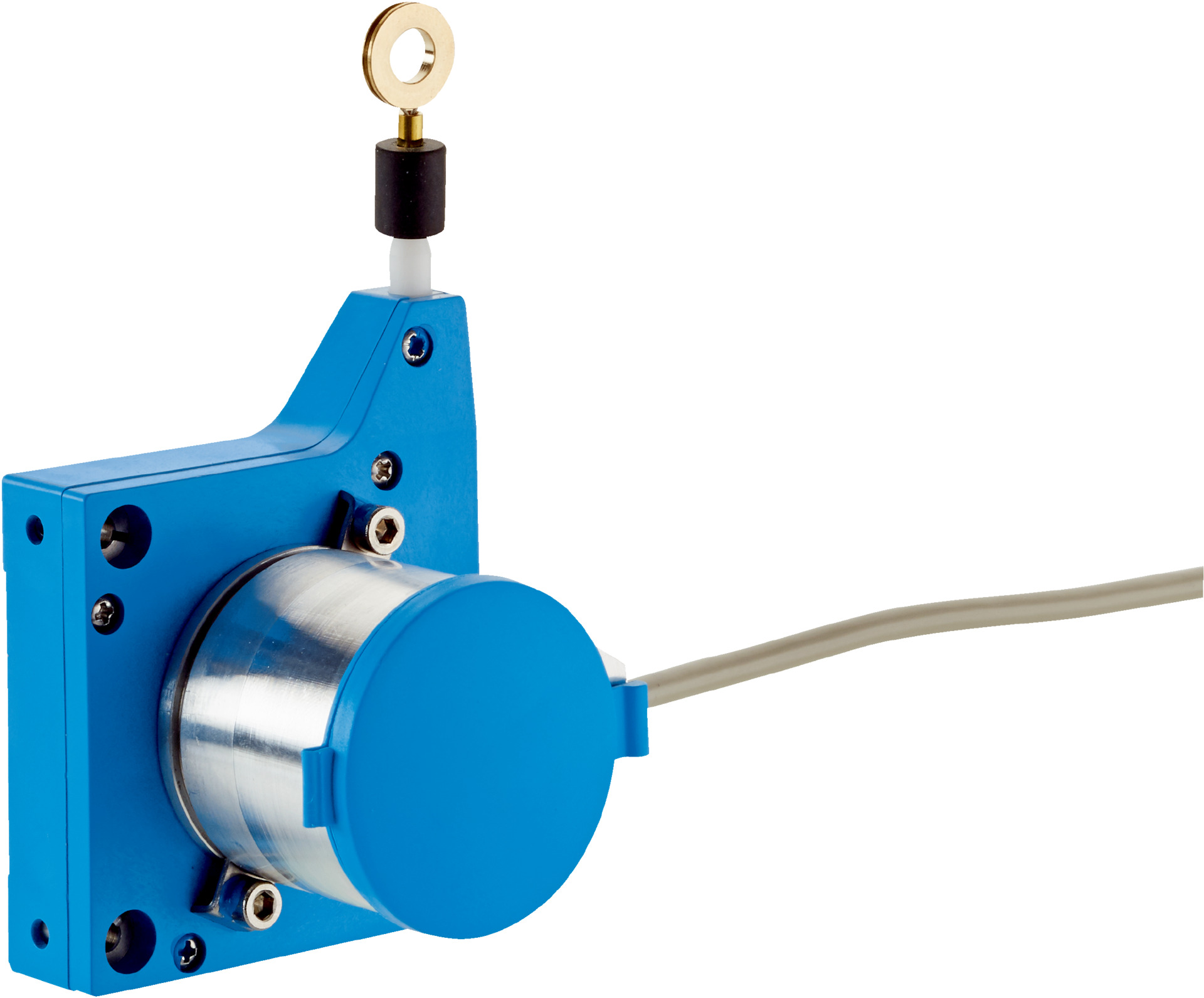

Wire Draw Encoder Sensor | 0.05 mm Resolution | IP50 Rated | 1.25 m Measurement Range | by SICK
The Wire Draw Encoder Sensor offers high measurement accuracy with a 0.05 mm resolution, making it ideal for industrial automation and safety-related applications. With a robust IP50-rated housing and a long wire draw length of 1.25 m, this sensor ensures reliable position measurement in machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 1.25 m
- Resolution: 0.05 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Analog / Current / 4...20 mA
- Connection type: Cable, radial, 1.5 m
- Supply voltage: 19 V DC to 33 V DC
- Operating current: ≤ 80 mA
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A/PA 12-sheathed
- Measuring wire diameter: 0.45 mm
- Spring return force: 1 N to 1.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Mounted encoder: ACM36 series
- Enclosure rating: IP50 (mechanic IP65)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 850 years (EN ISO 13849-1)
- Dimensions (H x L x W): 60mm x 120mm x 60mm
- Weight: 0.18 kg
Key Features
- High measurement accuracy with 0.05 mm resolution
- Robust plastic Noryl housing with IP50 rating
- Absolute encoder with analog 4...20 mA current interface
- Long wire draw length of 1.45 m with 1,000,000 cycle life
- Operating temperature range from -30 °C to +70 °C
- Spring return force between 1 N and 1.4 N
- EMC compliant to EN 61000-6-2 and EN 61000-6-4
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety sensor systems to ensure compliance and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with operating current ≤ 80 mA
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG05-K1KM01PP Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
