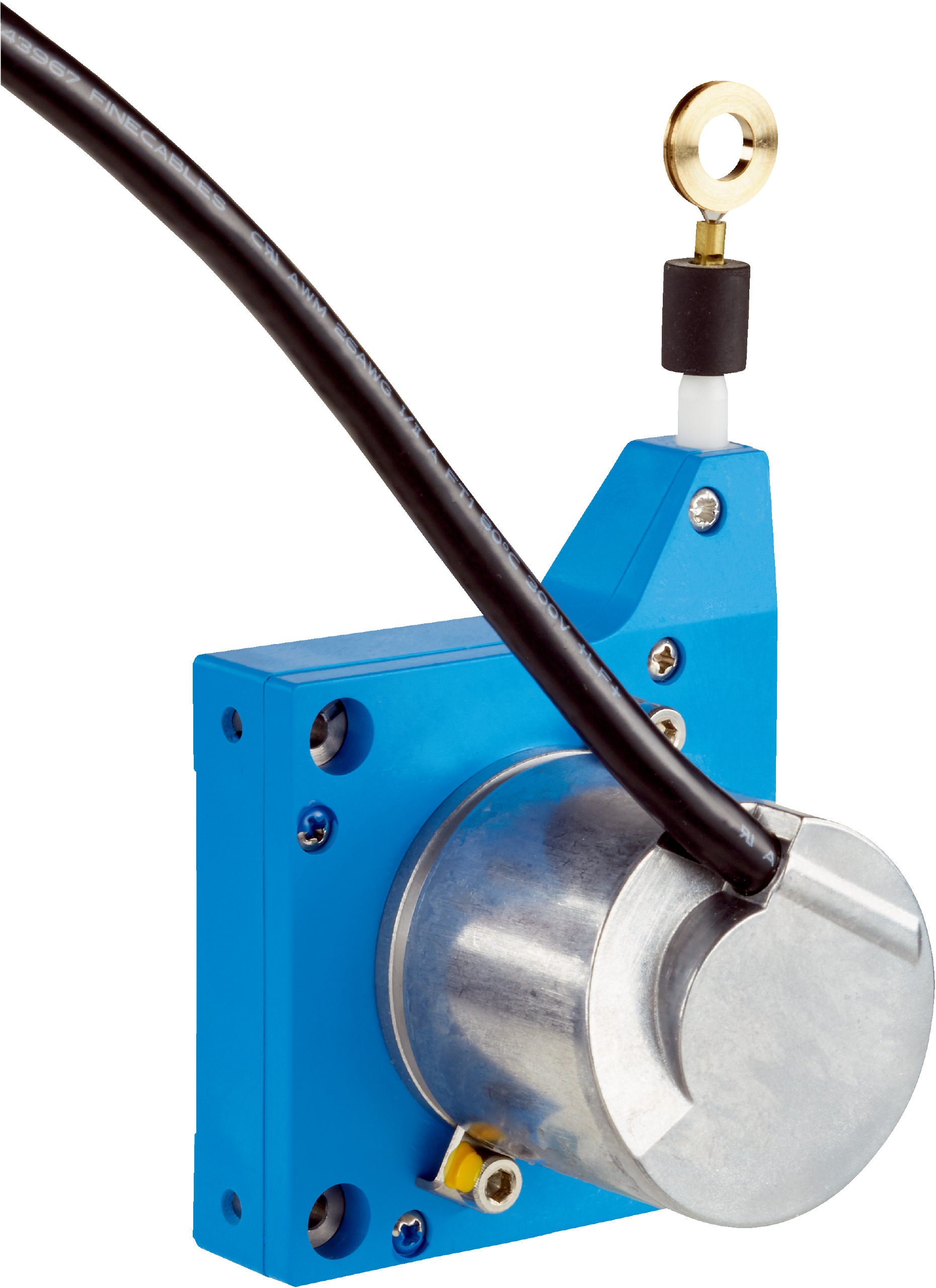

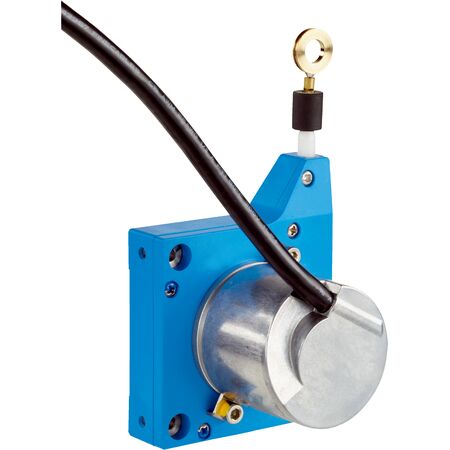

Wire Draw Encoder Sensor PFG05-E1KM0160 | 0.06 mm Resolution | IP50 & IP65 Rated | by SICK
The Wire Draw Encoder Sensor PFG05-E1KM0160 offers high measurement accuracy with a resolution of 0.06 mm, making it ideal for industrial automation and safety-related applications. With a robust Noryl housing and a long service life of up to 1,000,000 cycles, this sensor operates efficiently in temperatures ranging from -20 °C to +70 °C. Its low power consumption and reliable performance ensure precise length measurement in machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 1.25 m
- Resolution: 0.06 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / HTL / Push pull
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 7 V to 30 V
- Power consumption: ≤ 0.5 W (without load)
- Measuring wire diameter: 0.45 mm
- Spring return force: 1 N to 1.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP50, mounted mechanic IP65
- Operating temperature range: -20 °C to +70 °C
- MTTFD (mean time to dangerous failure): 600 years (EN ISO 13849-1)
- Dimensions (H x L x W): 50mm x 150mm x 50mm
- Weight: 0.23 kg
Key Features
- High measurement accuracy with resolution of 0.06 mm
- Robust plastic Noryl housing with stainless steel wire draw
- Long service life with up to 1,000,000 cycles
- Operating temperature range from -20 °C to +70 °C
- Low power consumption of ≤ 0.5 W
- IP50 enclosure rating, IP65 for mounted mechanic
- Incremental encoder with HTL / Push pull communication interface
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PFG05-E1KM0160 Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
