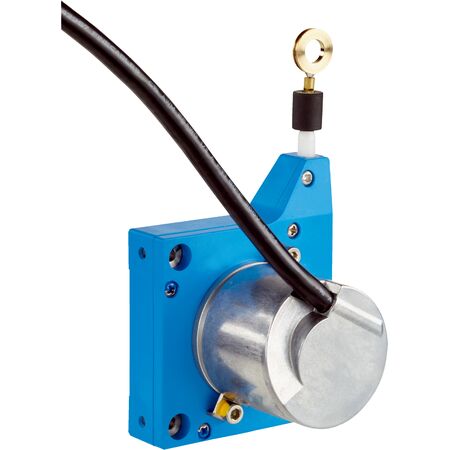

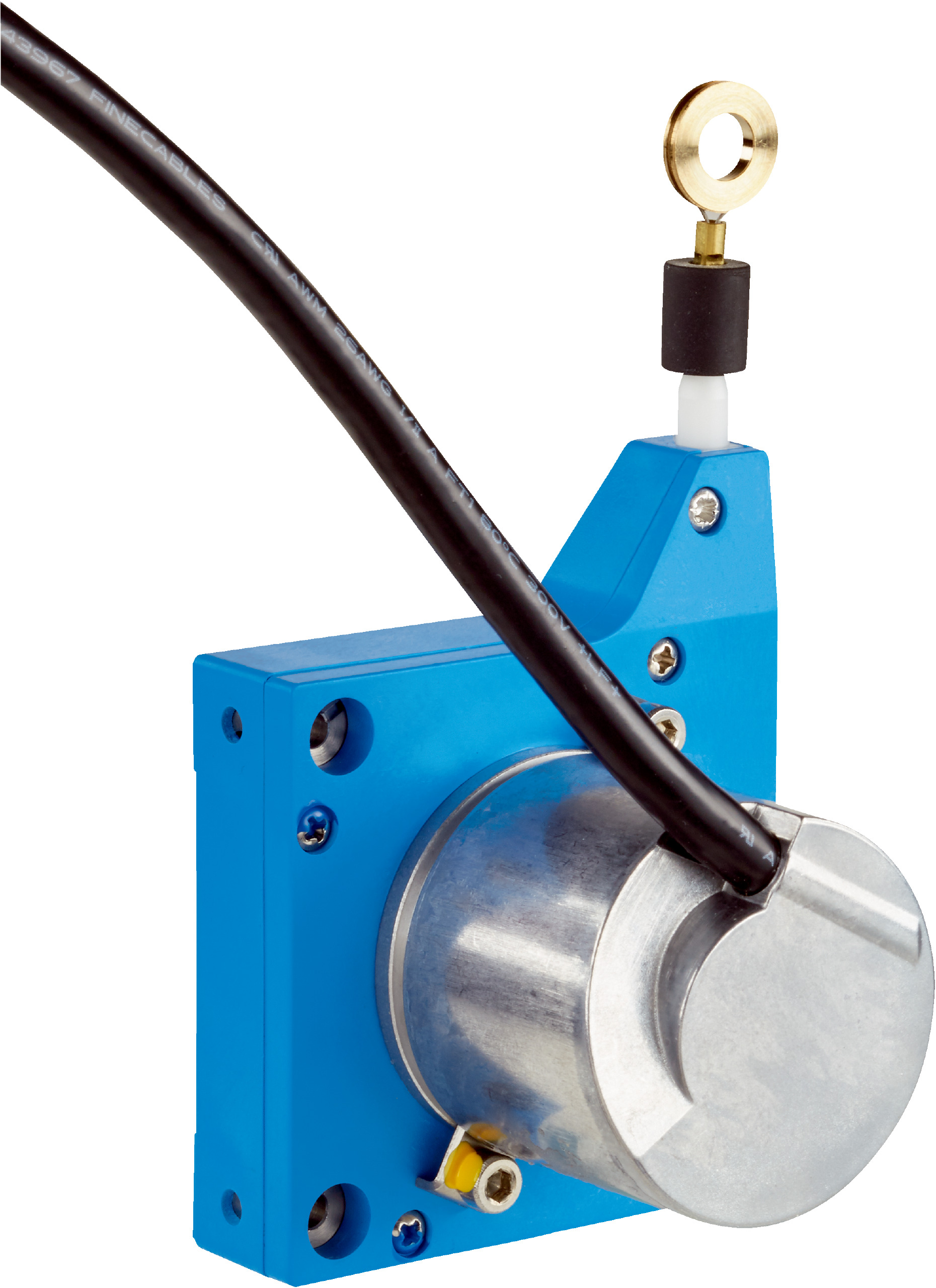

Wire Draw Encoder Sensor PFG05-A1PM0160 | 0.06 mm Resolution | IP50 Enclosure | by SICK
The Wire Draw Encoder Sensor PFG05-A1PM0160 offers high measurement accuracy with a resolution of 0.06 mm, making it ideal for industrial automation and safety-related applications. Designed for durability, it features a robust plastic Noryl housing and stainless steel wire, ensuring a long service life of up to 1,000,000 cycles. With an operating temperature range of -20 °C to +70 °C, this encoder is perfect for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 1.25 m
- Resolution: 0.06 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / TTL / RS-422
- Connection type: Cable, 8-wire, M12, 8-pin, 0.5 m length
- Supply voltage: 4.5 V to 5.5 V
- Operating current: ≤ 50 mA (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A) with PA 12 sheath
- Measuring wire diameter: 0.45 mm
- Spring return force: 1 N to 1.4 N
- Length of wire pulled out per revolution: 150 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Mounted encoder: DBS36 Core, DBS36E-SDAP02500
- Operating temperature range: -20 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP50 (mechanic IP65)
- Dimensions (H x L x W): 60mm x 120mm x 60mm
- Weight: 0.23 kg
Key Features
- High measurement accuracy with resolution of 0.06 mm
- Robust design with plastic Noryl housing and stainless steel wire
- Long service life with up to 1,000,000 cycles
- Operating temperature range from -20 °C to +70 °C
- IP50 enclosure rating, IP65 for mounted mechanic
- Incremental encoder with TTL/RS-422 communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and long service life reduce waste and replacement frequency
- Low operating current (≤ 50 mA) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PFG05-A1PM0160 Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety measurement applications.
