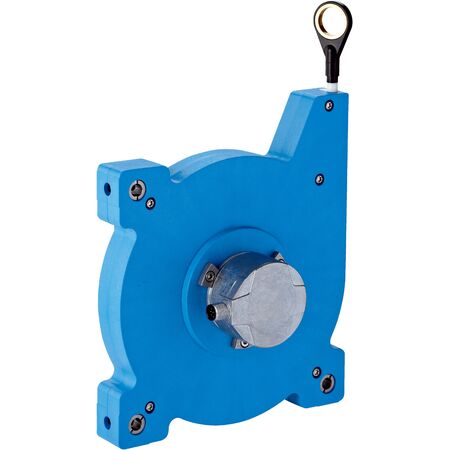

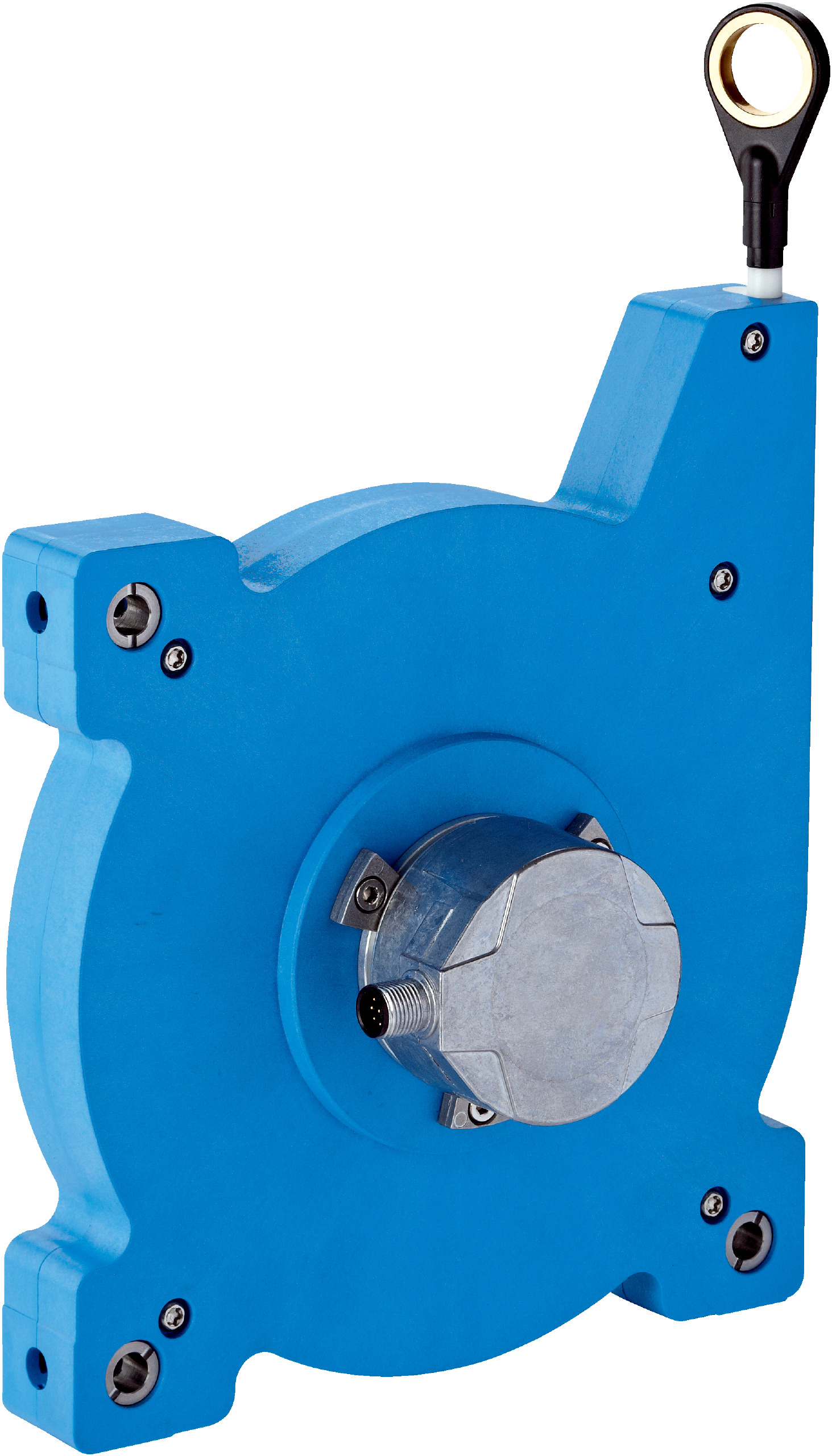

Wire Draw Encoder Sensor PFG19-E1CM1029 | 0-10m Measurement Range | 0.03mm Resolution | IP50/IP67 Rated | by SICK
The Wire Draw Encoder Sensor PFG19-E1CM1029 is designed for precise wire length measurement in industrial automation. With a measurement range of 0 m to 10 m and a high resolution of 0.03 mm, it ensures reliable feedback for safety-related applications. Built to withstand temperatures from -30 °C to +70 °C, this encoder features robust mechanics and low power consumption, making it ideal for manufacturing control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Measurement range: 0 m to 10 m
- Encoder type: Incremental encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / HTL / Push pull
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Mounted encoder: DFS60, DFS60A-S1EC16384
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP50, mounted mechanic IP67, Encoder IEC 60529
- Operating temperature range: –30 °C to +70 °C
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 2.2 kg
Key Features
- Measurement range of 0 m to 10 m
- High resolution of 0.03 mm with incremental encoders
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Robust mechanics with plastic Noryl housing and stainless steel measuring wire
- Operating temperature range from –30 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-4
- IP50 enclosure rating with IP67 for mounted mechanic and encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Measurement and control systems in manufacturing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 0.5 W reduces energy usage
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK PFG19-E1CM1029 Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
